Light Indicator NSN:6210-01-100-2692 P/N:351-27872-107
Regular price
$29.00

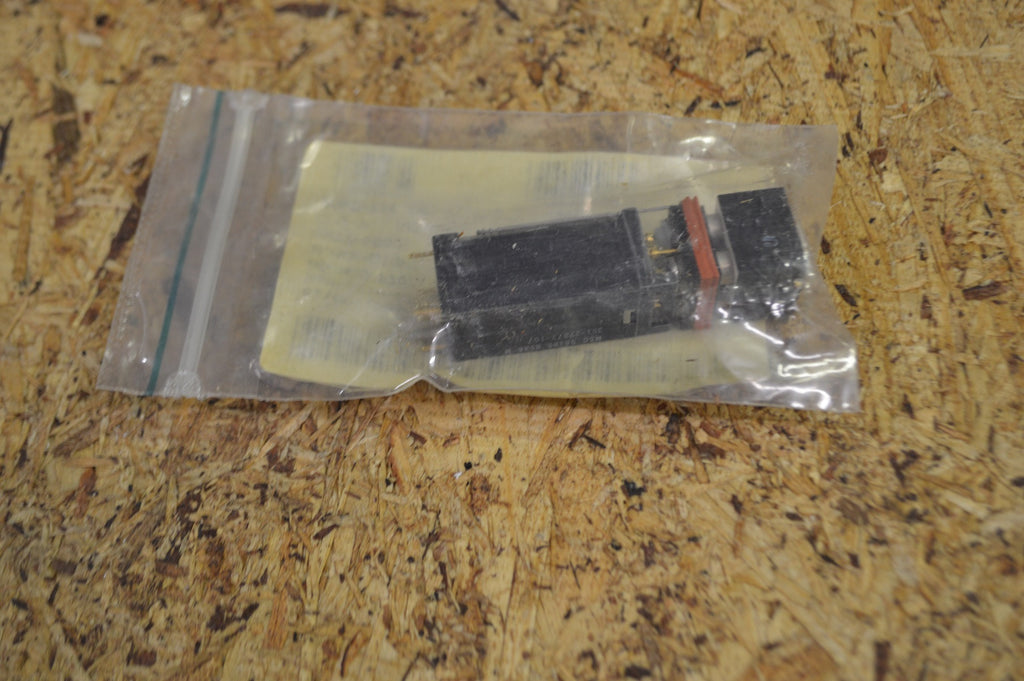

Light Indicator- A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. must include or provide for the use of a lens as a part of it. for items without a lens, see lampholder, and also see light (1), panel.
| Furnished Items And Quantity: | 2 dummy plug and 1 seal |
| Filter Color: | White single light 1st position horizontal full display division a and colorless single light 1st position horizontal full display division a and green single light 1st position horizontal full display division a |
| Filter Quantity: | 3 |
| Hazardous Locations/environmental Protection: | Dripproof and moisture proof and shock resistant |
| Material: | Plastic body |
| Mounting Method: | Rack |
| Multilamp Circuit Type: | Four lamp common |
| Overall Height: | 0.725 inches minimum and 0.755 inches maximum |
| Lamp Base Type Accommodated: | Midget flanged |
| Lamp Bulb Size Designator: | T-1 3/4 |
| Lamp Industry Number: | 387 |
| Lamp Type Accommodated And Quantity: | 2 incandescent |
| Lens Back Surface Condition: | Smooth single light 1st position horizontal |
| Lens Color: | Colorless single light 1st position horizontal |
| Lens Face Surface Condition: | Smooth single light 1st position horizontal |
| Lens Legend: | Control;power;on single light 1st position horizontal full display division a |
| Lens Light Transmission Characteristic: | Transparent single light 1st position horizontal |
| Lens Mounting Method: | Push in |
| Lens Quantity: | 1 |
| Lens Type: | Display screen single light 1st position horizontal |
| Overall Length: | 3.060 inches maximum |
| Overall Width: | 0.725 inches minimum and 0.755 inches maximum |
| Style Designator: | Rectangular frame type |
| Terminal Type And Quantity: | 6 quick disconnect, male |
| Transmitted Legend Color: | Black single light 1st position horizontal full display division a |
| Transmitted Light Color: | Green single light 1st position horizontal full display division a |
