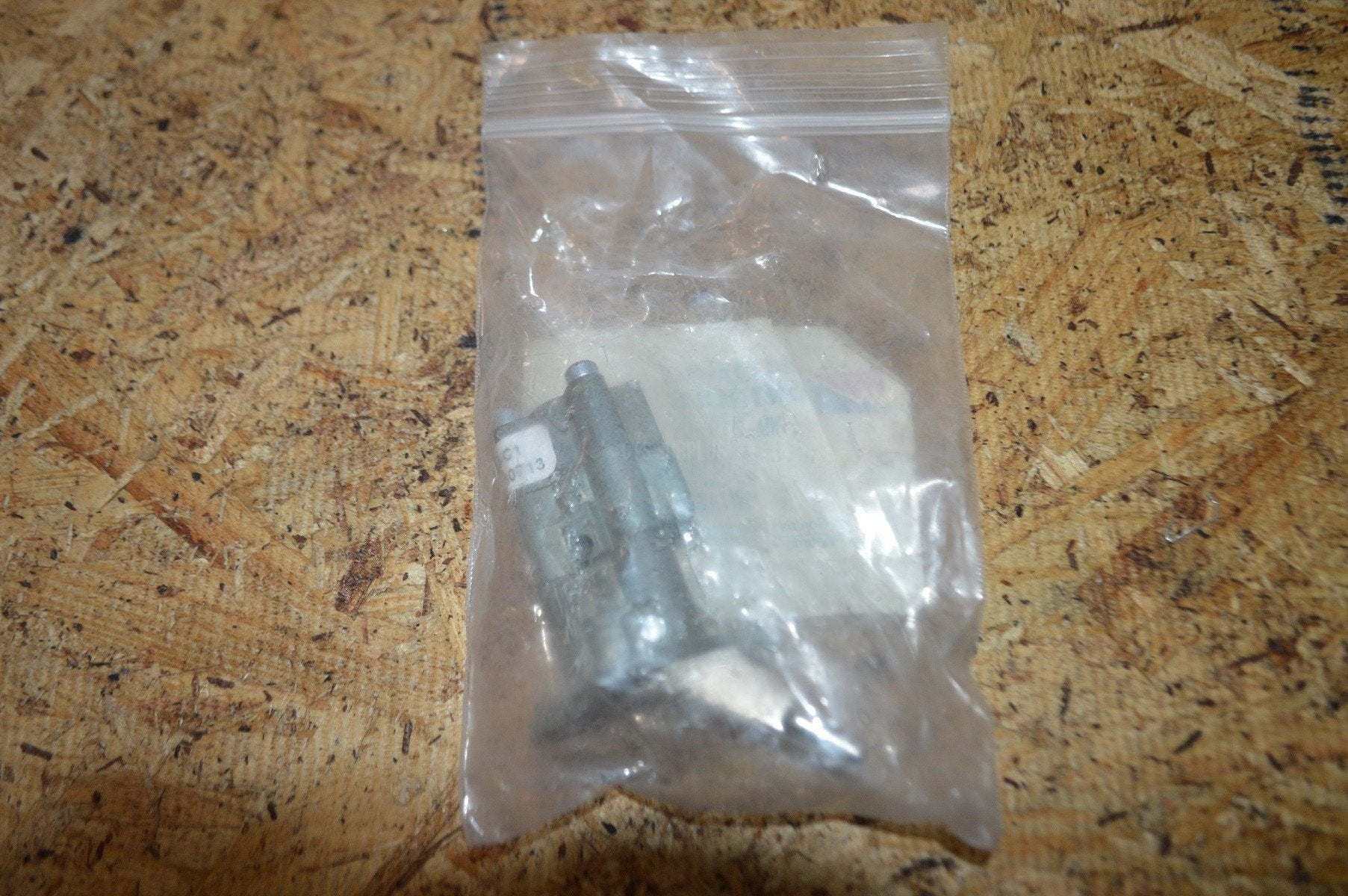

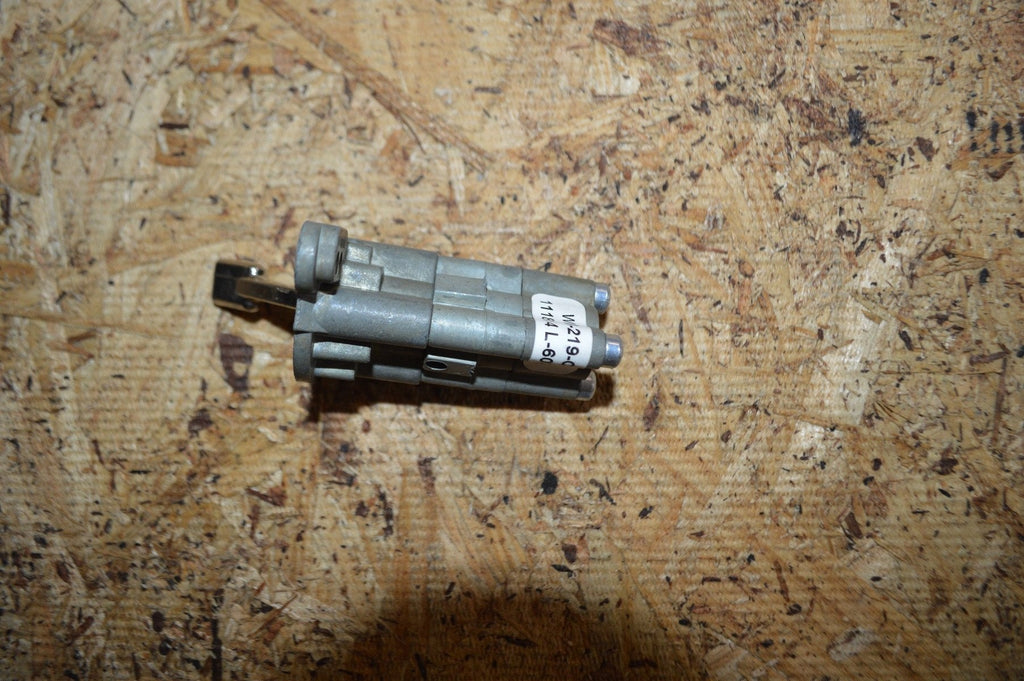

.125" Angle Valve NSN:4820-01-215-7936 P/N:111814
Please fill out the form below for a price quote and availability on this item.
Angle Valve- A valve with one inlet and one outlet connection with outlet flow at an angle to inlet flow. the flow is controlled by the action of a stem which lifts disks perpendicularly off the center axis of its seat. it may be inline or cartridge (manifold) design. excludes valve (1), y; valve, stop-check; and cock, shutoff, screw stem.
| Bonnet Attachment Method: | Bolted |
| Bonnet Type: | Inside screw |
| Connection Style: | Plain,optional end(pipe) all ends |
| Connection Type: | Threaded internal pipe all ends |
| Flow Control Device: | Poppet |
| Material: | Zinc alloy body |
| Maximum Operating Temp: | 200.0 deg fahrenheit single response |
| Mounting Facility: | Threaded fastener |
| Nominal Thread Size: | 0.125 inches all ends |
| Style Designator: | "y" angle |
| Thread Direction: | Right-hand all ends |
| Thread Series Designator: | Nptf all ends |
| Valve Operation Method: | Manual |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
