(30) Tyco 640427-2 Electrical Plug Connector NSN:5935-01-298-7906

Please fill out the form below for a price quote and availability on this item.

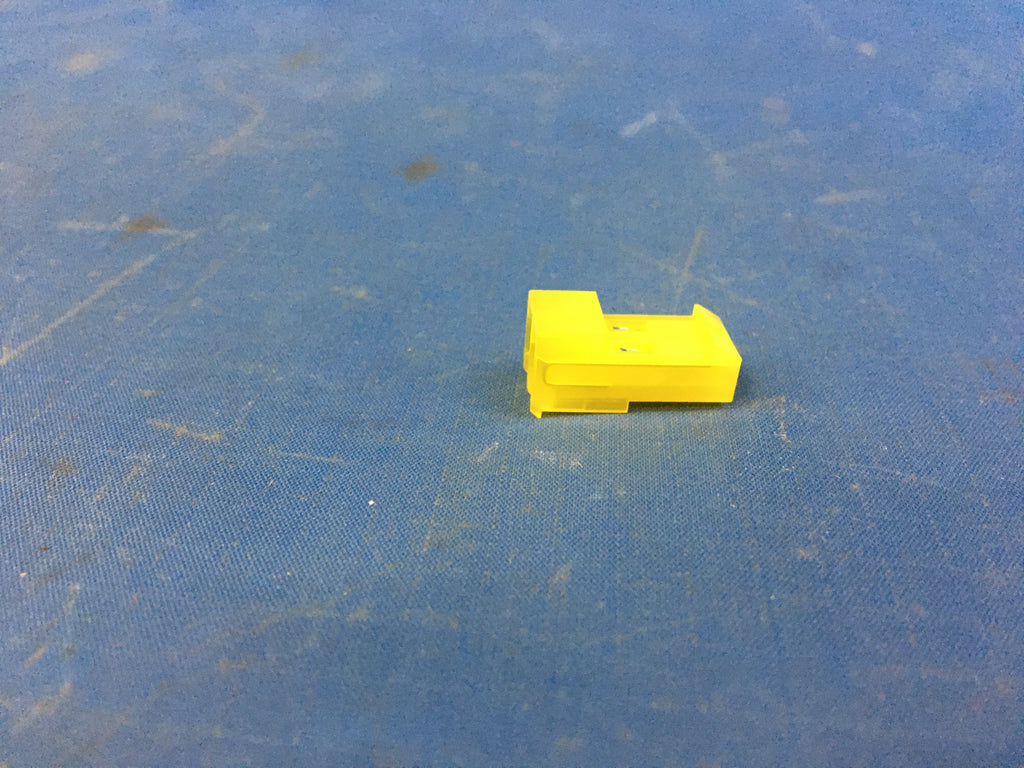

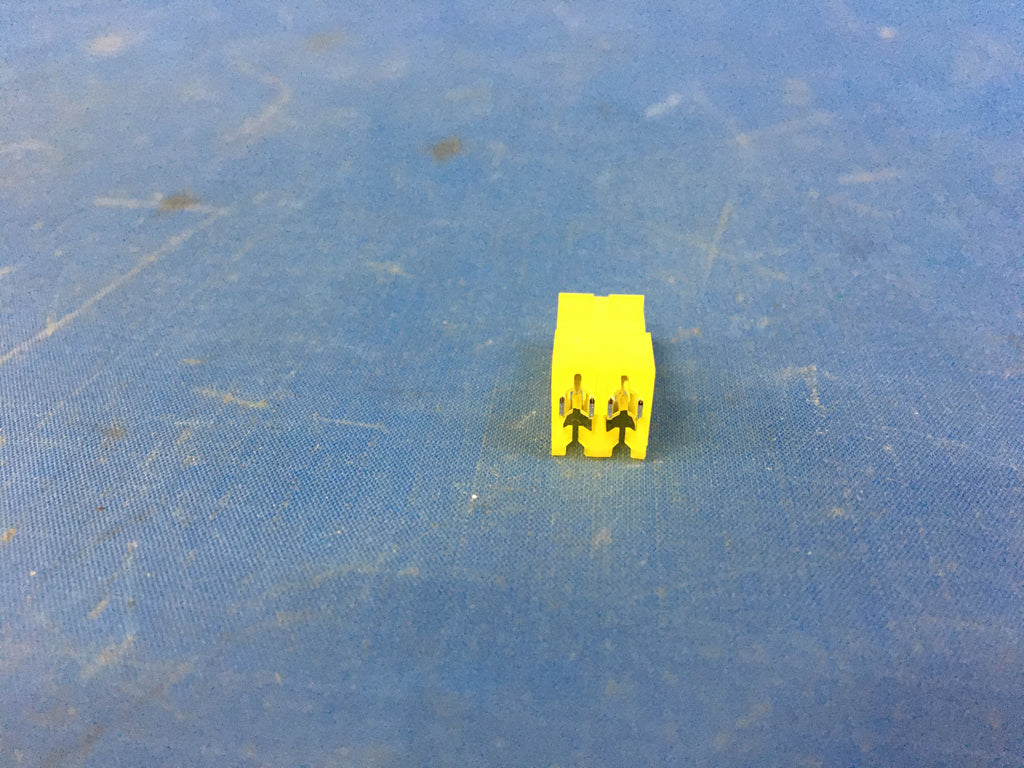

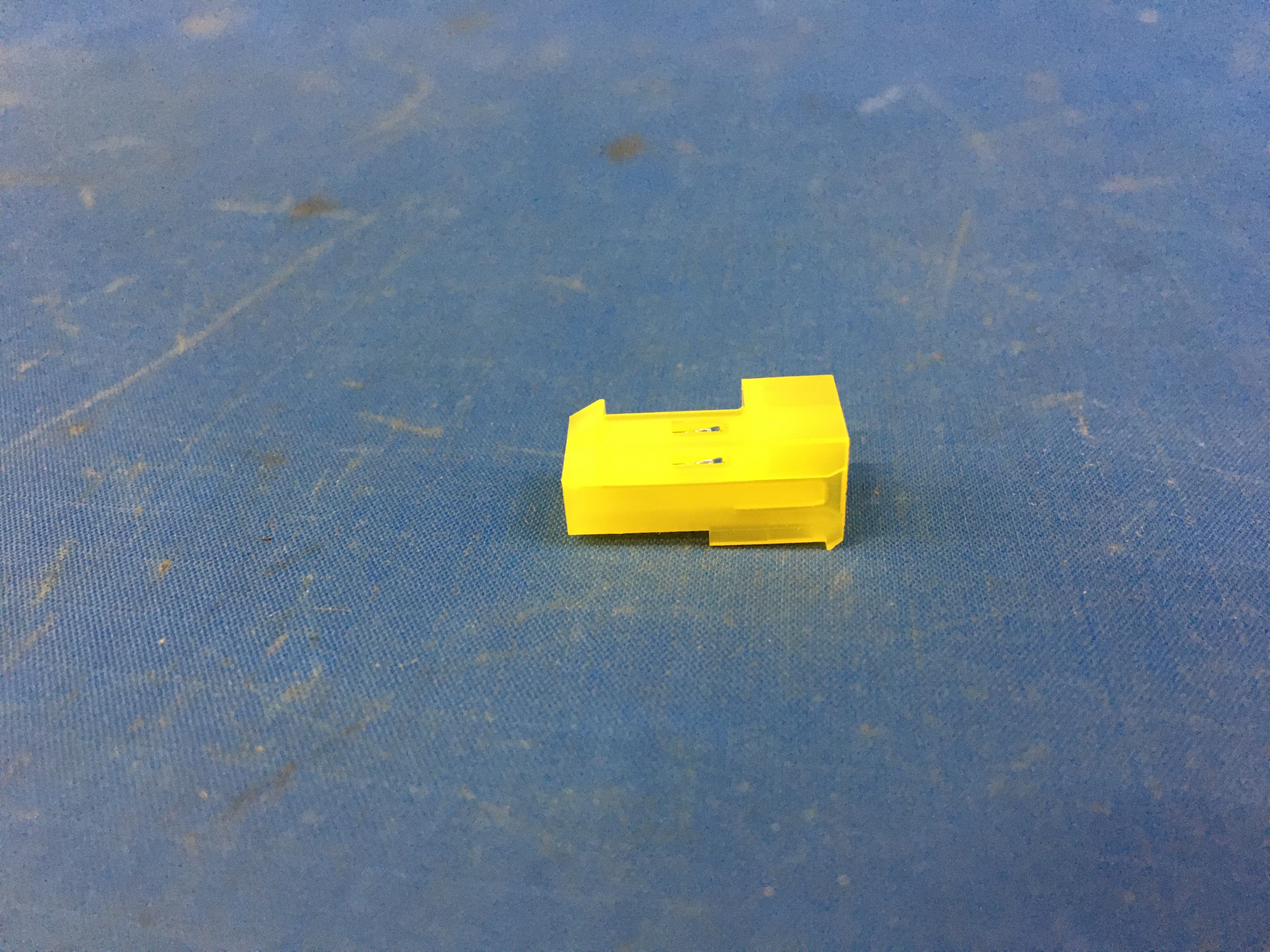

Electrical Plug Connector

NSN: 5935-01-298-7906 | Model: 640427-2
ITAR Registered seal

An electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connecto (s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. Excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified); and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified); and cable assembly (as modified) . for items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-01-298-7906
DEMIL
Yes - ITAR Controlled
Body Style
Angle shape
Overall Length
0.312 inches
Overall Height
0.355 inches
Overall Width
0.725 inches
Mating End Quantity
1
Contact Position Arrangement Style
1 row of contacts non-inserted board single mating end
Contact Removability
Removable single mating end single contact grouping
Connector Locking Method
Latch
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Tin single mating end single contact grouping
Insert Material
Plastic single mating end
Terminal Type
Crimp single mating end single contact grouping
Included Contact Quantity
2 single mating end single contact grouping
Included Contact Type
Round socket single mating end single contact grouping

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
