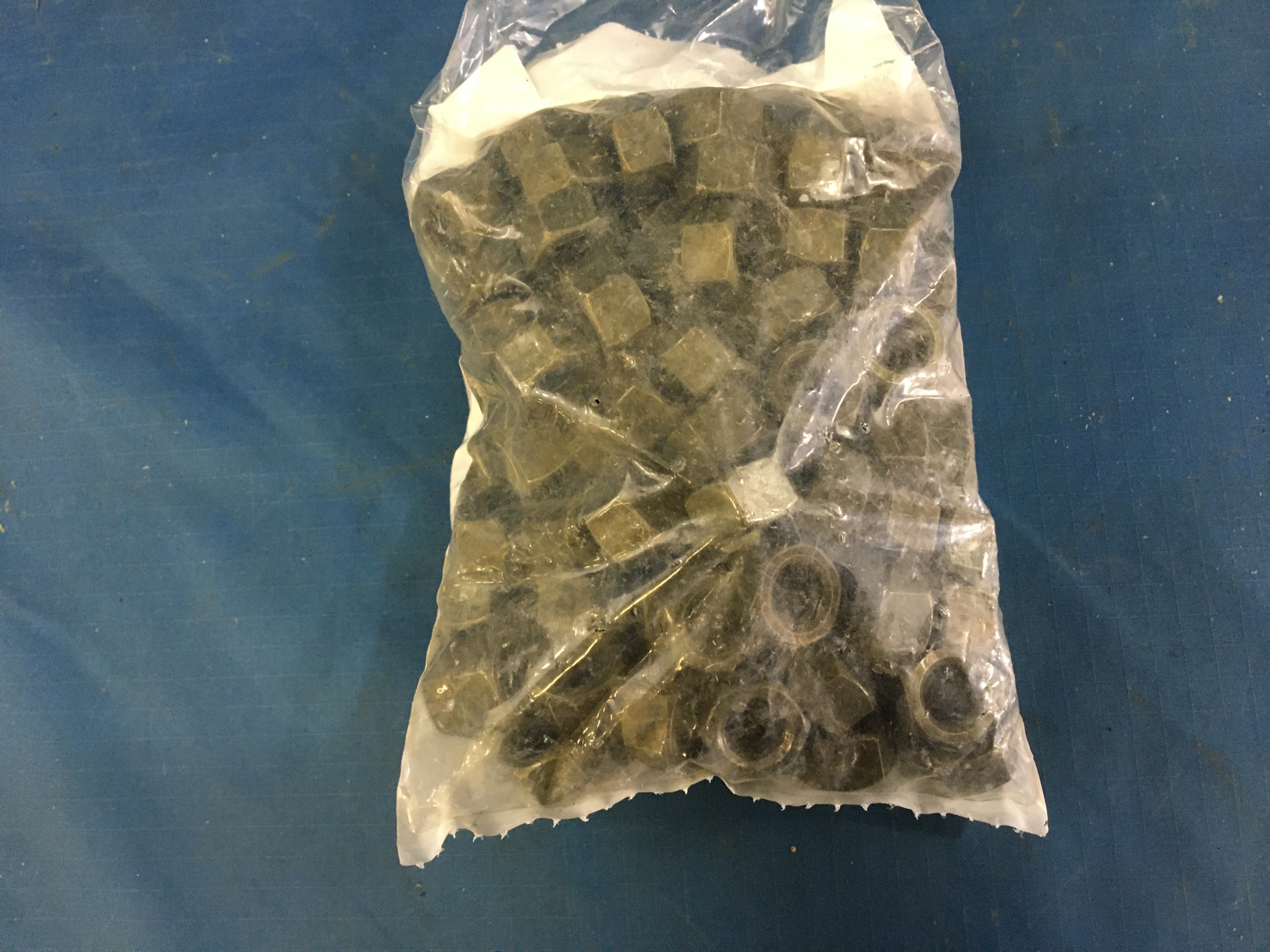

(100) U.S Army Tank Automotive Command 12387305-9 Hexagon Plain Nut NSN:5310-01-378-8180

Please fill out the form below for a price quote and availability on this item.

Hexagon Plain Nut

NSN:5310-01-378-8180 | Model:12387305-9
ITAR Registered seal

A nut, flat on top and bottom having 6 flat sides. For items which have internal tapered or straight (parallel) pipe threads, specific electrical conduit size designation, and which when installed, provide a method of tightening to lock the connection, see locknut, electrical conduit. See also locknut, tube fitting. For items having a thickness (or height) exceeding two times the width across the flats, use post, electrical-mechanical equipment. (when height or thickness and/or width across the flats is designated as a tolerance dimension, the dimension will be used to determine compliance.)

NSN Properties and Flags
NATO Stock Number
5310-01-378-8180
DEMIL
NO
Thread Class
2b
Thread Direction
Right-hand
Nut Style
Hexagon
Nut Height
Between 0.320 inches and 0.337 inches
End Application
Mrap - m-atv with cs13 pop and sne
Width Across Flats
Between 0.551 inches and 0.562 inches
Thread Series
Unc
Thready Qty Per Inch (tpi)
16
Thread Size
0.375 inches
Bearing Surface Type
Chamfered or washer faced
Special Features
Finish color bronze or olive drab
Material
Steel
Surface Treatment
Zinc and chromate
Surface Treatment Specification
Astmb633, type 2, class 3 assn standard single treatment response
Nondefinitive Specification/std Data
2 type and 4 style



This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
