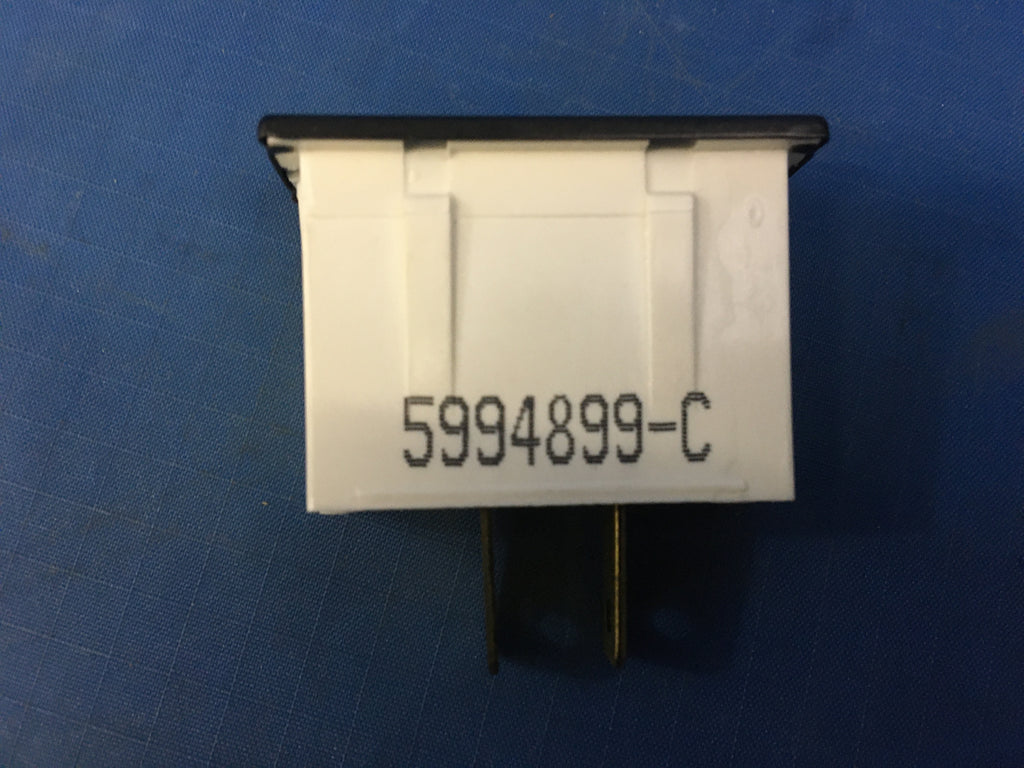

Am General 5994899 Ether Indicator Light NSN:6210-01-171-3209
Please fill out the form below for a price quote and availability on this item.
Indicator Light

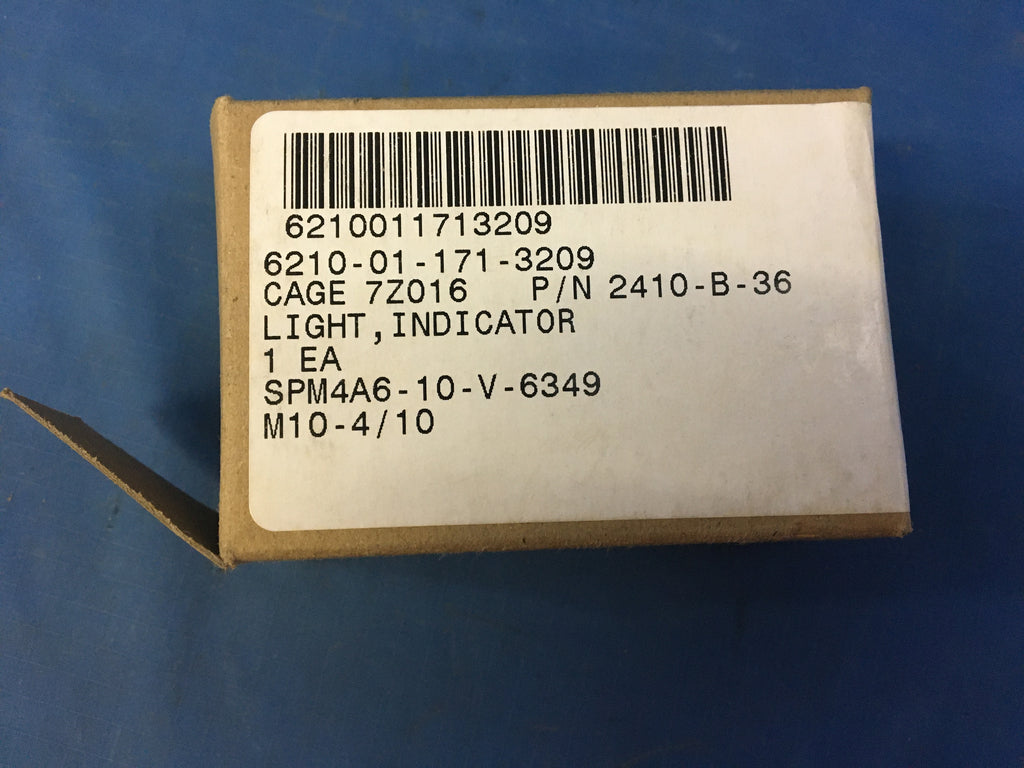

NSN:6210-01-171-3209 Model:5994899 P/N:2410-B-36
A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. Must include or provide for the use of a lens as a part of it. For items without a lens, see lampholder, and also see light (1), panel.
NSN Properties and Flags
NATO Stock Number
6210-01-171-3209
DEMIL
Yes - ITAR Controlled
Lamp Base Type Accommodated
Wire terminals, down
Lamp Bulb Size Designator
T-1 3/4
Lens Quantity
1
Lens Color
White single light 1st position horizontal
Lamp Industry Number
2162
Mounting Method
Panel
Lamp Type Accommodated And Quantity
1 incandescent
Lens Type
Flat, rectangular single light 1st position horizontal
Lens Light Transmission Characteristic
Opaque single light 1st position horizontal
Transmitted Legend Color
Blue single light 1st position horizontal full display division a

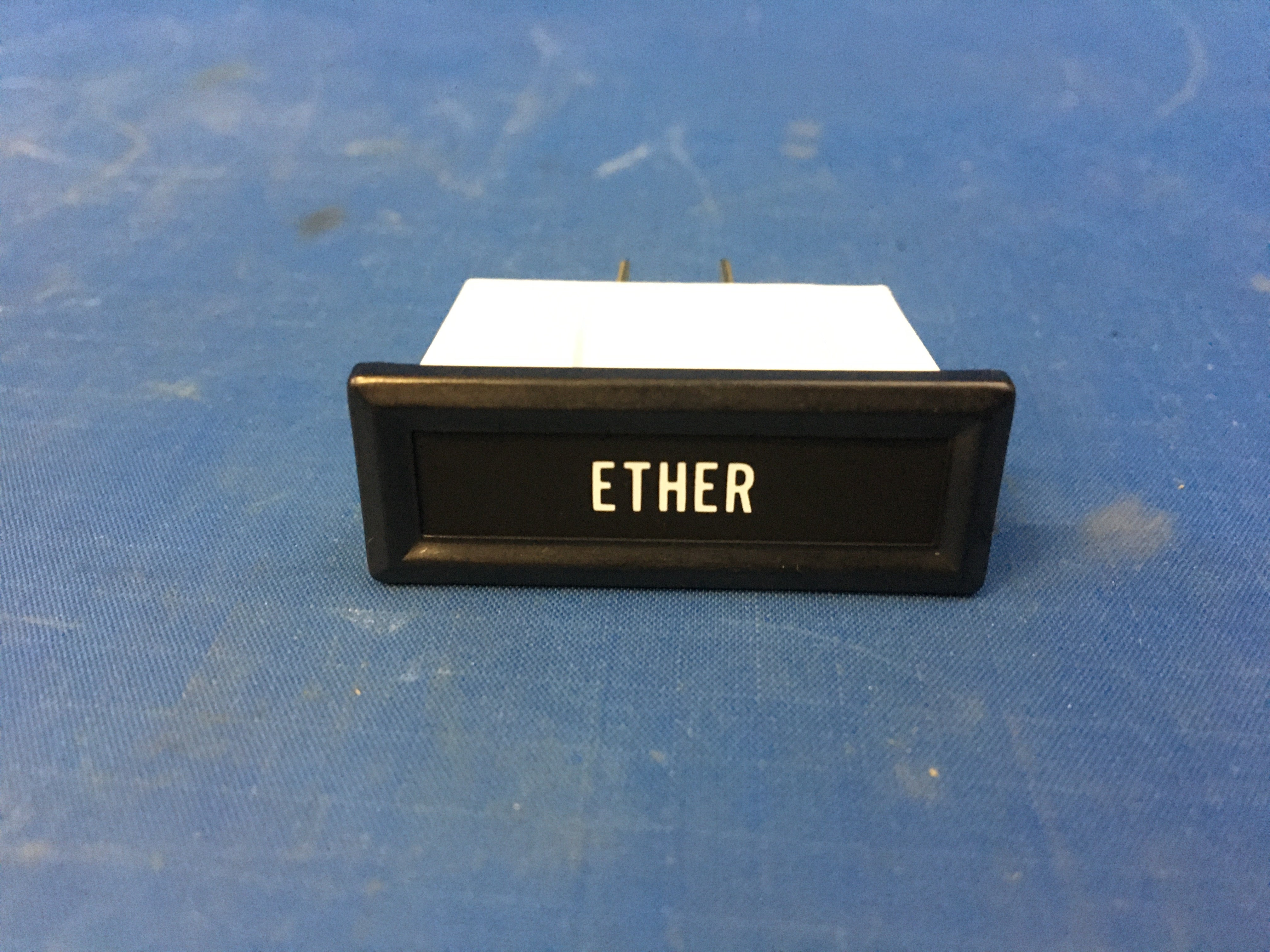

Lens Legend
Ether single light 1st position horizontal full display division a
Transmitted Light Color
Black single light 1st position horizontal full display division a
Lens Back Surface Condition
Painted single light 1st position horizontal
Lens Face Surface Condition
Painted single light 1st position horizontal
Material
Plastic polyamide body
Style Designator
Rectangular frame type

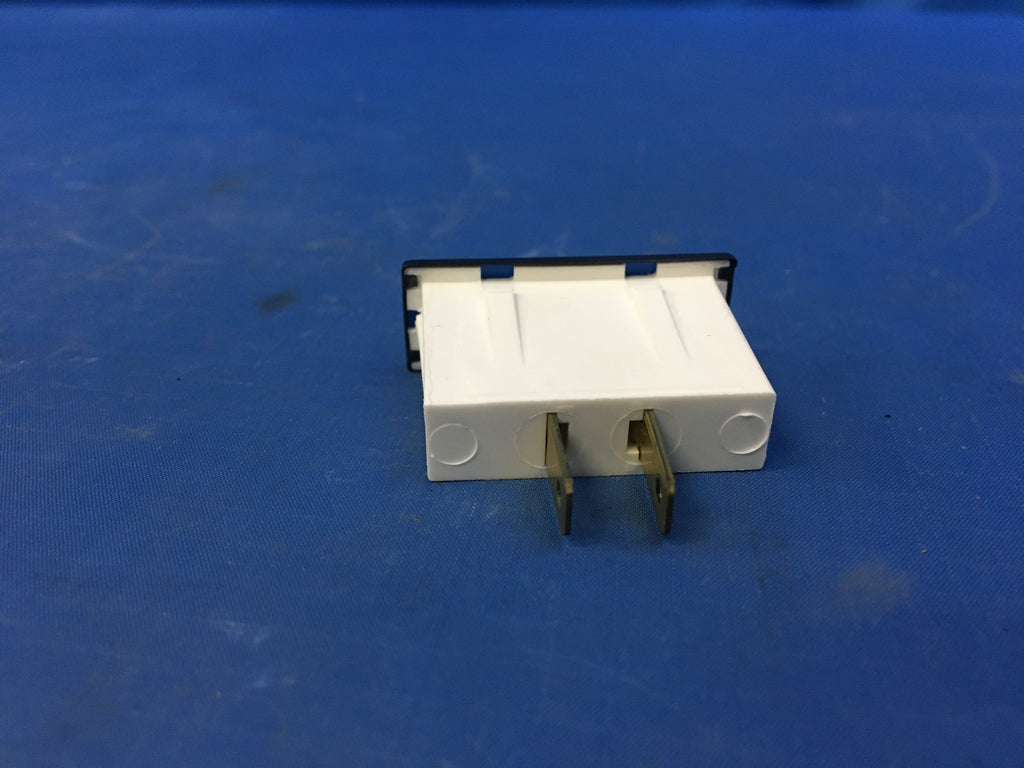

Terminal Type And Quantity
2 quick disconnect, male
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
