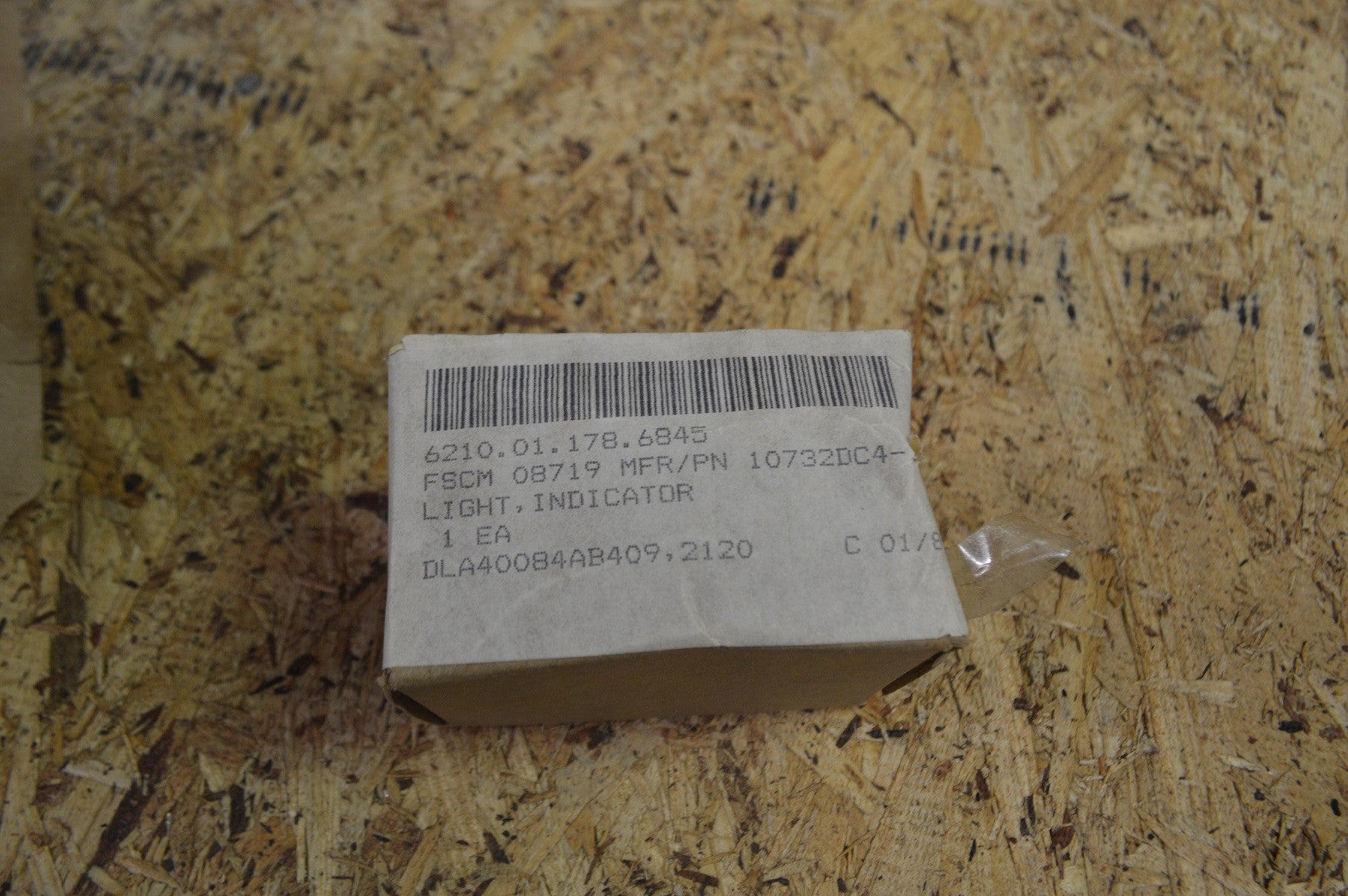

Indicator Light NSN:6210-01-178-6845 P/N:10732DC4-103
Please fill out the form below for a price quote and availability on this item.
Indicator Light- A light, with mounting facilities furnished, designed to convey information of a specific nature concerning the circuit in which inserted. must include or provide for the use of a lens as a part of it. for items without a lens, see lampholder, and also see light (1), panel.
| Filter Color: | Yellow, aviation, mil-c-25050 type 1 single light 1st position horizontal full display division a |
| Filter Quantity: | 1 |
| Hazardous Locations/environmental Protection: | Electromagnetic radiation suppressive |
| Material: | Steel corrosion resisting body |
| Mounting Method: | Panel |
| Multilamp Circuit Type: | Two lamp common |
| Overall Height: | 0.437 inches nominal |
| Overall Length: | 1.500 inches maximum |
| Lamp Base Type Accommodated: | Midget flanged |
| Lamp Bulb Size Designator: | T-1 3/4 |
| Lamp Type Accommodated And Quantity: | 2 incandescent |
| Lens Back Surface Condition: | Painted single light 1st position horizontal |
| Lens Color: | Colorless single light 1st position horizontal |
| Lens Face Surface Condition: | Smooth single light 1st position horizontal |
| Lens Legend: | Bingo single light 1st position horizontal full display division a |
| Lens Light Transmission Characteristic: | Transparent single light 1st position horizontal |
| Lens Mounting Method: | Push in |
| Lens Quantity: | 1 |
| Lens Type: | Flat, square shank single light 1st position horizontal |
| Overall Width: | 0.688 inches nominal |
| Panel Accommodation Hole Height: | 0.445 inches nominal |
| Panel Accommodation Hole Width: | 0.695 inches nominal |
| Style Designator: | Rectangular frame type |
| Surface Treatment: | Passivate body |
| Terminal Type And Quantity: | 3 solder lug |
| Transmitted Legend Color: | Yellow, aviation, mil-c-25050 type 1 single light 1st position horizontal full display division a |
| Transmitted Light Color: | Black single light 1st position horizontal full display division a |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
