Deltrol Corp

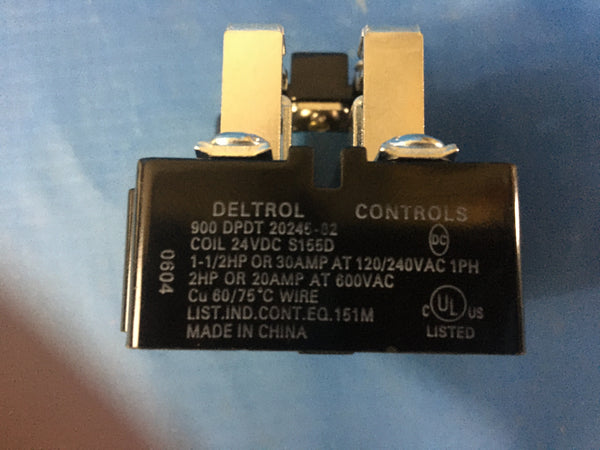

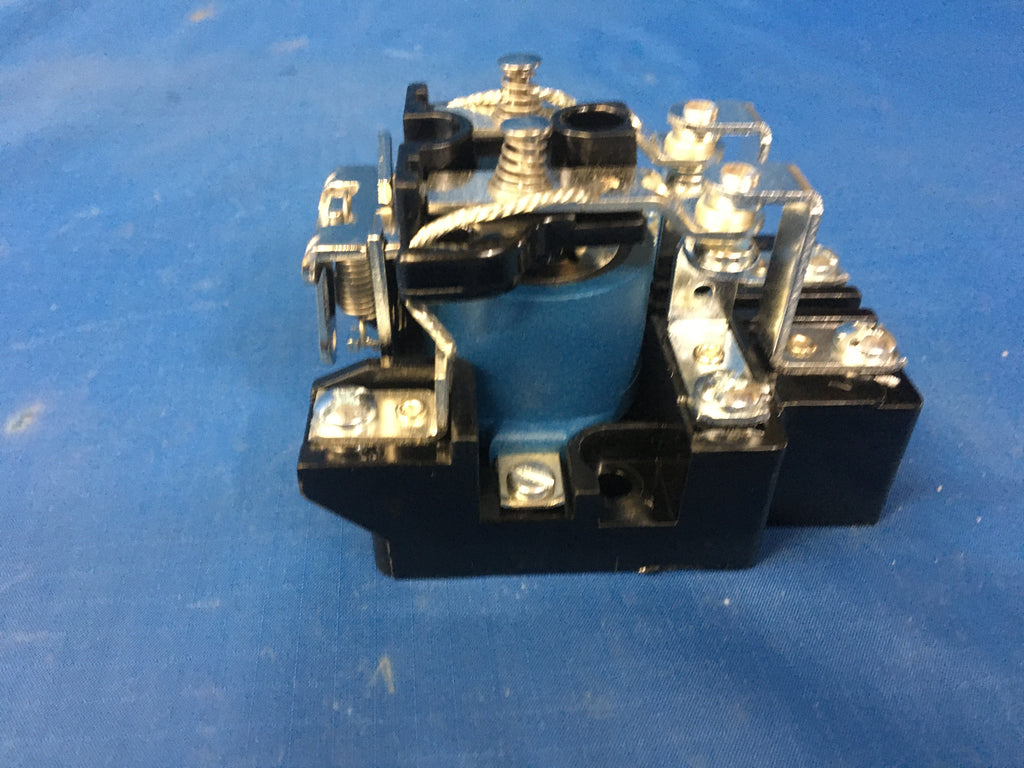

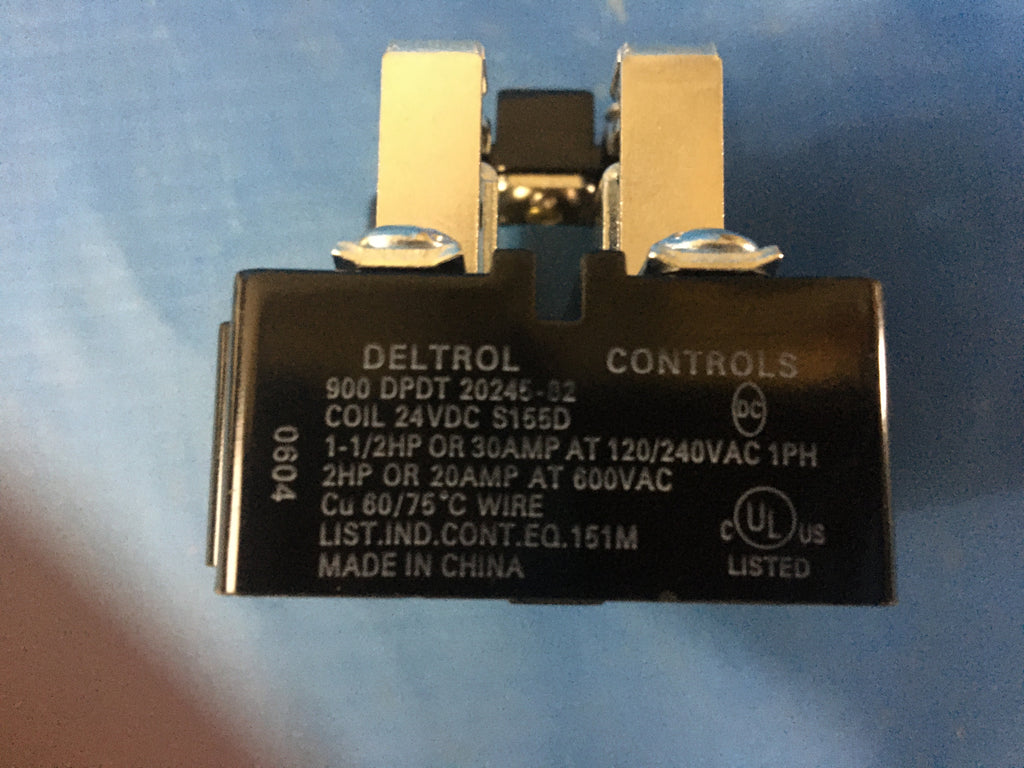

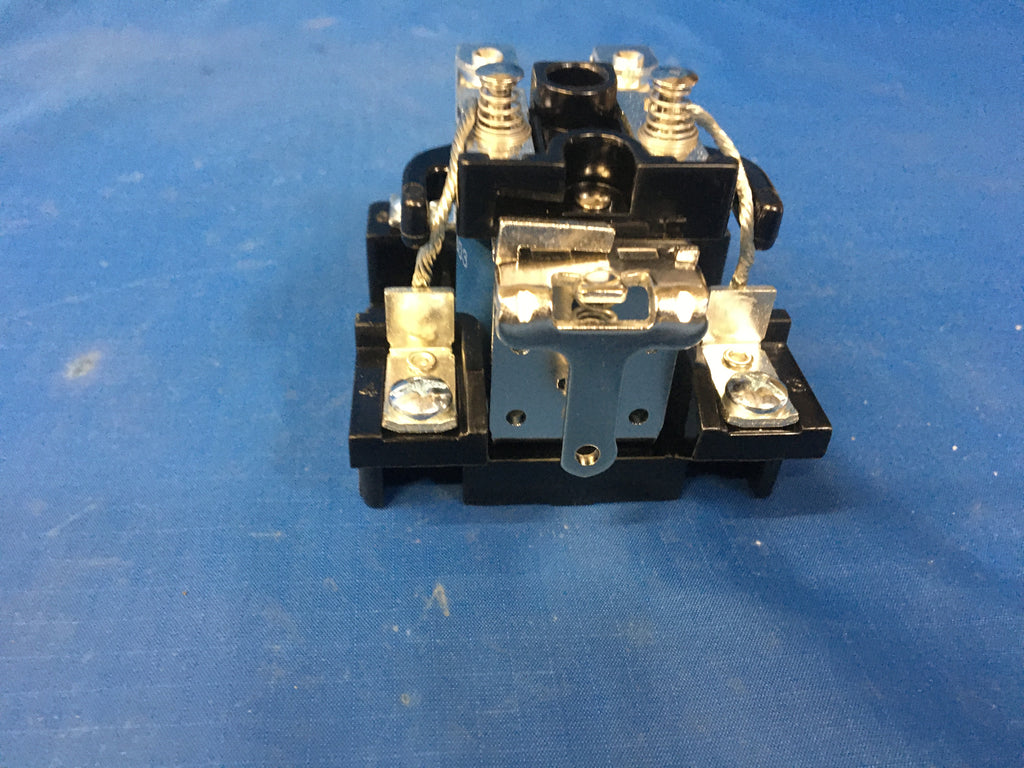

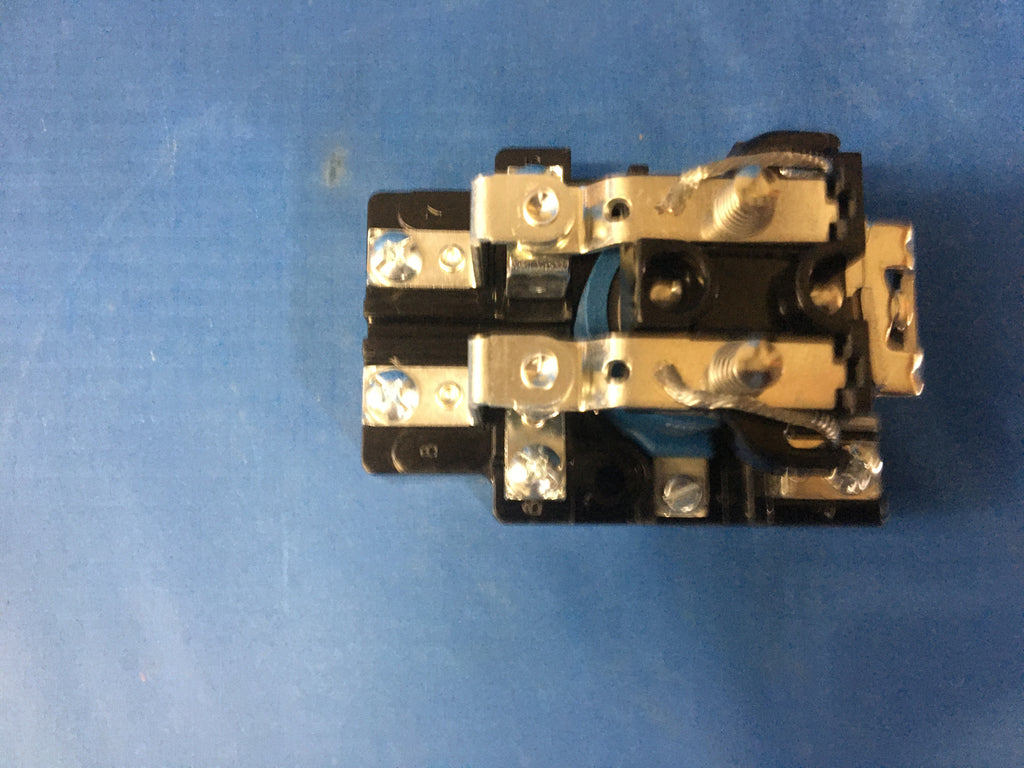

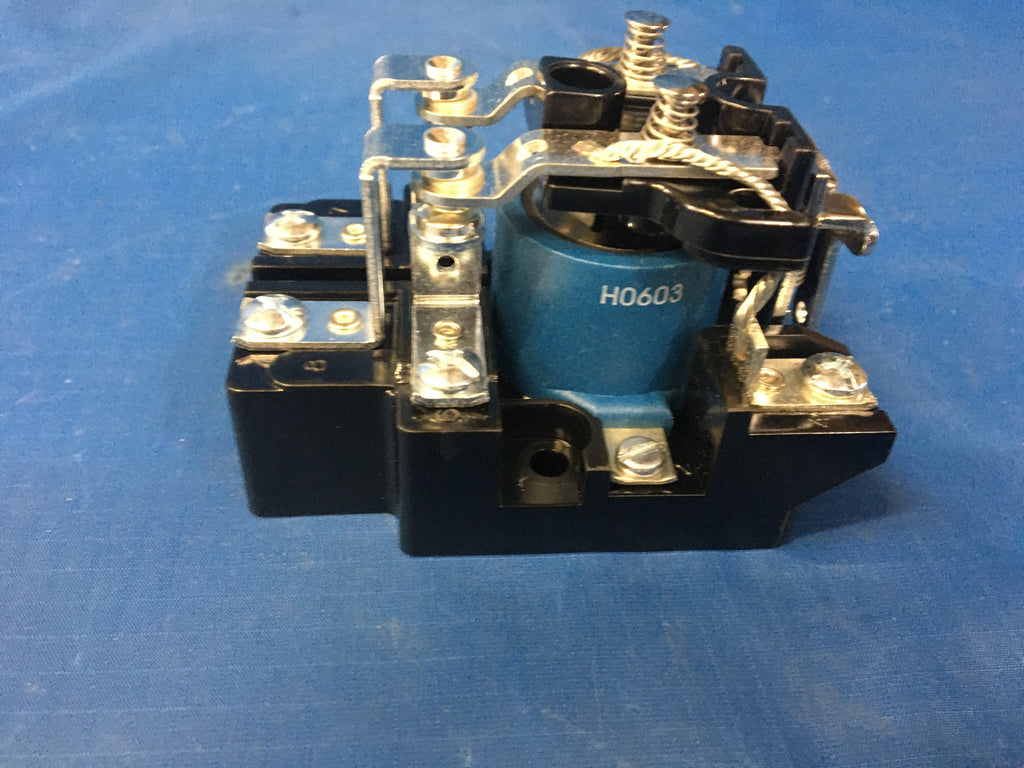

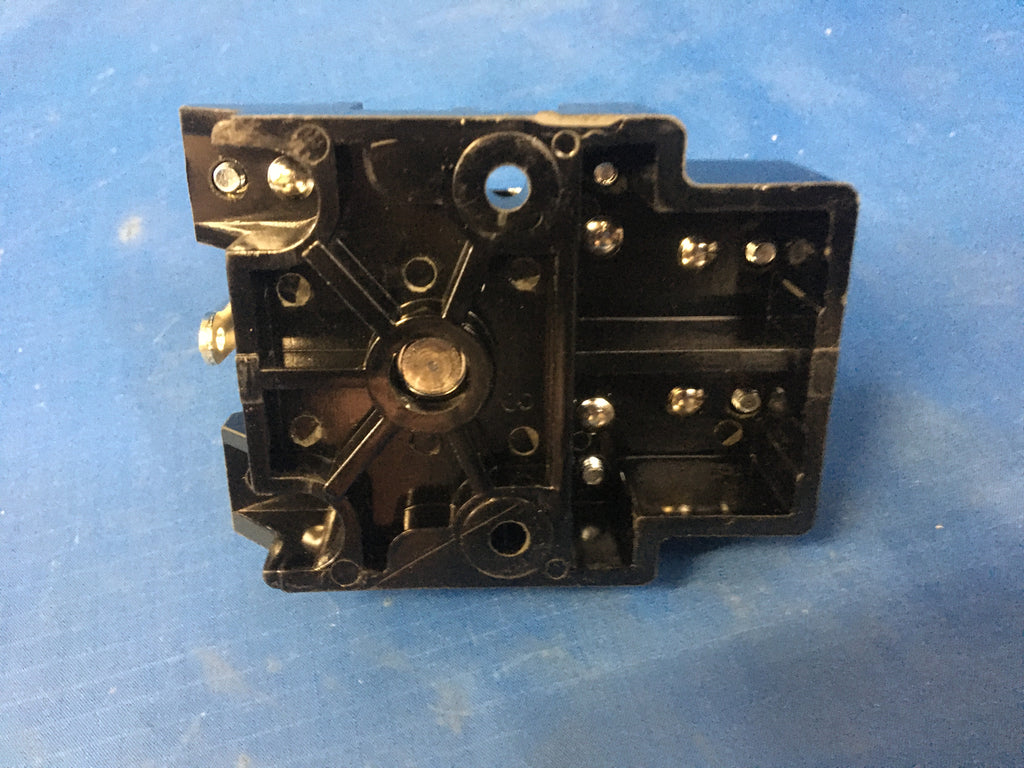

Deltrol Corp Electromagnetic Relay NSN:5945-01-108-8423 Model:20245-82
Regular price
$31.99
Electromagnetic Relay
NSN: 5945-01-108-8423 | Model: 20245-82A relay which is actuated by the effect of a magnetic field developed by the current in its energizing coi (s) . Includes solenoid and armature types. Excludes contactor, magnetic; relay, meter movement; relay, motor driven; relay, reed; relay, resonant reed; relay, rotary; and switch, stepping.
NSN Properties and Flags

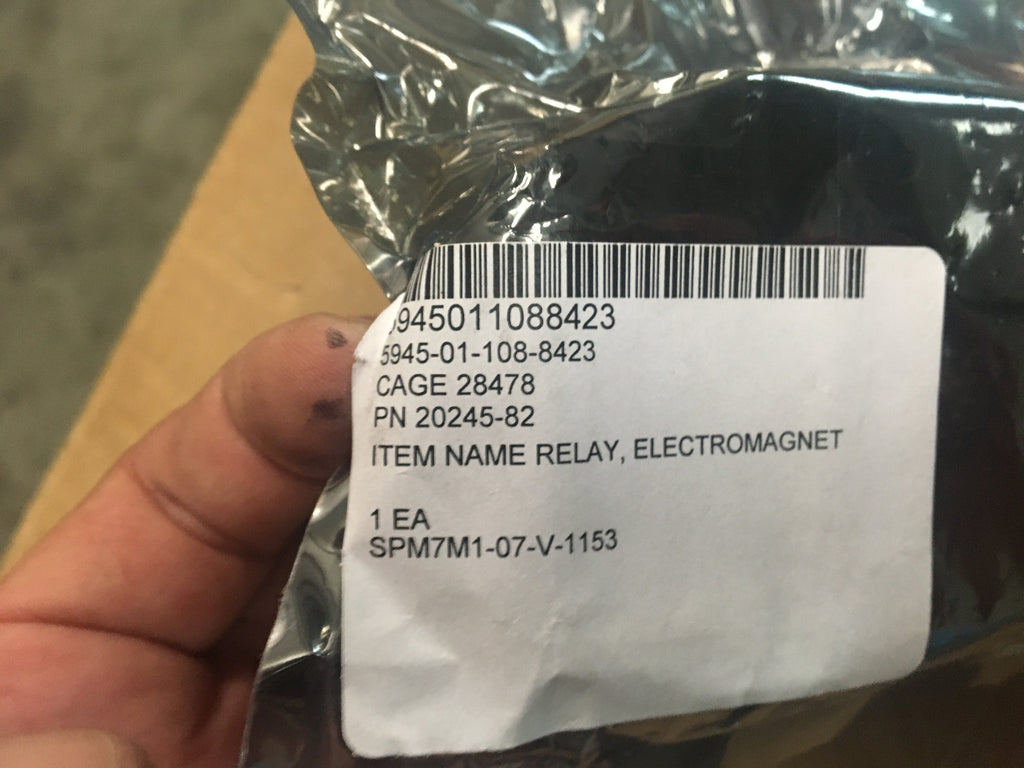

NATO Stock Number
5945-01-108-8423
DEMIL
Yes - ITAR Controlled
Overall Length
3.340 inches
Center To Center Distance Between Mounting Facilities Parallel To Width
1.875 inches single mounting facility
Overall Height
2.380 inches
Overall Width
2.500 inches
Unthreaded Mounting Hole Diameter
0.187 inches single mounting facility
Contact Material
Silver
Winding Quantity
1
Coil Quantity
1
Winding Dc Resistance Rating
290.0 ohms single winding
Duty Type
Continuous
Mounting Facility Type And Quantity
2 unthreaded hole single mounting facility
Mounting Facility Pattern
In-line single mounting facility
Nonpile-up Main Contact Arrangement
2 pole, double throw, one position momentary
Operating Voltage Rating And Type At Specificationified Temp
24.0 volts dc 25 degrees celsius single winding
Main Contact Load Current Rating At Maximum Rated Voltage
30.0 amperes ac restive load
Main Contact Maximum Voltage Rating In Volts
240.0 ac
Precious Material And Location
Contacts silver
Precious Material
Silver
Terminal Type And Quantity
8 screw all functions
