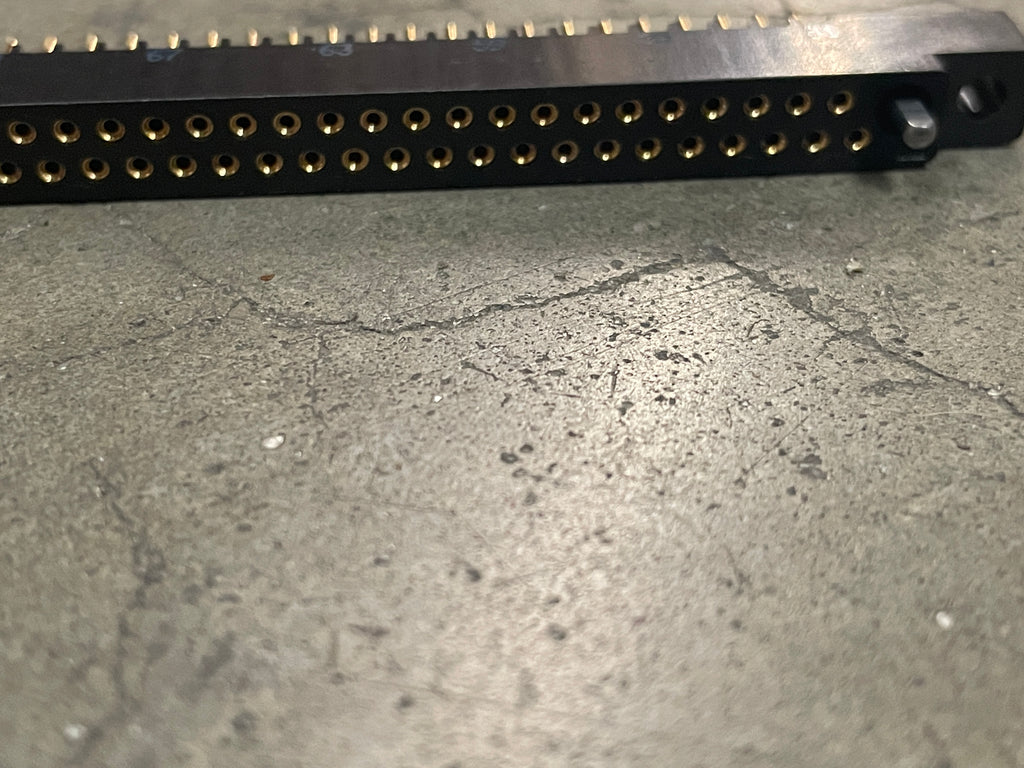

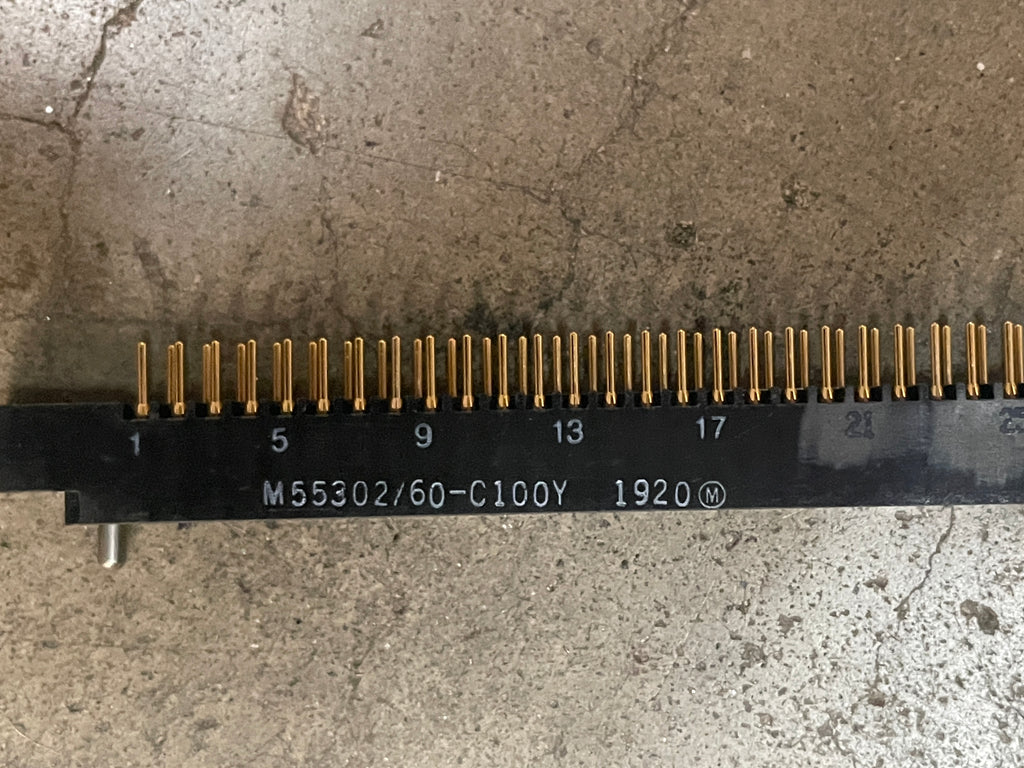

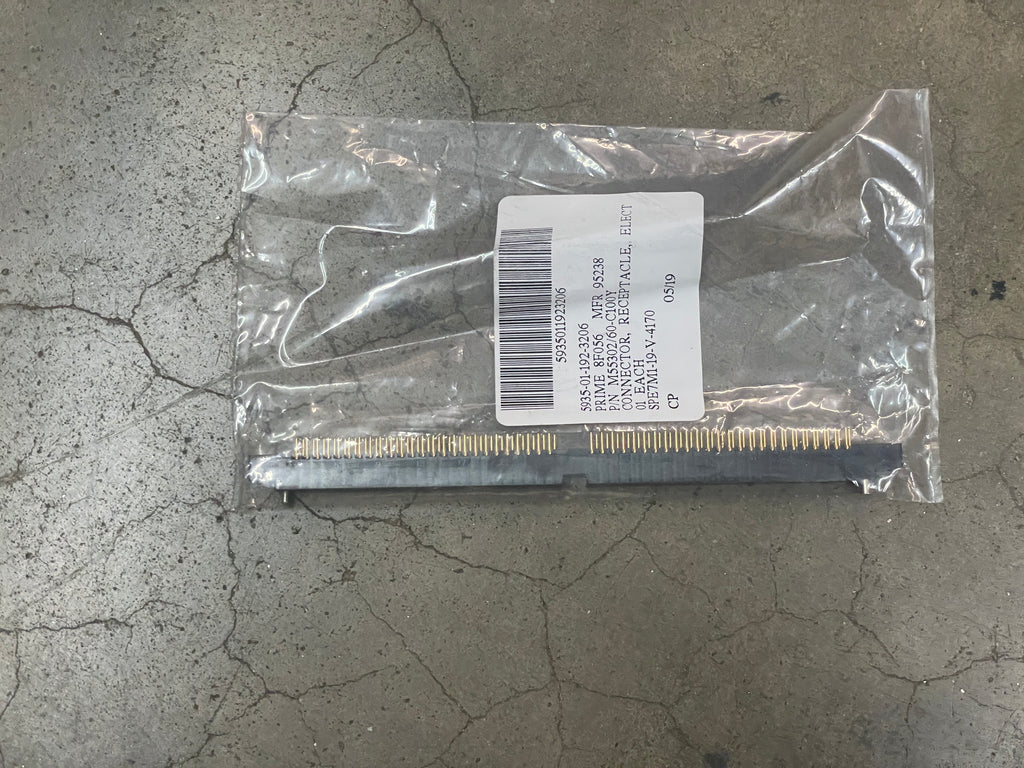

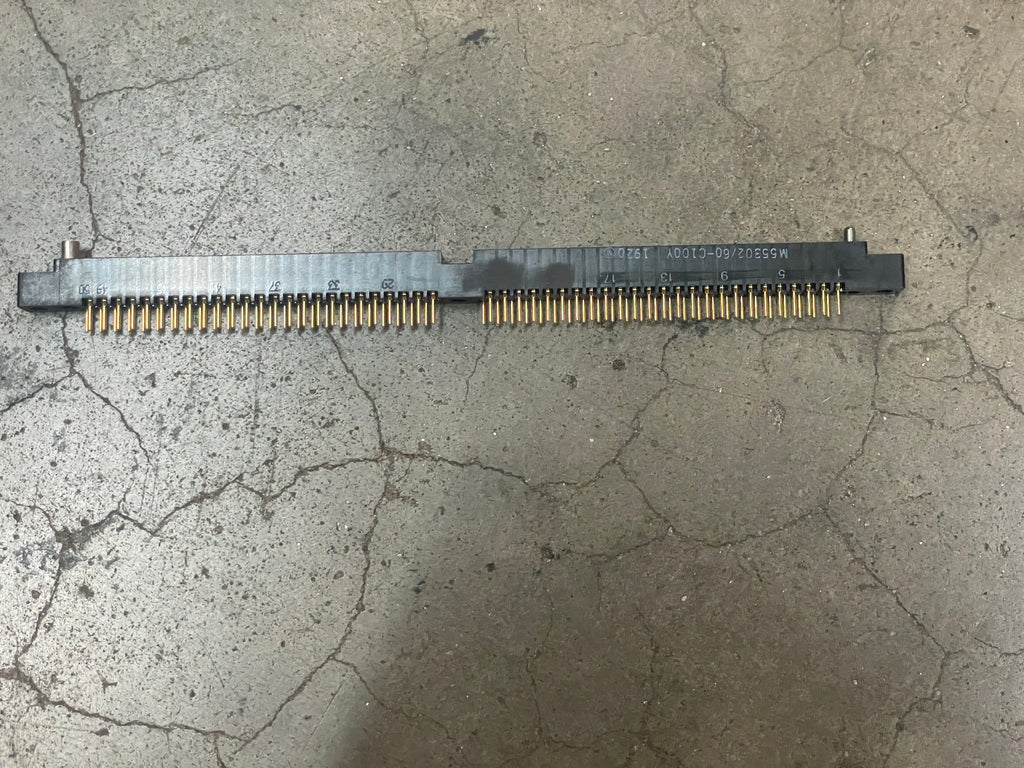

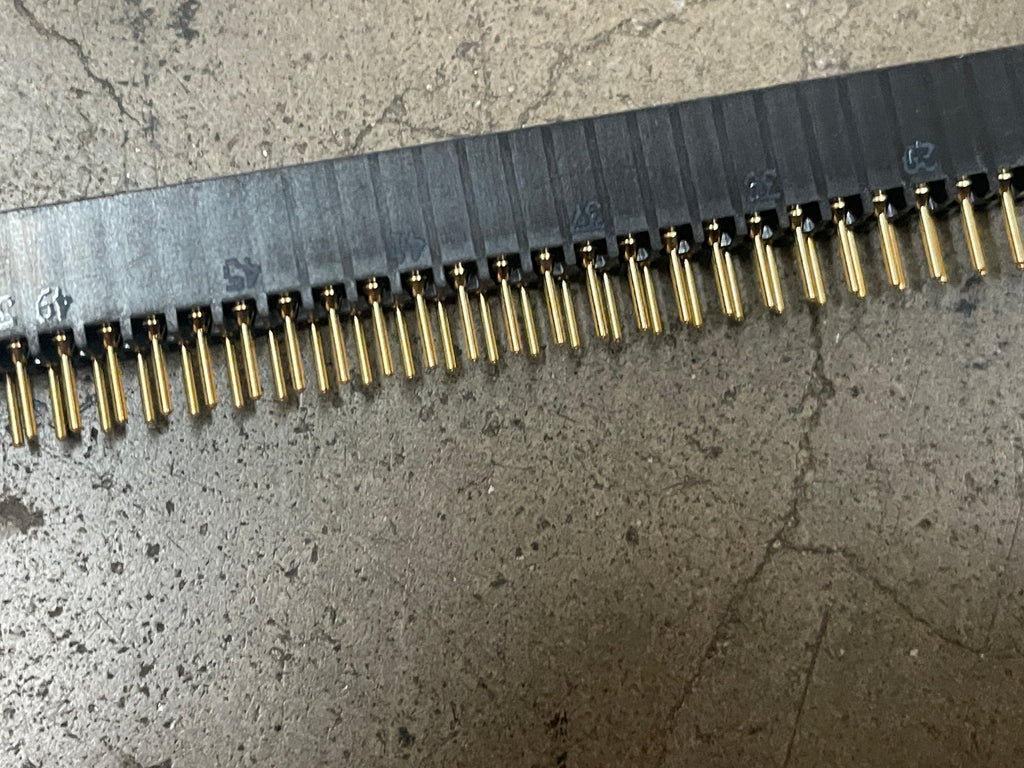

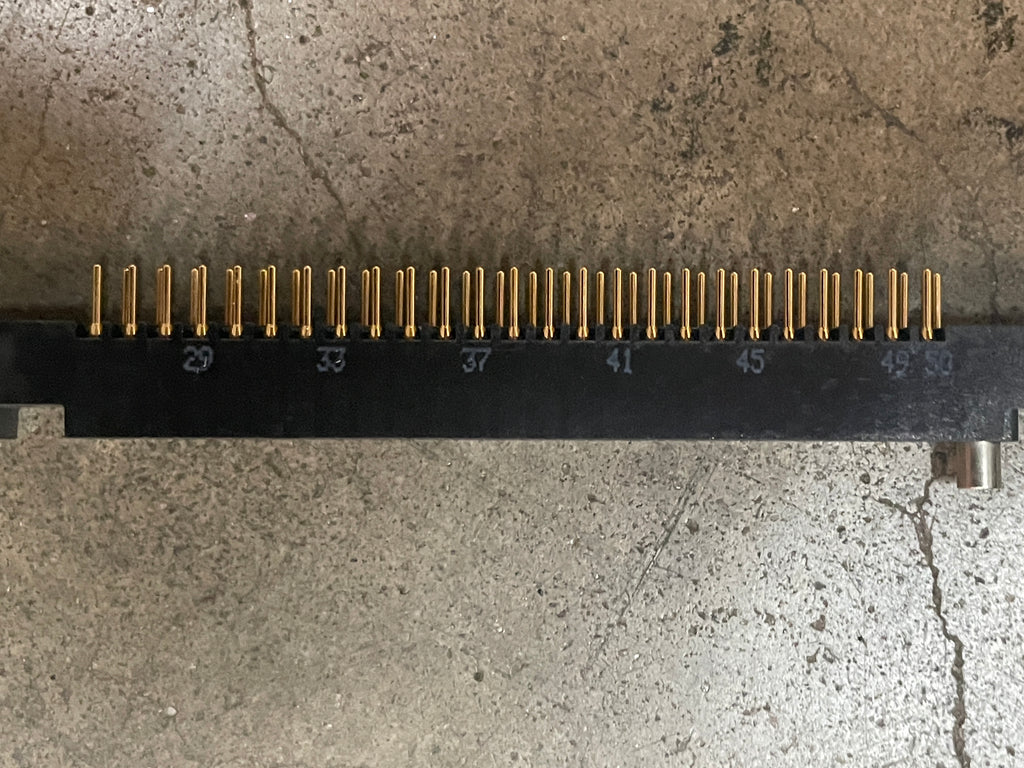

M55302/60-C100Y Electrical Receptacle Connector NSN: 5935-01-192-3206
Military Specifications

M55302/60-C100Y Electrical Receptacle Connector NSN: 5935-01-192-3206

$34.99

Electrical Receptacle Connector

ITAR Registered seal

NSN: 5935-01-192-3206 | Model: M55302/60-C100Y

An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), printed wiring board, or the like for convenience in joining with another electrical connecto (s) or printed wiring board. It is designed to be mounted on a bulkhead, chassis, panel, wall, printed wiring board, or the like. Excludes lampholder; jack, telephone; jack, tip; insert electrical connector; insert module, electrical connector; connector body (as modified) and socket, plug-in electronic components. See also wiring harness (as modified) and cable assembly (as modified) . For items with termination wires of more than four inches in length, see lead assembly, electrical. For items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-01-192-3206
DEMIL
NO
Body Style
Straight type
Overall Length
Between 6.140 inches and 6.160 inches
Overall Height
0.465 inches
Overall Width
0.250 inches
Environmental Protection
Shock resistant and vibration resistant and corrosion resistant and humidity resistant
Unthreaded Mounting Hole Diameter
0.120 inches
Distance Between Mounting Facility Centers
5.900 inches
Mating End Quantity
1
Contact Position Arrangement Style
2 rows of contacts non-inserted board single mating end
Contact Removability
Nonremovable single mating end single contact grouping
Contact Maximum Current Rating In Amps
5.0 single mating end single contact grouping

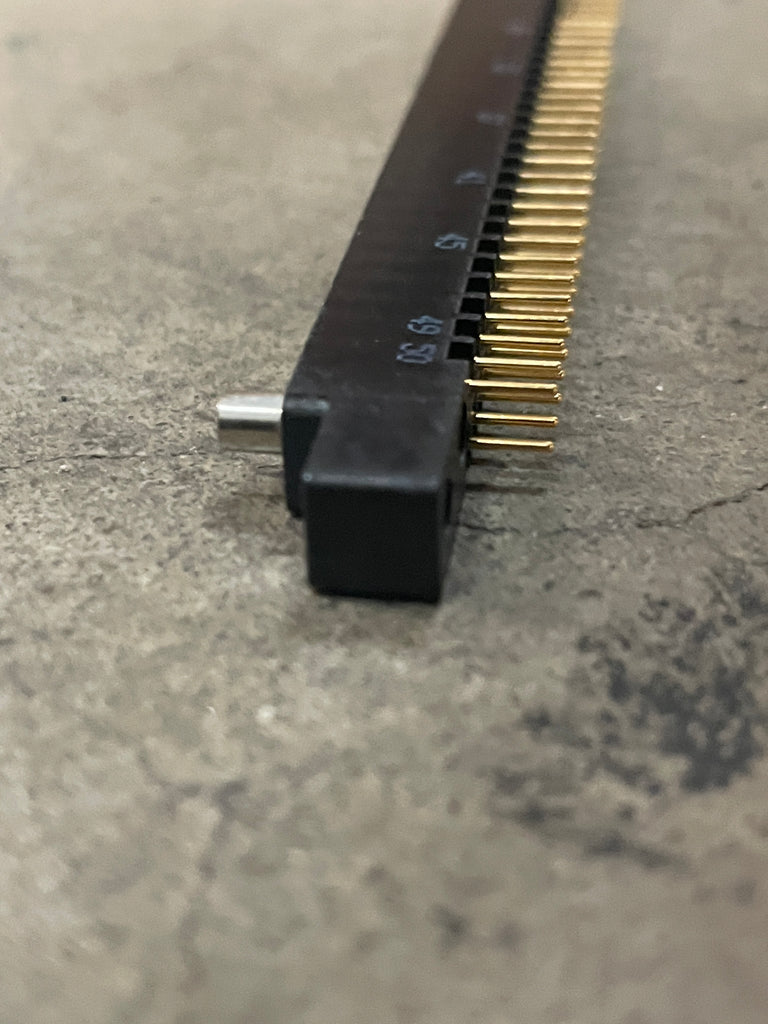

Polarization Method
Guide pin/socket
End Application
1230-01-l11-0154
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping and nickel single mating end single contact grouping
Insert Material
Plastic diallyl phthalate single mating end
Contact Surface Treatment Specification
Mil-g-45204, type 2, cl 1, grade c military specification 1st treatment response single mating end single contact grouping and qq-n-290, class 2 federal specification 2nd treatment response single mating end single contact grouping
Terminal Type
Pin single mating end single contact grouping
Contact Material Specification
Qq-c-530 federal specification single material response single mating end single contact grouping or qq-c-533 federal specification single material response single mating end single contact grouping or qq-b-750 federal specification single material response single mating end single contact grouping
Insert Material Specification
Mil-m-14, ty sdg-f or gdi-30f military specification single material response single mating end or mil-m-24519, type gpt-30f military specification single material response single mating end or mil-p-46174, class 40, grade e military specification single material response single mating end
Unable To Decode
Unable to decode and unable to decode
Included Contact Quantity
100 single mating end single contact grouping
Included Contact Type
Round socket single mating end single contact grouping
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.100 gold grains, troy
Precious Material
Gold
Test Data Document
81349-mil-c-55302 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
81349-mil-c-55302/60 government specification
