Souriau

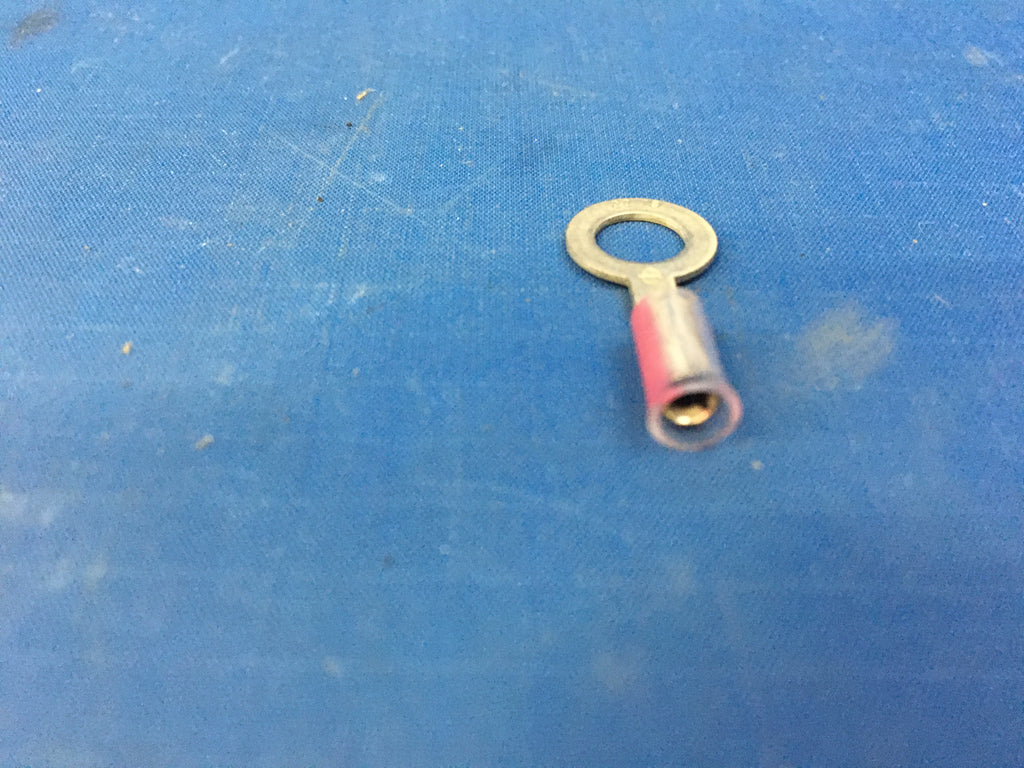

(5) Militry Spec High Temp Terminal Lug 18AWG Model:YAES18J-50 NSN:5940-01-333-7168

Regular price $3.25

Lug Terminal

NSN: 5940-01-333-7168 | Model: YAES18J-50
ITAR Registered seal

A terminal designed to be affixed, usually at one end, to a post, stud, chassis, or the like for mounting. it has provisions for attachment of wir (s) or similar electrical conductor(s) in order to establish an electrical connection and could require the use of tool(s) for attachment of wire. for post like terminals, see terminal stud. excludes clip, electrical; terminal, quick disconnect and terminal feedthru.

NSN Properties and Flags
NATO Stock Number
5940-01-333-7168
DEMIL
Yes - ITAR Controlled
Material Thickness
0.032 inches
Maximum Conductor Size Accommodated
18 awg
Mounting Method Style
Ring
Mounting Hole Diameter
0.266 inches
Basic Shape Style
Crimp
Criticality Code Justification
Feat
Special Features
High temperature, sleeve color red
