Raytheon Company

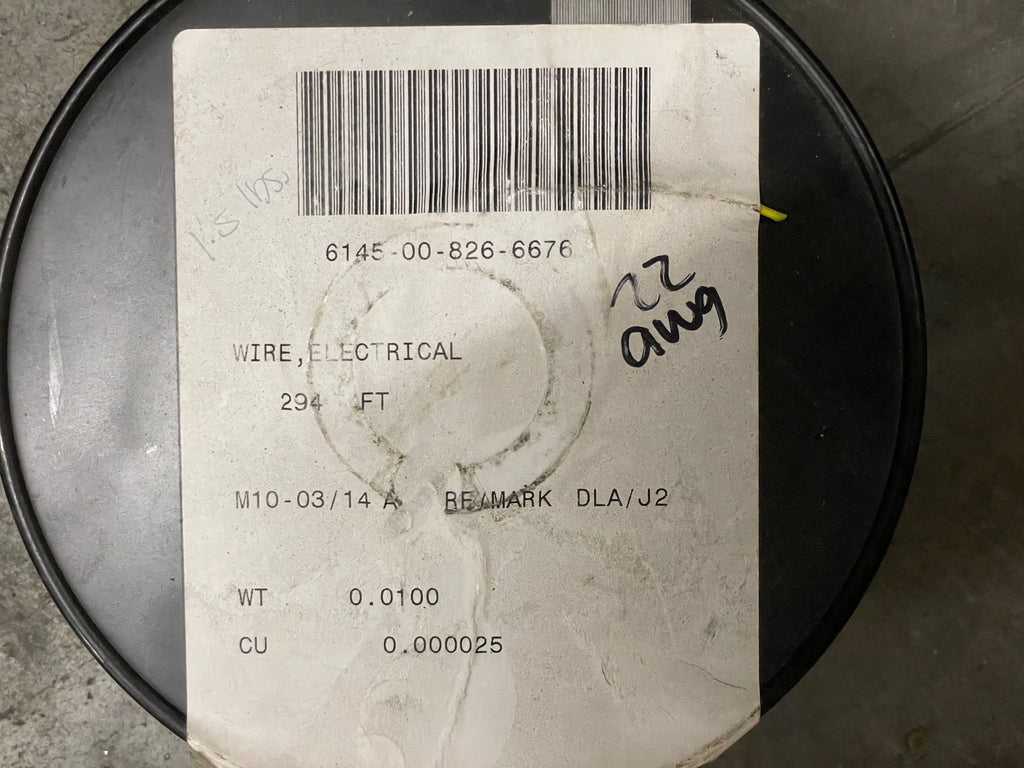

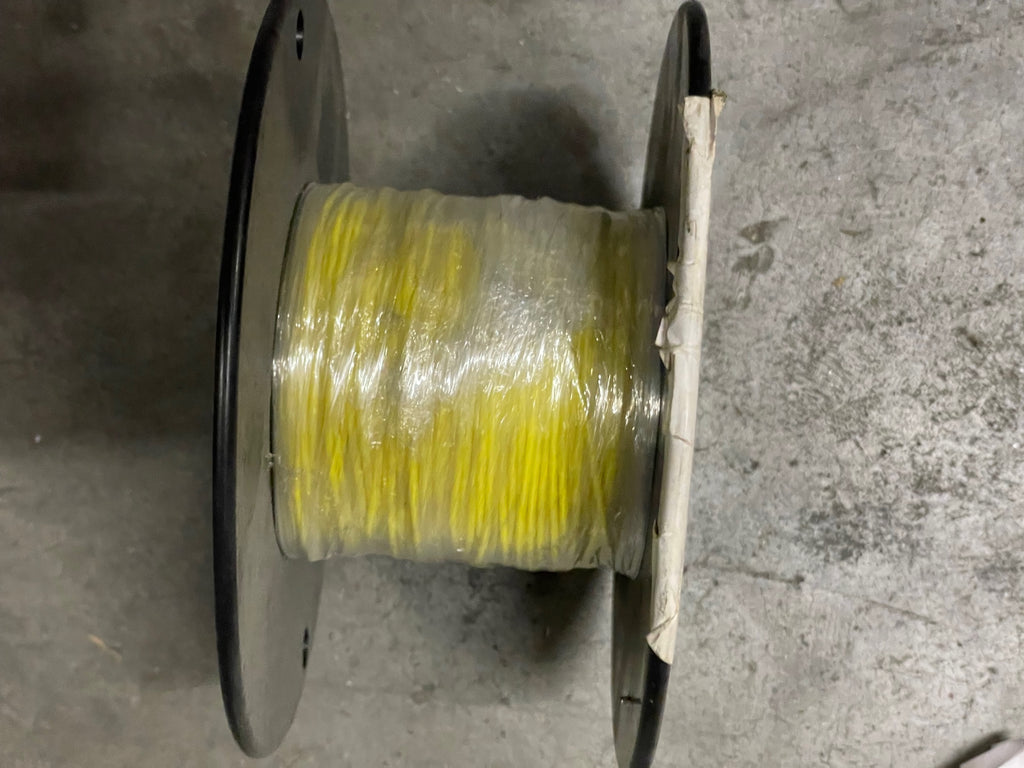

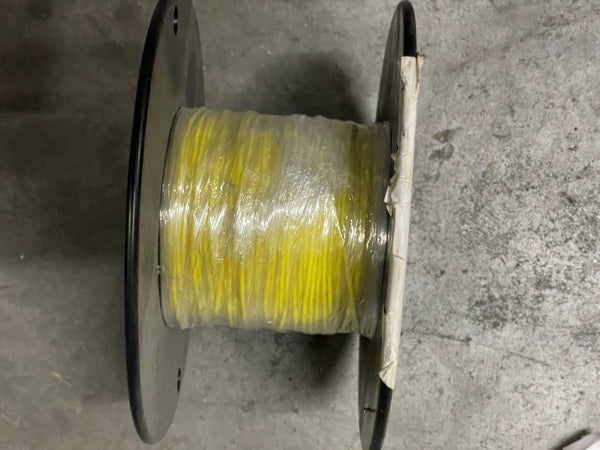

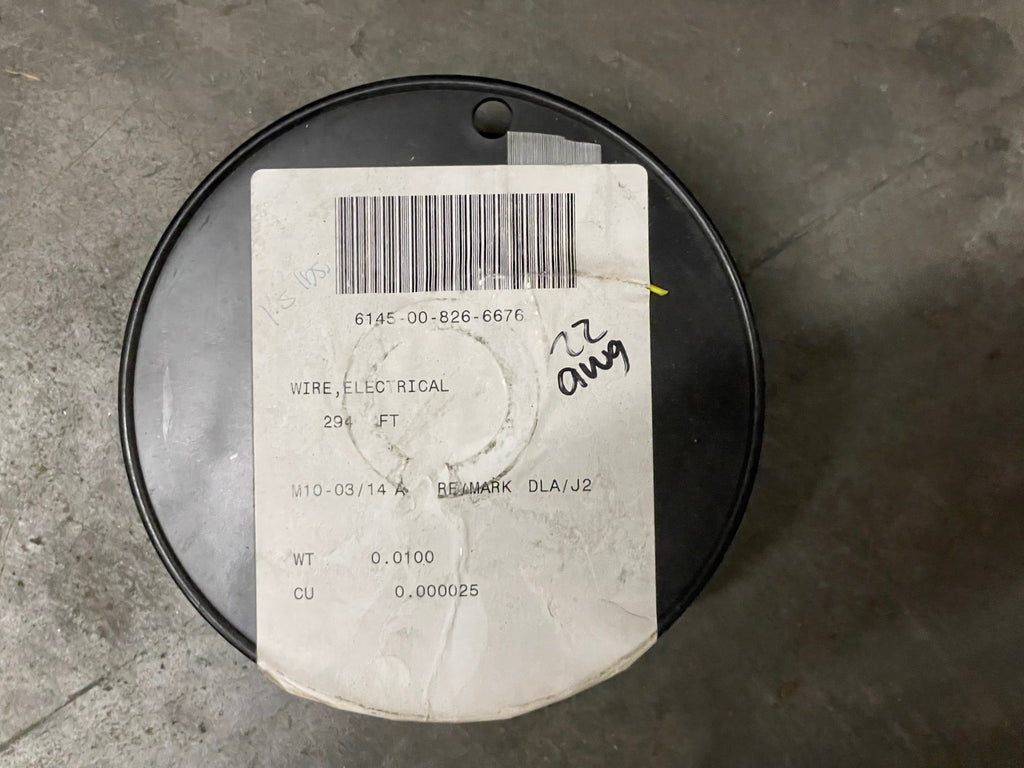

294FT Raytheon M16878/5BFE4 Electrical Wire 22AWG NSN:6145-00-826-6676
Regular price
$94.99
Electrical Wire
NSN:6145-00-826-6676 Model:M16878/5BFE4Replacements:
- 6145-00-826-6676 replaces 6145-00-062-4010
- 6145-00-826-6676 replaces 6145-00-809-1236
- 6145-00-826-6676 replaces 6145-00-990-2750
NSN Properties and Flags
NATO Stock Number
6145-00-826-6676
DEMIL
NO
Cross Sectional Shape
Round
Tempurature Rating
200.0 degrees celsius
Cross Section Outside Diameter
0.060 inches
Strand Quantity Per Conductor
19 single conductor
Conductor Form
Stranded single conductor
Round Conductor Size
22 awg single conductor
Strand Awg Size Per Conductor
34 single conductor
Voltage Rating
1000.0 root mean square (rms) operating voltage single conductor
Color
Yellow core conductor single conductor
Material
Plastic polytetrafluoroethylene 1st position primary insulation single conductor
Material Specification
Astm b298 assn standard single material response core conductor single conductor
Precious Material And Location
Surface single conductor silver
Surface Treatment
Silver core conductor single conductor
Surface Treatment Specification
Astm b298 assn standard single treatment response core conductor single conductor
