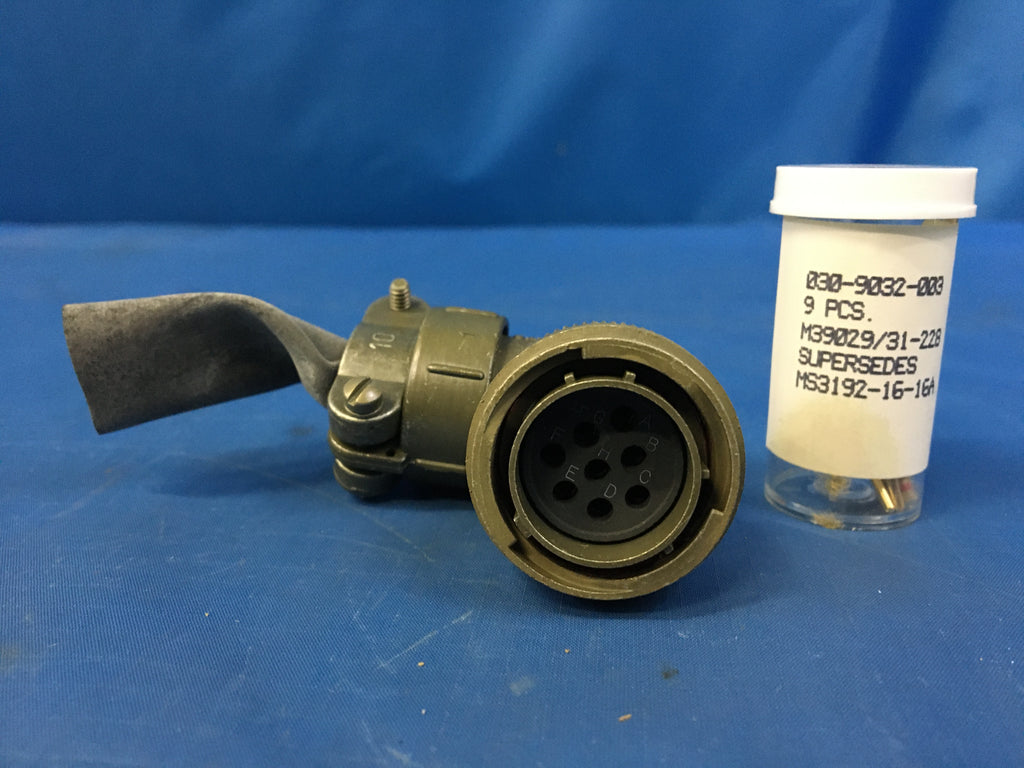

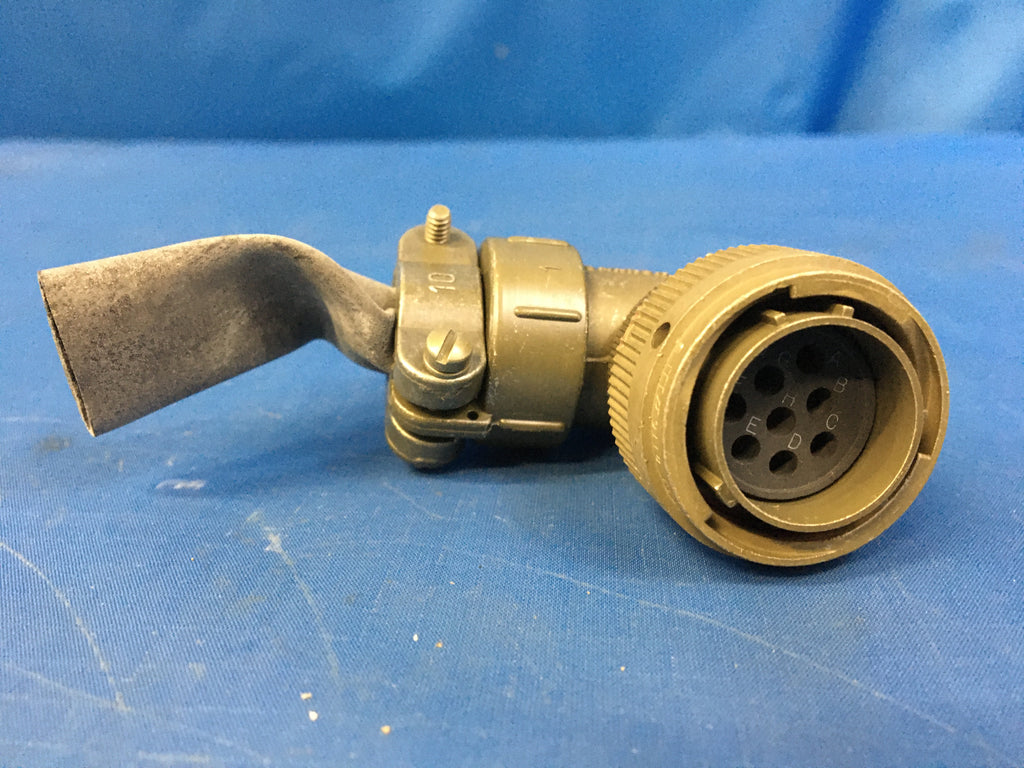

Itt Corp KPSE08F16-8PX Electrical Plug Connector NSN:5935-01-121-1737
Regular price
$69.99
Electrical Plug Connector
NSN:5935-01-121-1737 Model:KPSE08F16-8PXAn electrical fitting with electrical contacts, constructed to be affixed to the end of a cable, conduit, coaxial line, cord or wiring for convenience in joining with other electrical connecto (s) or printed wiring board and is not designed to be mounted on a bulkhead, chasses, panel, printed wiring board, or the like. Excludes jack, telephone; jack, tip; plug, telephone; plug tip; insert, electrical connector; connector body (as modified); and socket, plug-in, electronic components. see also lead assembly, electrical; wiring harness (as modified); and cable assembly (as modified) . for items without inserts, see shell, electrical connector.
NSN Properties and Flags
NATO Stock Number
5935-01-121-1737
DEMIL
Yes - ITAR Controlled
Body Style
Angle shape w/cable clamp
Overall Diameter
1.305 inches
Body Angle In Deg
90.0
Environmental Protection
Moisture proof and salt water resistant and vibration proof
Cable Entrance Diameter
0.490 inches
Mating End Quantity
1
Contact Position Arrangement Style
16-8 single mating end
Contact Removability
Removable single mating end single contact grouping
Contact Maximum Current Rating In Amps
22.0 single mating end single contact grouping
Contact Maximum Ac Voltage Rating In Volts
1000.0 single mating end single contact grouping
Contact Maximum Dc Voltage Rating In Volts
1275.0 single mating end single contact grouping
Polarization Method
Keyway or multiple keyway
Insert Position In Deg
152.0
Shell Type
Solid
Connector Locking Method
Bayonet latch
Connector Cable Strain Relief Method
Cable clamp
Distance From Centerline To Connector End
1.609 inches
Distance From Centerline To Cable End
1.582 inches
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Copper single mating end single contact grouping and gold single mating end single contact grouping
Insert Material
Plastic single mating end
Contact Surface Treatment Specification
Mil-g-45204 type 2, cl 1 military specification 2nd treatment response single mating end single contact grouping
Terminal Type
Crimp single mating end single contact grouping
Shell Material
Aluminum alloy
Shell Surface Treatment
Cadmium and chromate
Shell Surface Treatment Specification
Qq-p-416 federal specification all treatment responses

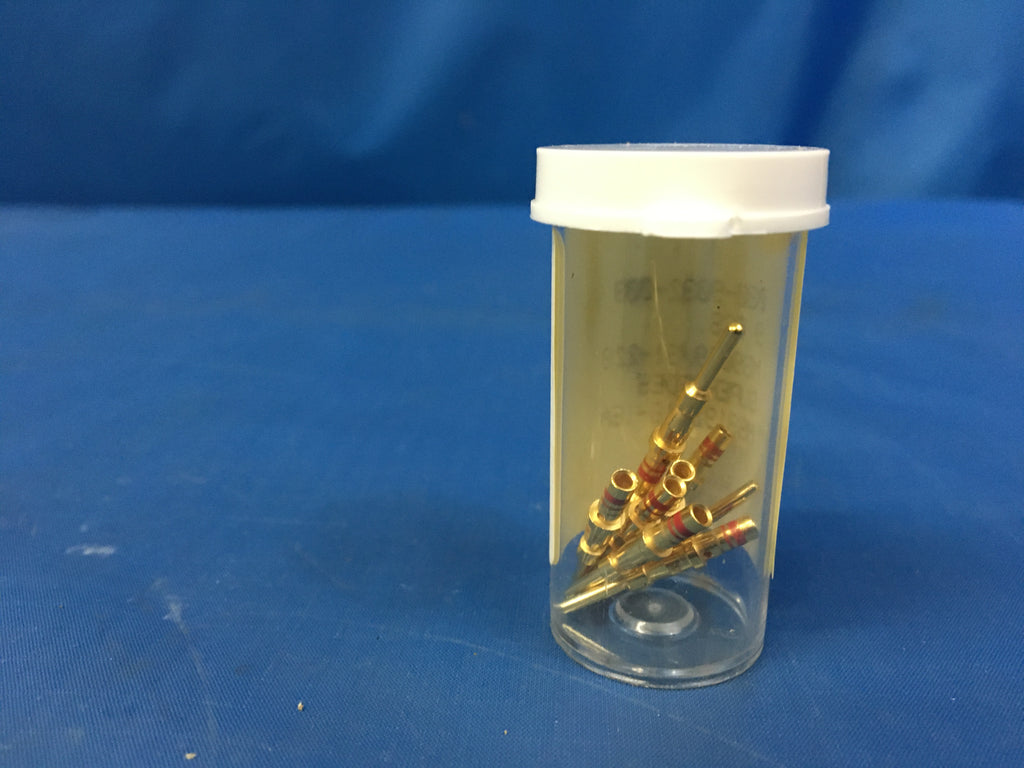

Included Contact Quantity
8 single mating end single contact grouping
Included Contact Type
Round pin single mating end single contact grouping
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.008 gold grains, troy
Precious Material
Gold
