NSN 6145-00-218-7494

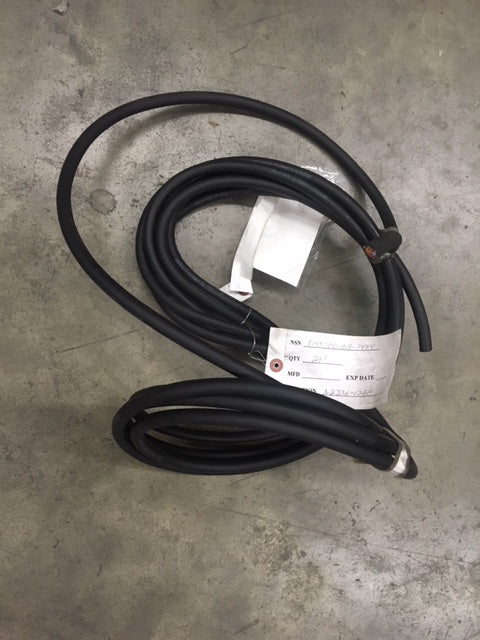

20" Electrical Power Cable 16awg Model: CO-05MOF(5/16)SJ0485 NSN: 6145-00-218-7494
Regular price
$39.99
Electrical Power Cable
SKU: 6145002187494 | Model: CO-05MOF(5/16)SJ0485NSN 6145-00-218-7494
Description:
Round cross-sectional shape style, -40.0 degrees Celsius temp rating, 0.485" cross section outside diameter, 5 conductor quantity, 65 all conductors strand quantity per conductor
Specifications from the Manufacturer
Cross-sectional Shape Style:
Round
Temp Rating:
-40.0 deg celsius and 75.0 deg celsius
Cross Section Outside Diameter:
0.485 inches nominal
Conductor Quantity:
5
Strand Quantity Per Conductor:
65 all conductors
Conductor Form:
Stranded all conductors
Round Conductor Size:
16 awg all conductors
Strand Awg Size Per Conductor:
34 all conductors
Conductor Arrangement And Quantity:
5 singles
Voltage Rating:
600.0 maximum root mean square (rms) operating voltage all conductors
Color:
Black 1st position cover first conductor
Color:
Green 4th position cover fourth conductor
Material:
Copper core conductor all conductors
Material Document And Classification:
Qq-w-343,soft fed spec single material response core conductor all conductors
Surface Treatment:
Tin core conductor all conductors
Surface Treatment Document And Classification:
Astm b33-63 assn std single treatment response core conductor all conductors
