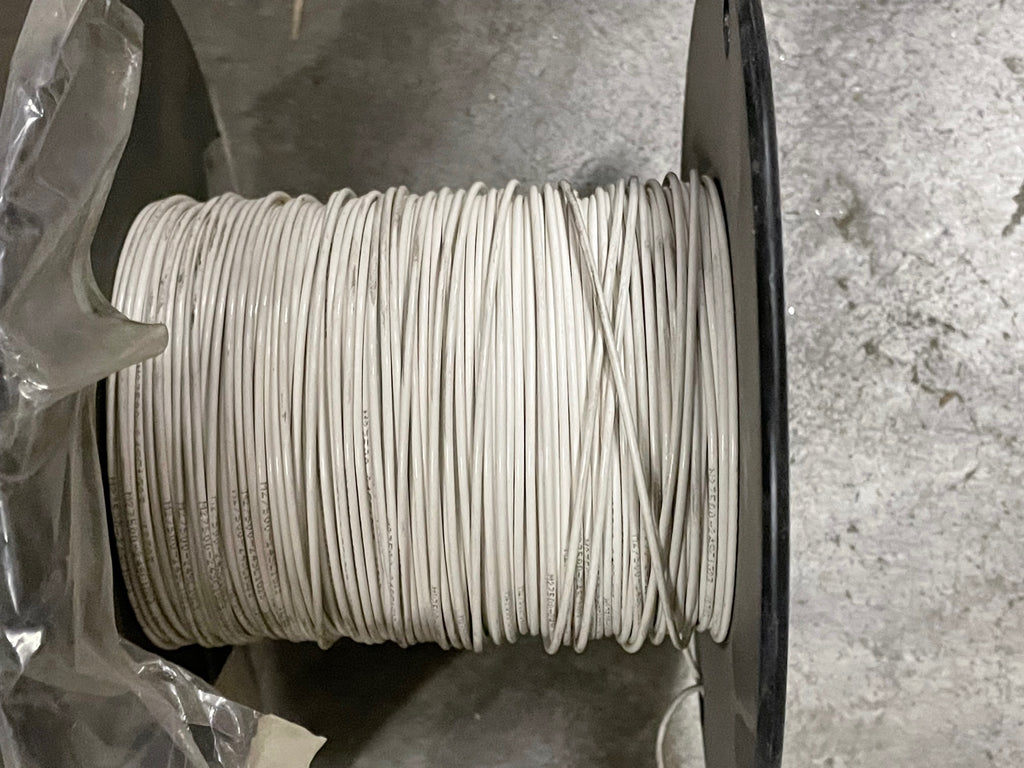

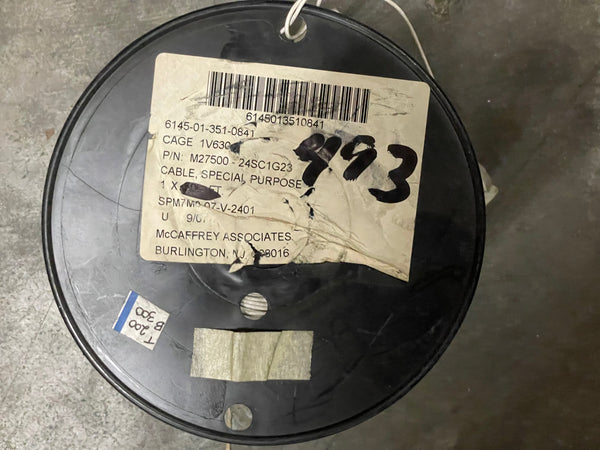

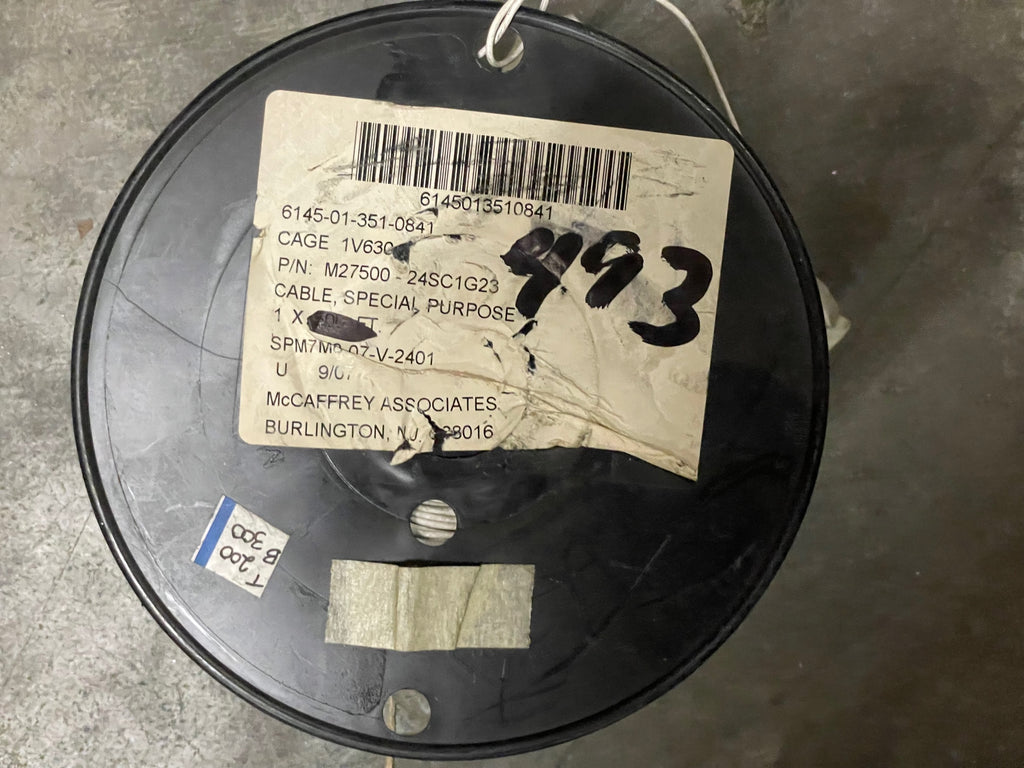

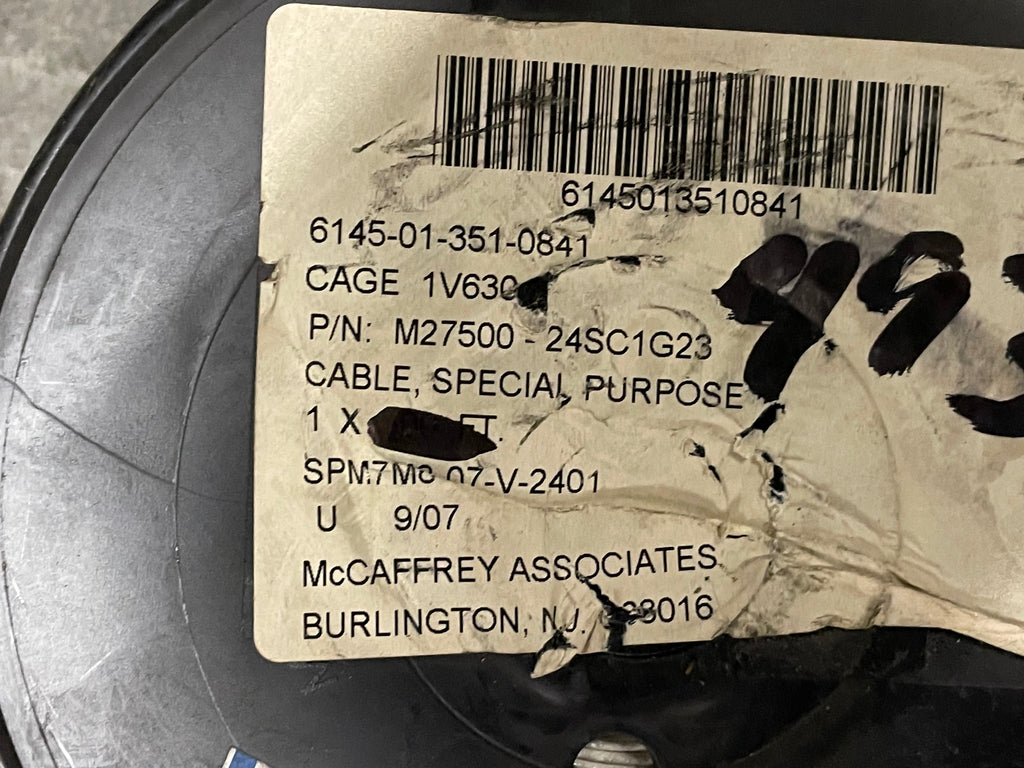

493FT Military Spec M27500-24SC1G23 E Special Purpose Cable NSN:6145-01-351-0841
Regular price
$1,250.00
Electrical Special Purpose Cable
NSN:6145-01-351-0841 Model:NEMA WC27500 P/N:M27500-24SC1G23Two or more individually insulated conductors (solid or stranded) contained in a common covering, or two or more individually insulated conductors twisted or molded together without a common covering, or one insulated conductor with a metallic covering or shield; each having characteristics not completely conforming to cable, telephone; cable, power, electrical; cable, radio frequency or cord, electrical. Includes items having the combined characteristics of two or more of the aforementioned names. Refers to bulk quantities only; for items of definite length with processed ends or terminated in fittings, see cable assembly, special purpose, electrical.
NSN Properties and Flags
NATO Stock Number
6145-01-351-0841
DEMIL
NO
Cross Sectional Shape
Round
Tempurature Rating
200.0 degrees celsius
Conductor Quantity
1
Strand Quantity Per Conductor
19 single conductor
Conductor Form
Stranded single conductor
Round Conductor Size
24 awg single conductor
Strand Awg Size Per Conductor
36 single conductor
Conductor Arrangement And Quantity
1 singles
Voltage Rating
600.0 root mean square (rms) operating voltage all conductors
Color
White 1st position primary insulation single conductorwhite 3rd position jacket single conductor
Material
Copper alloy core conductor single conductorplastic cross-linked modified ethylene tetrafluoroethylene 1st position primary insulation single conductorcopper 2nd position shield braid, metallic single conductorplastic cross-linked modified ethylene tetrafluoroethylene 3rd position jacket single conductor
Material Specification
Astm b298 assn standard single material response core conductor single conductor
Precious Material And Location
Surface single conductor silver and surface shield braid silver
Precious Material
Silver
Surface Treatment
Silver core conductor single conductorsilver 2nd position shield braid, metallic single conductor
Surface Treatment Specification
Astm b298 assn standard single treatment response core conductor single conductorastm b298 assn standard single treatment response 2nd position shield braid, metallic single conductor
