Ashcroft Inc

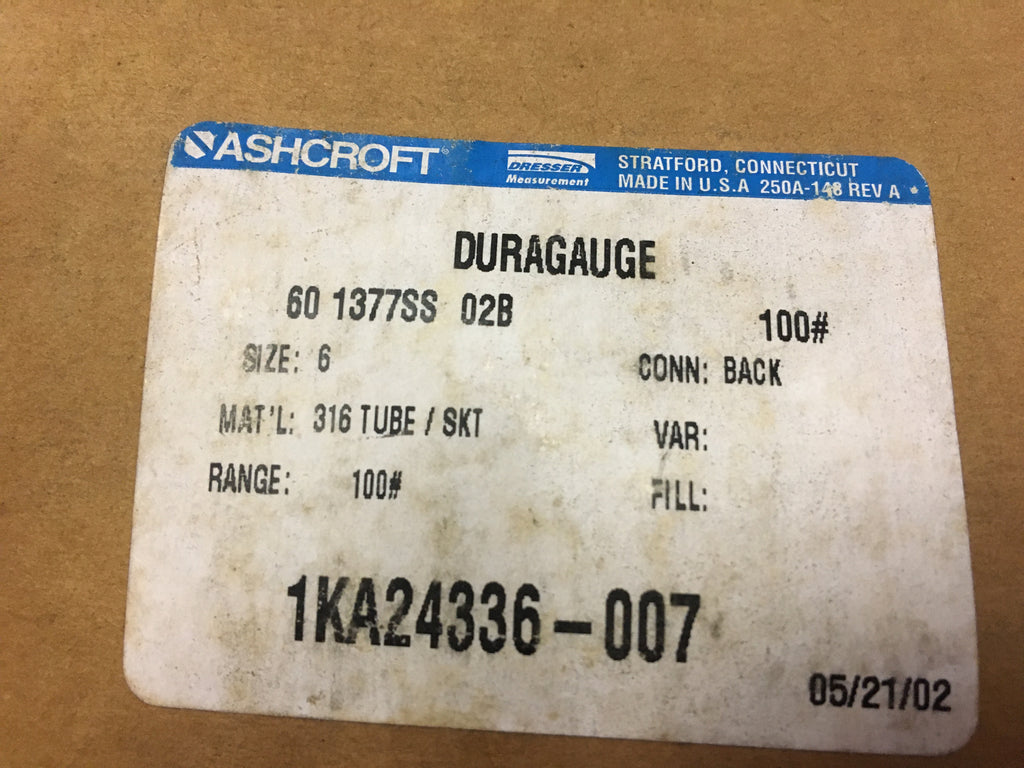

Ashcroft 60-1377SS02B100 Dial Indicating Pressure Gage NSN:6685-01-008-7584
Regular price
$299.99

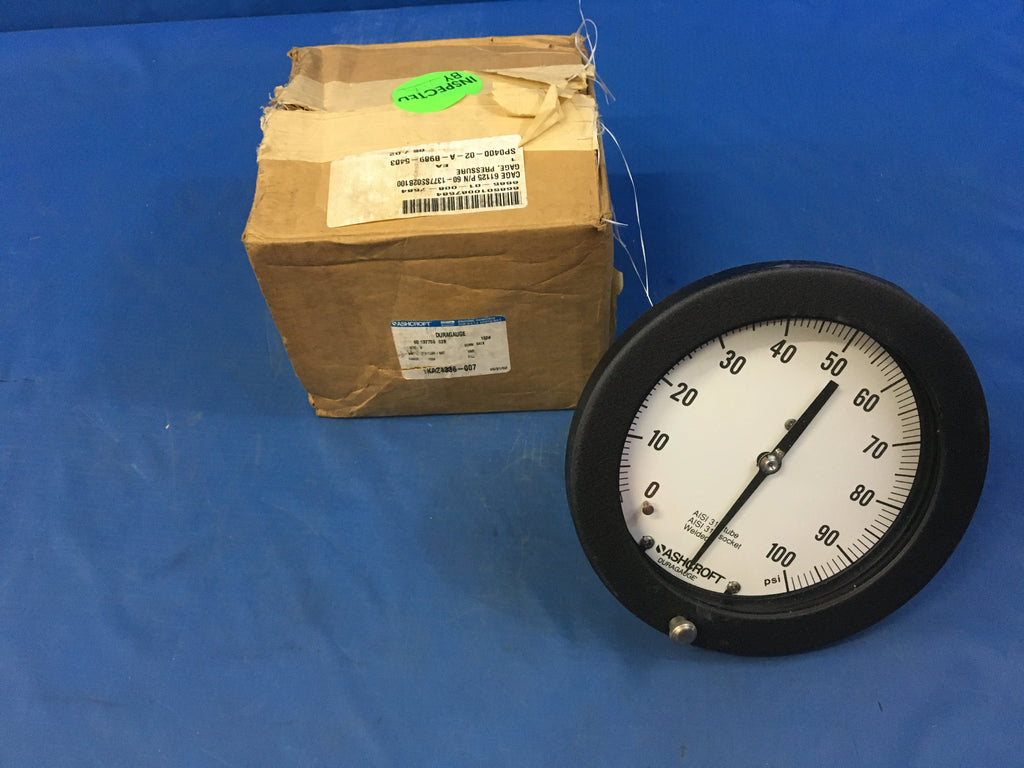

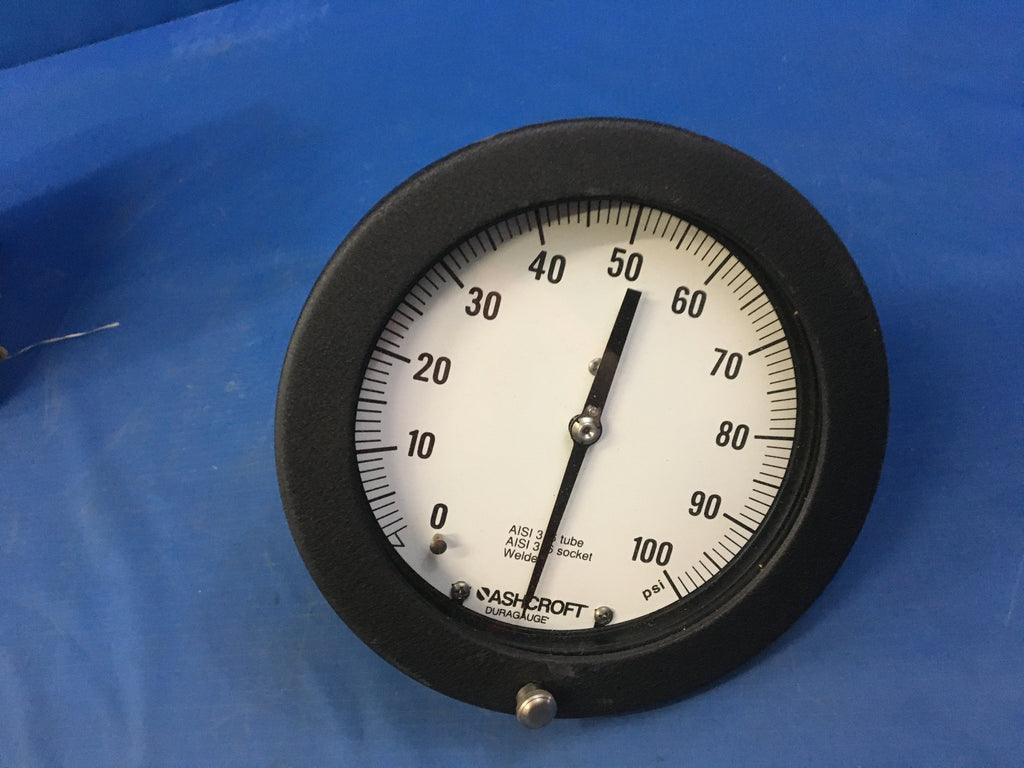

Dial Indicating Pressure Gage
NSN: 6685-01-008-7584 | Model: 60-1377SS02B100Replacements:
- 6685-01-008-7584 replaces 6685-01-027-3889
Schedule B & Trade:
- Schedule B: 9026200000 (NAICS 334513)
Instruments and apparatus for measuring or checking pressure
- SITC: 87435
Instruments and apparatus for measuring or checking the pressure of liquids or gases, n.E.S. (not supply etc. Meters and regulating etc. Apparatus)
- End Use: 21160
Measuring, testing, control instruments
NSN Properties and Flags
NATO Stock Number
6685-01-008-7584
DEMIL
Yes - ITAR Controlled
Overall Depth
2.250 inches
Overall Diameter
7.562 inches
Case Material
Aluminum alloy
Case Surface Treatment
Paint, black epoxy
Graduation Unit
10.0 pounds per square inch
Actuation Type
Bourdon tube
Adjustability
Adjustable

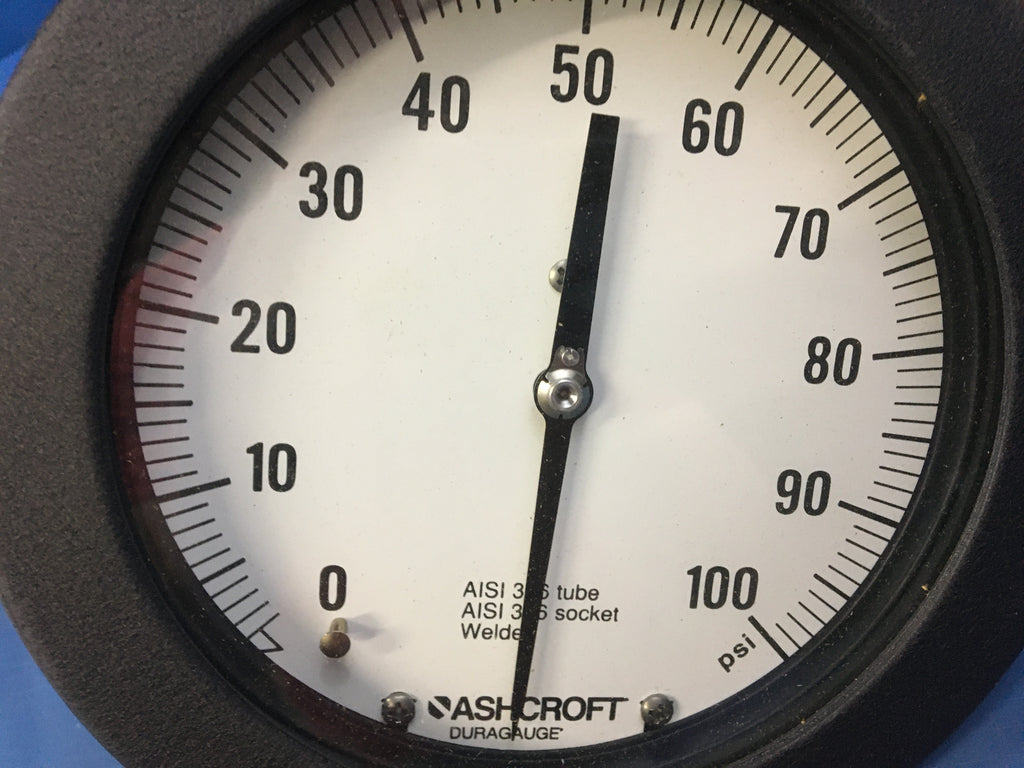

Scale Range
+0.0/+100.0 pounds pressure per square inch
Scale Name
Pressure
Dial Size
6in. Dia
Connection Quantity
1
Pointer Color
Black
Pointer Type
Indicating
Scale Type
Single
Scale Smallest Increment
1.0 pounds per square inch
Connection Type
External
Mounting Method
Surface
Scale Accuracy
1/2 pct entire range
Actuating Element Material
Steel, stainless
Scale Inscription/background Color
Black markings on white background

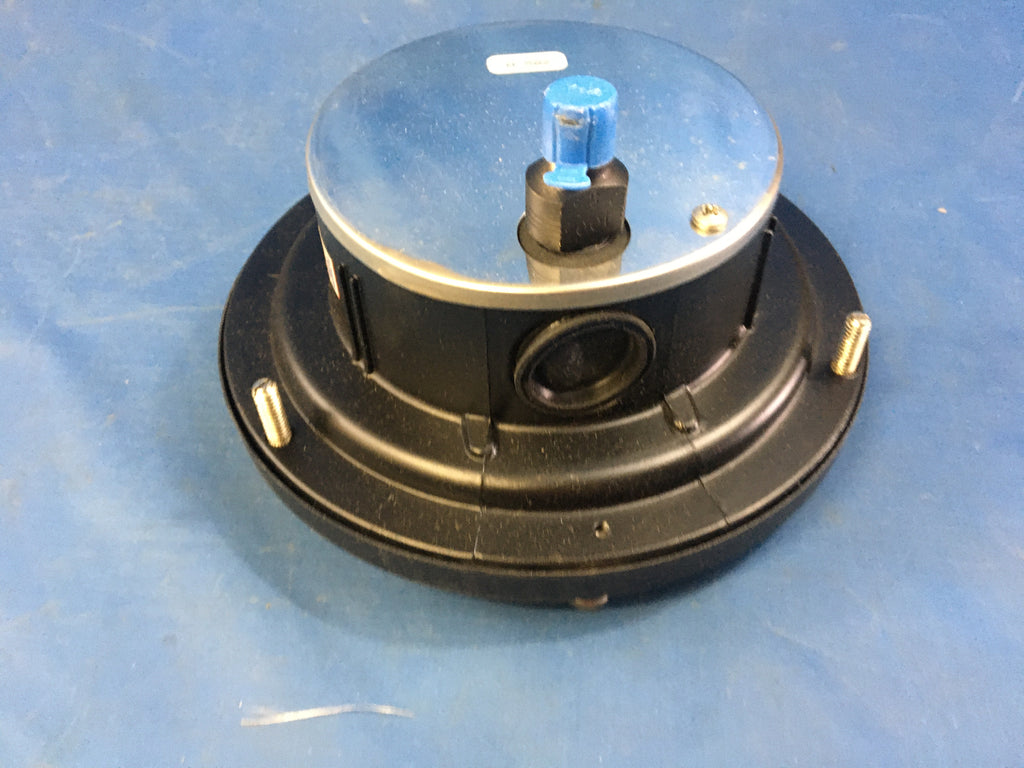

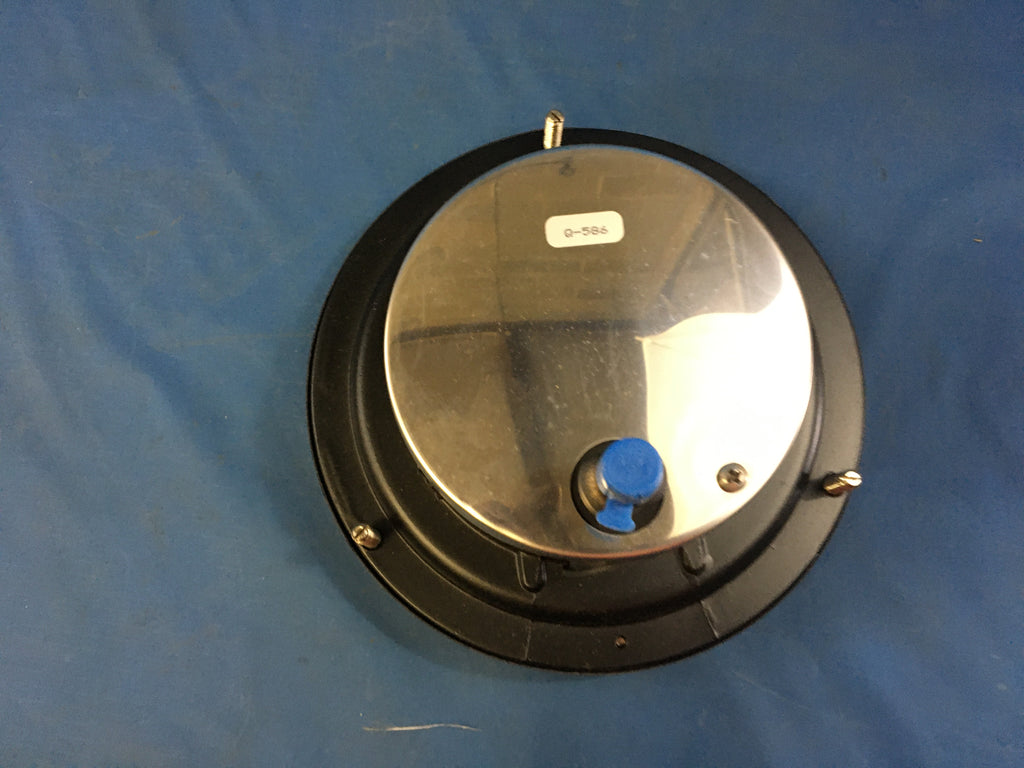

Connection Location
Lower back
Bezel Type
Hinge

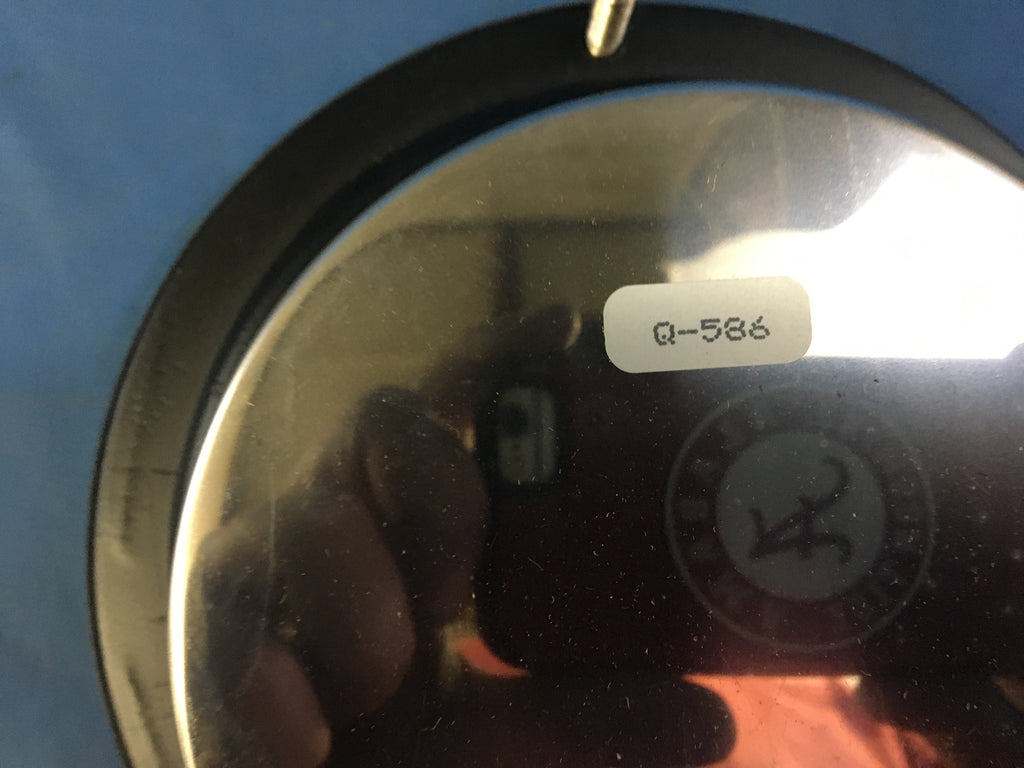

Protective Crystal Material
Glass
Connection Size
0.250 in. Npt
Connector Type Vent
Not provided
Material
Steel, stainless
Material
Stainless steel
Surface Treatment
Paint epoxy
Surface Treatment
Paint, black epoxy
