Bell Helicopter Textron Bus Conductor NSN: 6150-01-109-8775 P/N: 120-055-1-14
Please fill out the form below for a price quote and availability on this item.

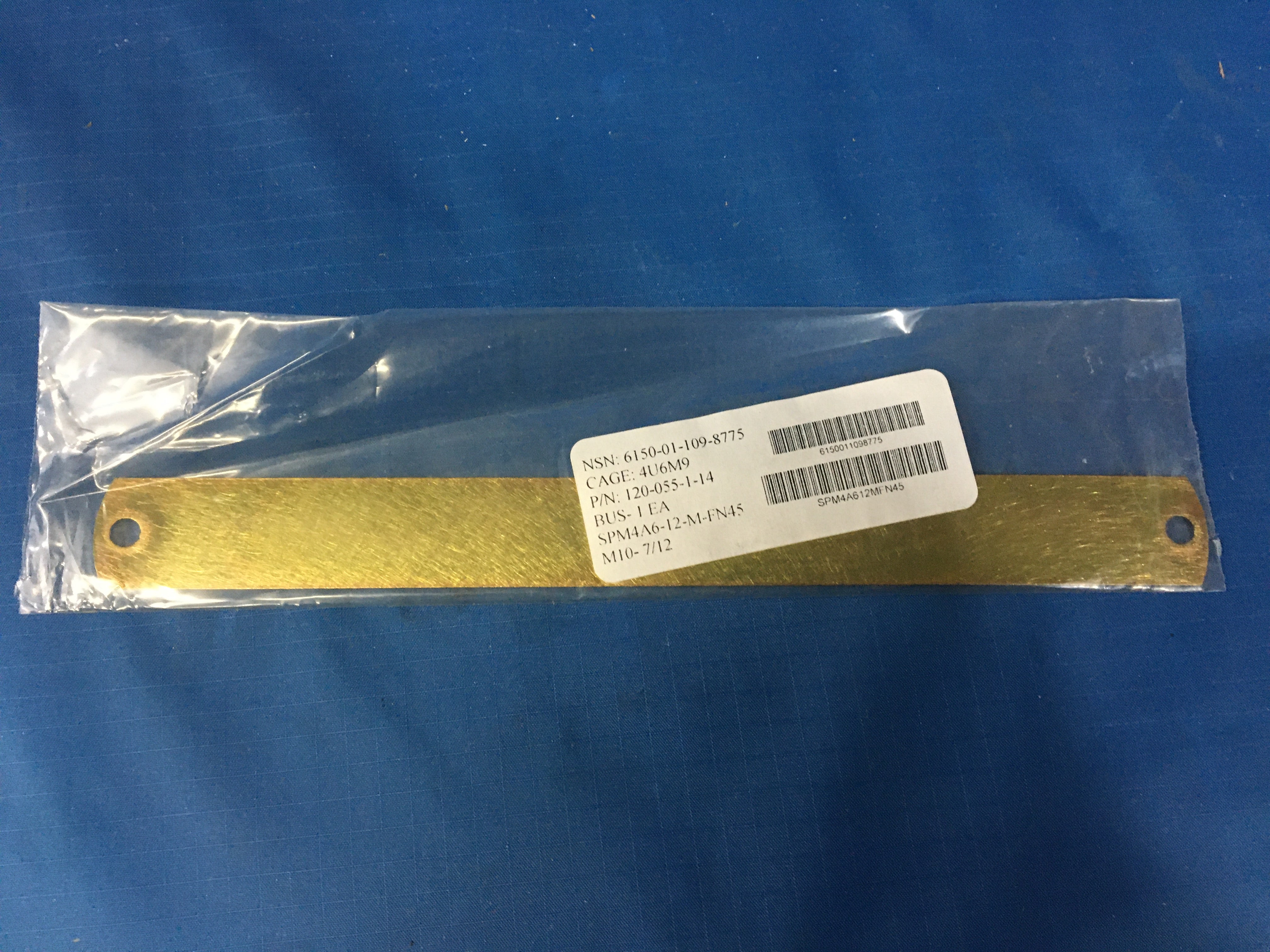

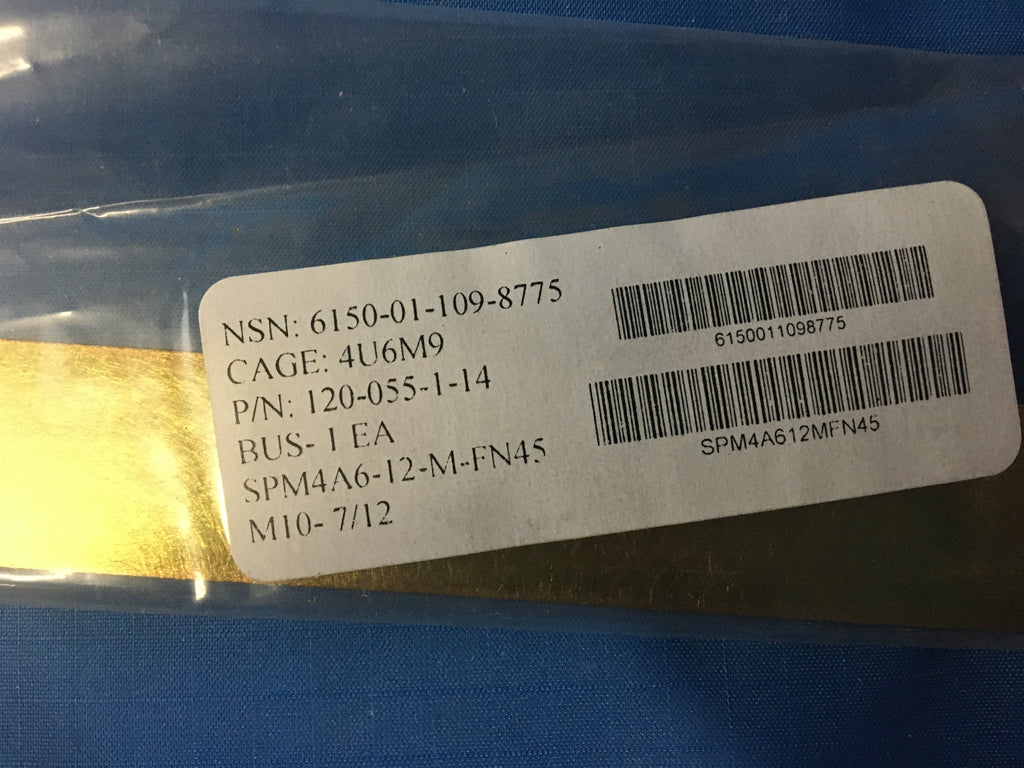

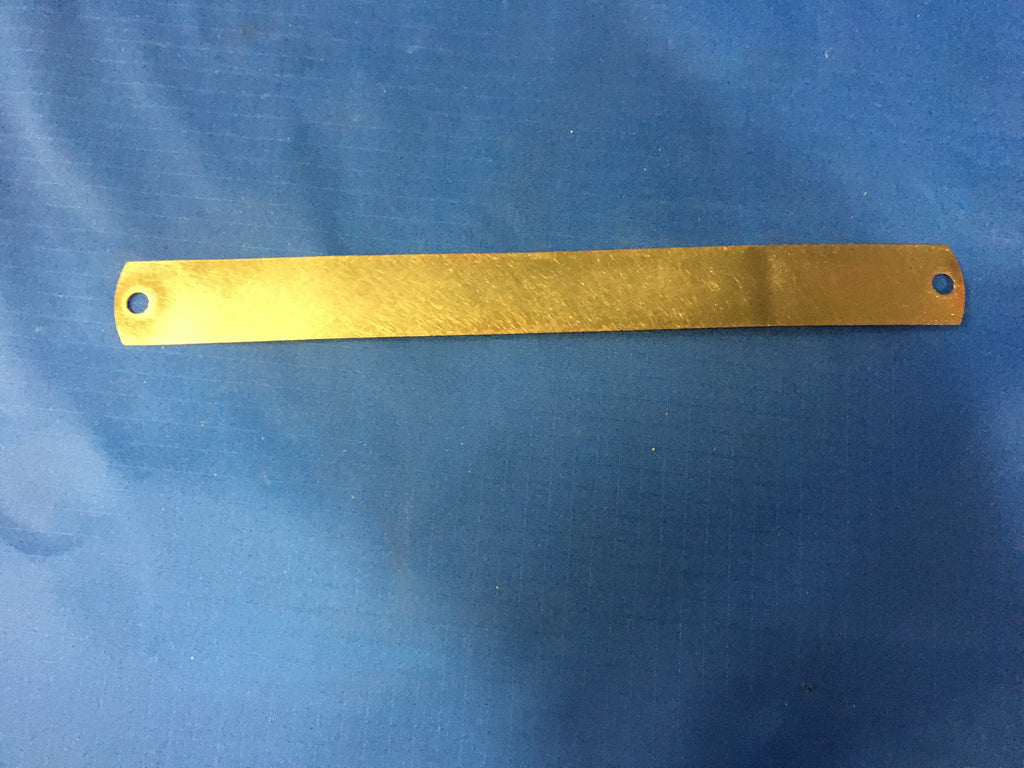

Conductor Bus
NSN: 6150-01-109-8775 | Model: 120-055-1-14An item made of rigid or semi rigid conductive material, usually employed in the distribution of heavy electrical current. It is cut to specific lengths and is shaped, drilled, tapped or otherwise terminated. It may be fabricated in any of various cross-sectional shapes and sizes and may include terminal lugs. It may be designed to connect two or more screw or stud terminations. Excludes terminal strip, grounding.
NSN Properties and Flags
NATO Stock Number
6150-01-109-8775
DEMIL
Yes - ITAR Controlled
Body Cross-sectional Shape
Oblong
Overall Length
7.400 inches
Cross-sectional Height
Between 0.014 inches and 0.020 inches
Cross-sectional Width
Between 0.720 inches and 0.780 inches
End Application
1520-00-504-9112 attack helicopter
Mounting Configuration
Two 0.193 in. Diameter holes 7.000 in. C to c
Construction
Solid
Material
Copper
Material Specification
QQ-C-576 federal specification single material response
Surface Treatment
Cadmium
Surface Treatment Specification
QQ-P-416, type 2, class 2 federal specification single treatment response
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
