(5) Lucent Technologies 2486-202 Cartridge Fuse NSN:5920-00-844-5790
Please fill out the form below for a price quote and availability on this item.

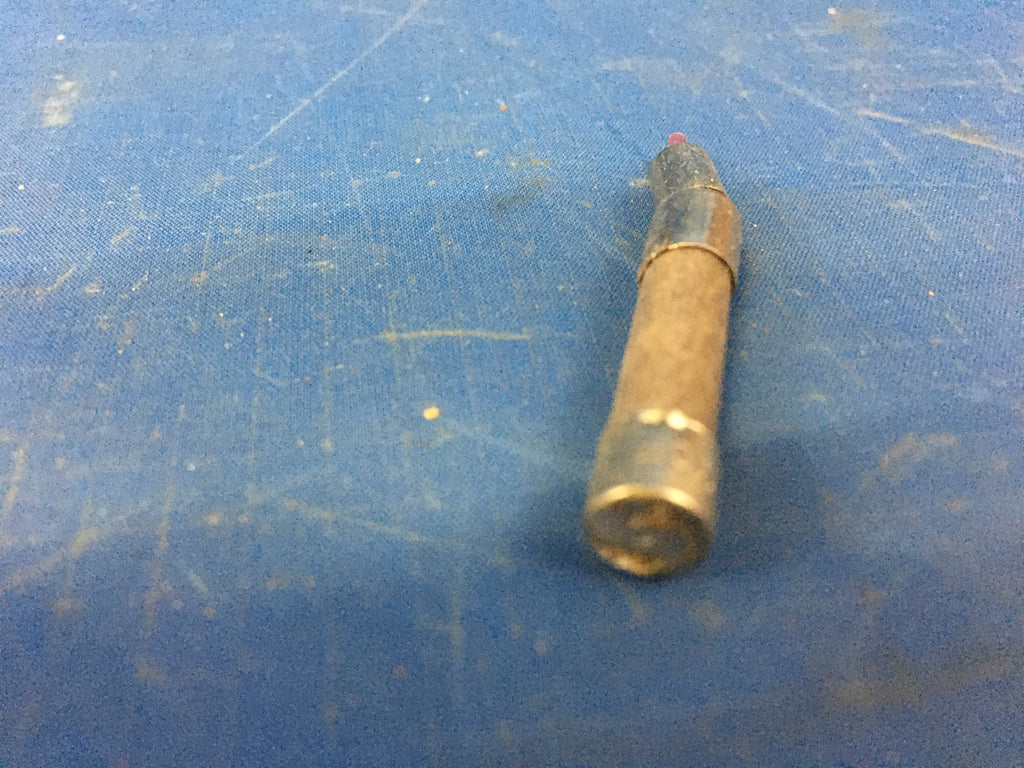

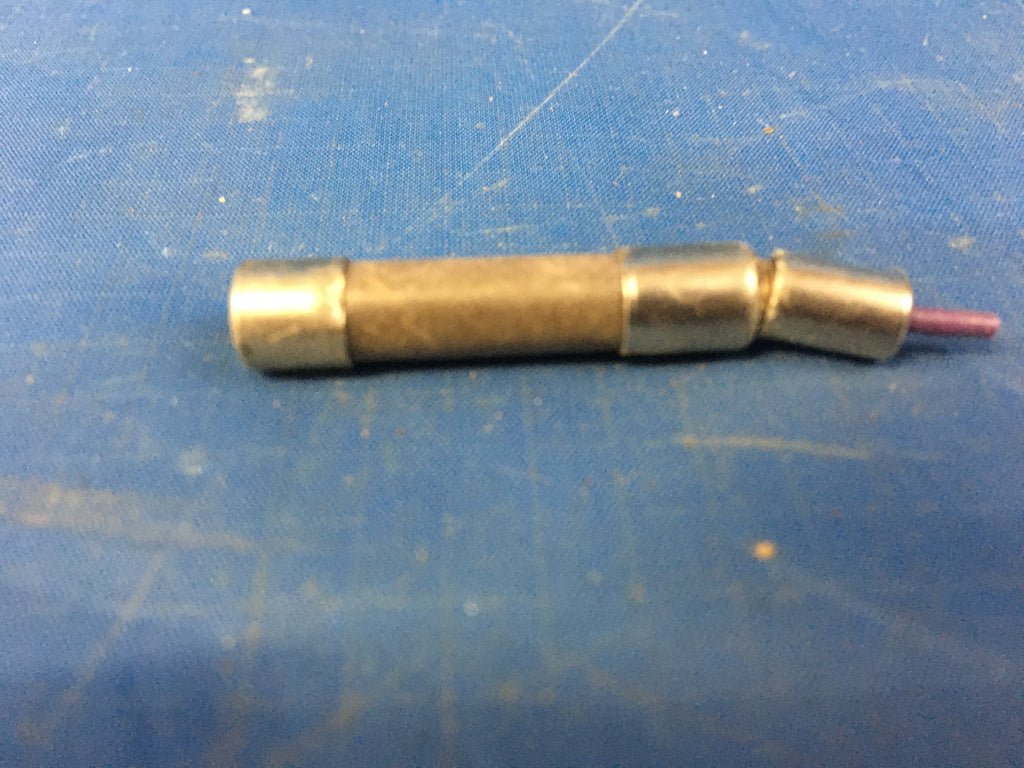

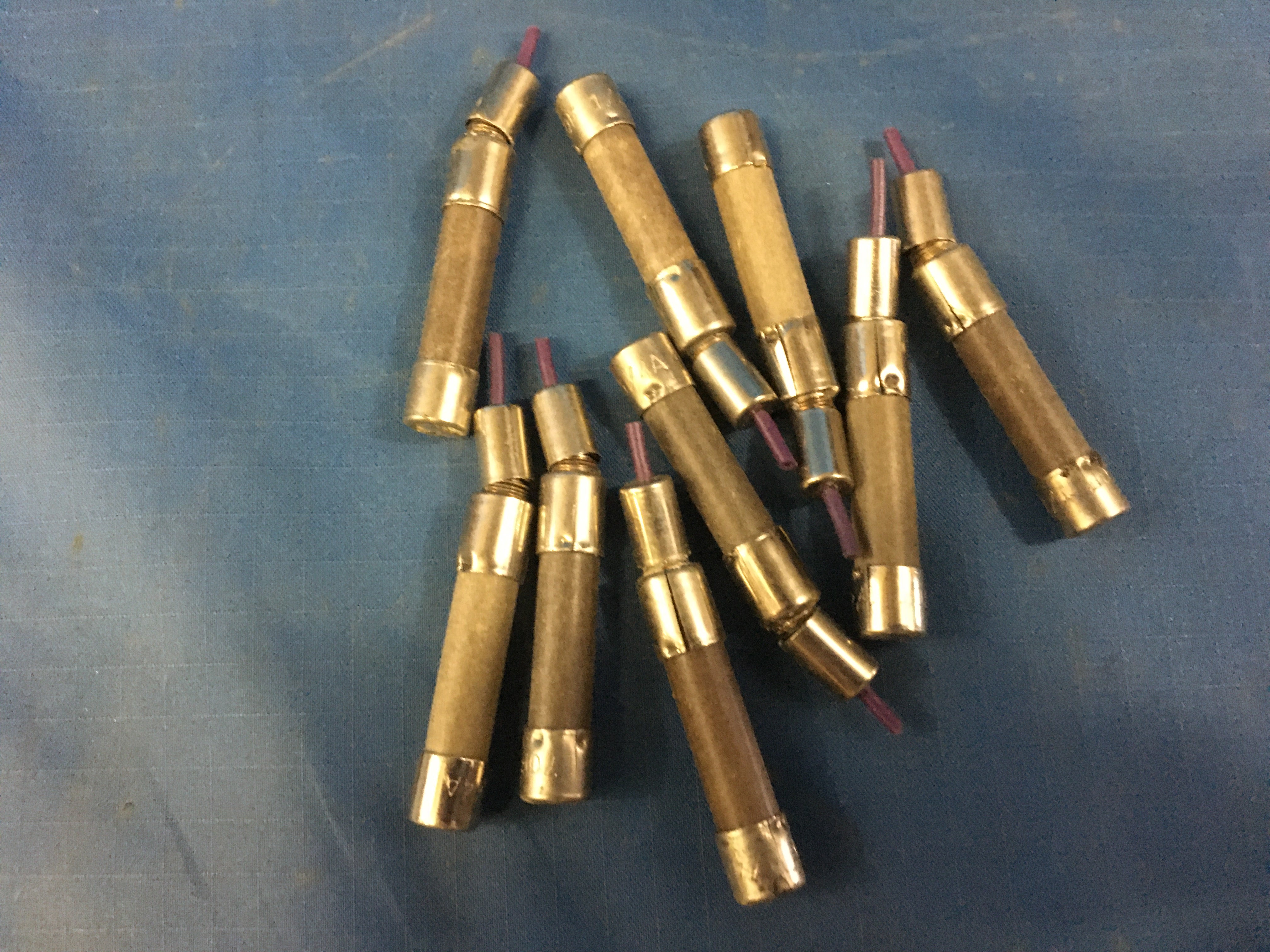

Cartridge Fuse

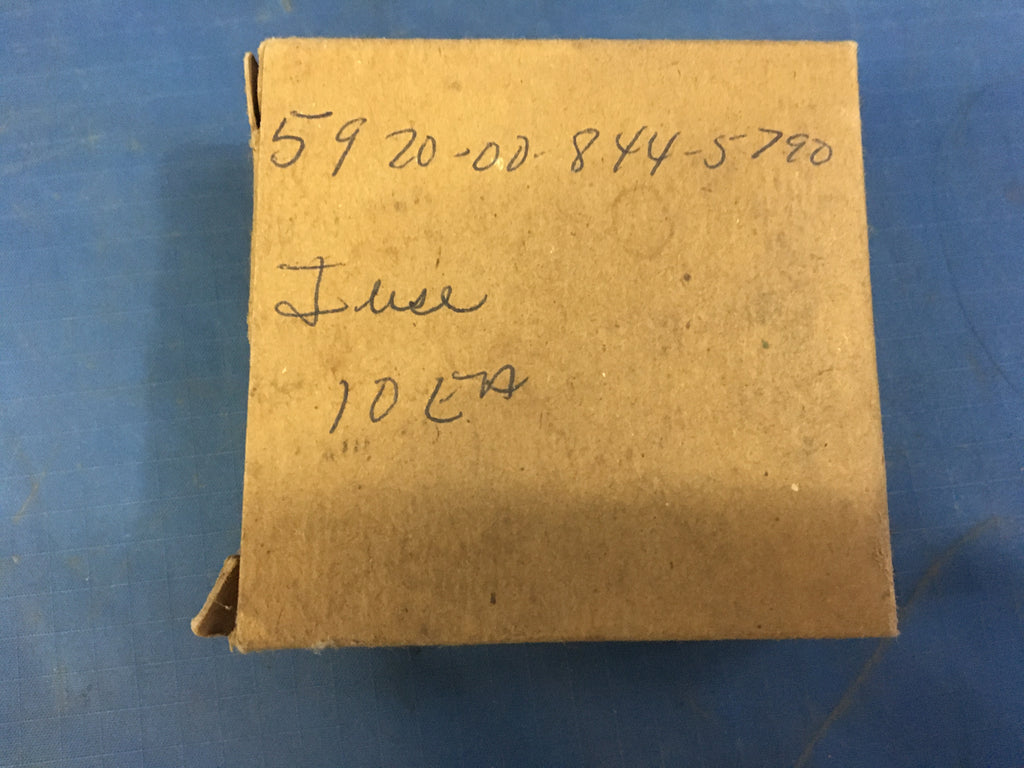

NSN: 5920-00-844-5790 Model: 2486-202
Replacements:
- 5920-00-844-5790 replaces 5920-00-102-1375
- 5920-00-844-5790 replaces 5920-00-519-8834
- 5920-00-844-5790 replaces 5920-00-795-2906
Schedule B & Trade:
- Schedule B: 8536100040 (NAICS 335313)
Fuses, except glass cartridge, for a voltage not exceeding 1, 000 v
- SITC: 77251
Fuses for electrical apparatus used with circuits not exceeding 1, 000 volts
- End Use: 20005
Electric apparatus
NSN Properties and Flags
NATO Stock Number
5920-00-844-5790
DEMIL
NO
Body Style
Plunger type
Terminal Material
Brass
Overall Length
Between 1.828 inches and 1.844 inches
Body Length
Between 1.250 inches and 1.282 inches
Overall Diameter
Between 0.266 inches and 0.276 inches
Case Material
Fiber
Continuous Current Rating In Amps
0.250
Maximum Voltage Rating In Volts
30.0 dc
Circuit Over-current Interruption Type
Time delay
Interruption Indicator Method
Opaque body
Features Provided
Renewable fusible element
Circuit Over-current Interruption Delay Time In Seconds
200.0 200 pct of current rating
Short-circuit/interrupt Current Rating In Amps
10000.0
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
