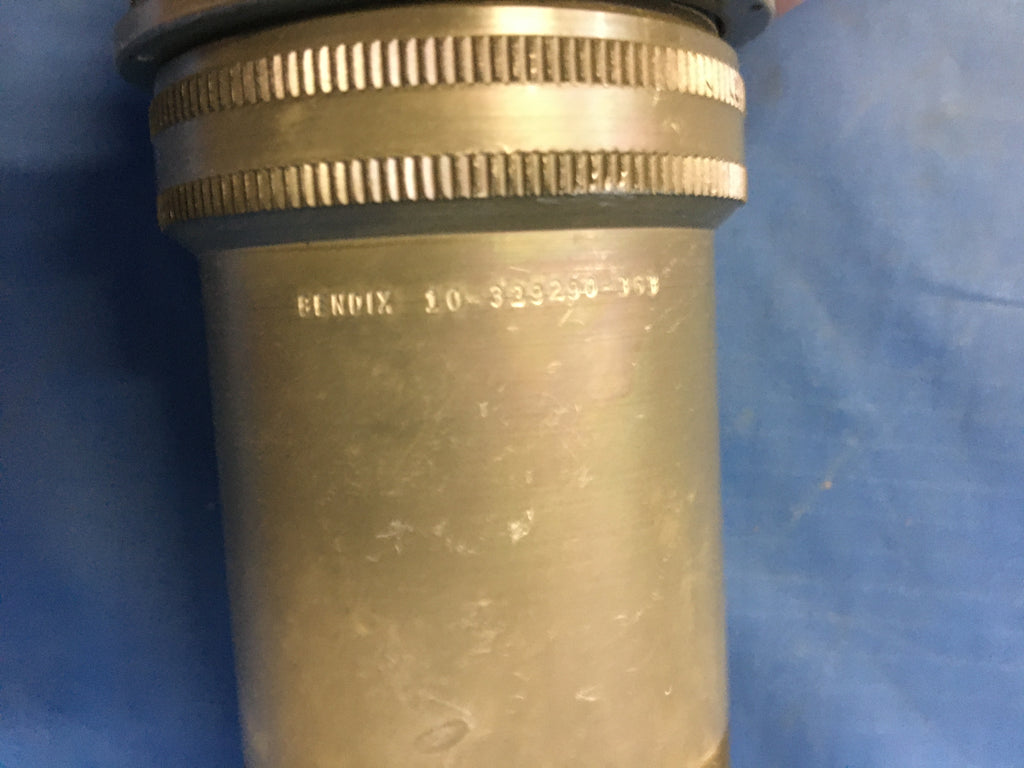

Bendix 10-214636-10N Electrical Plug Connector NSN:5935-00-950-1151
Please fill out the form below for a price quote and availability on this item.
Electrical Plug Connector
NSN:5935-00-950-1151 Model:10-214636-10N P/N:10-339290-363
Replacements:
- 5935-00-950-1151 replaces 5935-00-131-6729
- 5935-00-950-1151 replaces 5935-00-932-4580
- 5935-00-950-1151 replaces 5935-00-995-0192
Schedule B & Trade:
- Schedule B: 8536695050 (NAICS 335931)
Electrical plugs & sockets, for a voltage not exceeding 1, 000 v, nesoi
- SITC: 77258
Electric plugs and sockets, for voltages not exceeding 1, 000 volts
- End Use: 20005
Electric apparatus
NSN Properties and Flags
NATO Stock Number
5935-00-950-1151
DEMIL
Yes - ITAR Controlled
Thread Class
2b
Thread Direction
Right-hand
Body Style
Straight shape, internal coupling w/strain relief
Body Length
5.832 inches
Overall Diameter
2.463 inches
Cable Entrance Diameter
Between 0.922 inches and 1.375 inches
Threaded Device Type
Coupling facility
Mating End Quantity
1
Contact Position Arrangement Style
36-10 single mating end
Contact Removability
Removable single mating end single contact grouping
Contact Maximum Current Rating In Amps
13.0 single mating end single contact grouping
Contact Maximum Ac Voltage Rating In Volts
500.0 single mating end single contact grouping
Contact Maximum Dc Voltage Rating In Volts
700.0 single mating end single contact grouping
Polarization Method
Keyway or multiple keyway
Insert Position In Deg
80.0
Shell Type
Solid
Connector Locking Method
Internally threaded coupling ring
Connector Cable Strain Relief Method
Cable clamp
Thready Qty Per Inch (tpi)
16
Thread Size
2.250 inches
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping and nickel single mating end single contact grouping
Insert Material
Rubber single mating end
Terminal Type
Crimp single mating end single contact grouping
Shell Material
Aluminum alloy
Shell Surface Treatment
Cadmium and chromate
Shell Surface Treatment Specification
Qq-p-416, type 2, class 3 federal specification all treatment responses
Included Contact Quantity
48 single mating end single contact grouping
Included Contact Type
Round socket single mating end single contact grouping
Precious Material And Location
Contact surfaces gold
Precious Material And Weight
0.048 gold grains, troy
Precious Material
Gold
Thread Series Designator
Uns
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
