NSN 5930-00-259-8961

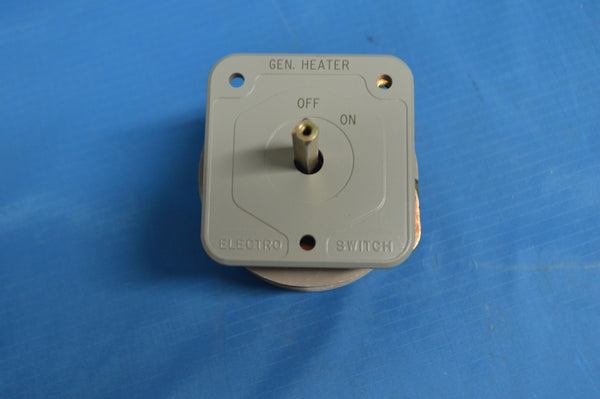

Electro Switch Co Rotary Switch 2 Position P/N24202G 002 NSN5930-00-259-8961
Regular price
$34.99
Rotary Switch
SKU: 5930002598961 | Model: C10309![NSN 5930-00-259-8961 Code39 Barcode NSN 5930-00-259-8961](https://nationalstocknumber.info/public/images/nsn/5930-00-259-8961.png)
Specifications from the Manufacturer
Thread Class:
2b single mounting facility
Hazardous Locations/environmental Protection:
Shock resistant and vibration resistant
Overall Length:
3.688 inches nominal
Overall Height:
3.750 inches nominal
Overall Width:
2.188 inches nominal
Individual Section Quantity:
6
Longest Horizontal Distance Between Mounting Centers:
1.641 inches nominal single mounting facility
Longest Vertical Distance Between Mounting Centers:
1.641 inches nominal single mounting facility
Switch Contact Basic Design:
Nonpile-up nonsymmetrical
Mounting Method:
Bracket single mounting facility and threaded hole single mounting facility
Features Provided:
Actuator knob
Thread Quantity Per Inch:
24 single mounting facility
Nominal Thread Size:
0.190 inches single mounting facility
Contact Voltage Rating In Volts:
125.0 ac at sea level
Contact Voltage Rating In Volts:
120.0 dc at sea level
Mounting Facility Pattern:
Four position rectangular single mounting facility
Switch Actuator Indexing Position Quantity:
4 single actuator
Terminal Type:
Threaded stud
Switch Actuator Positioning Increment:
90.0 degrees single actuator
Contact Load Current Rating:
10.0 amperes resistive load ac at sea level
Contact Load Current Rating:
10.0 amperes resistive load dc at sea level
Style Designator:
Tap, circuit selector
Test Data Document:
81349-mil-s-15291 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.).
Thread Series Designator:
Unc single mounting facility
Specification/standard Data:
81349-mil-s-15291/1 government specification
