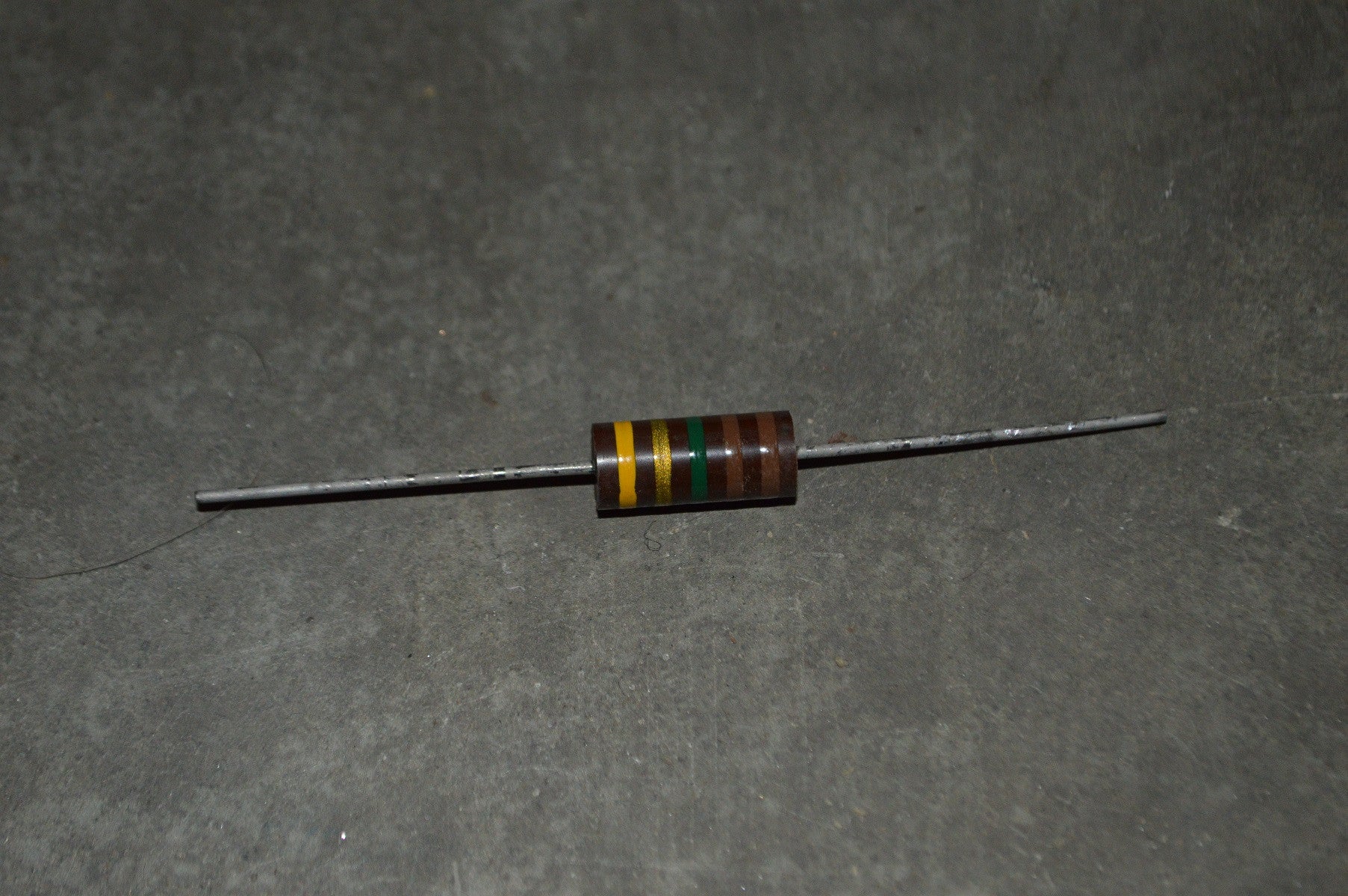

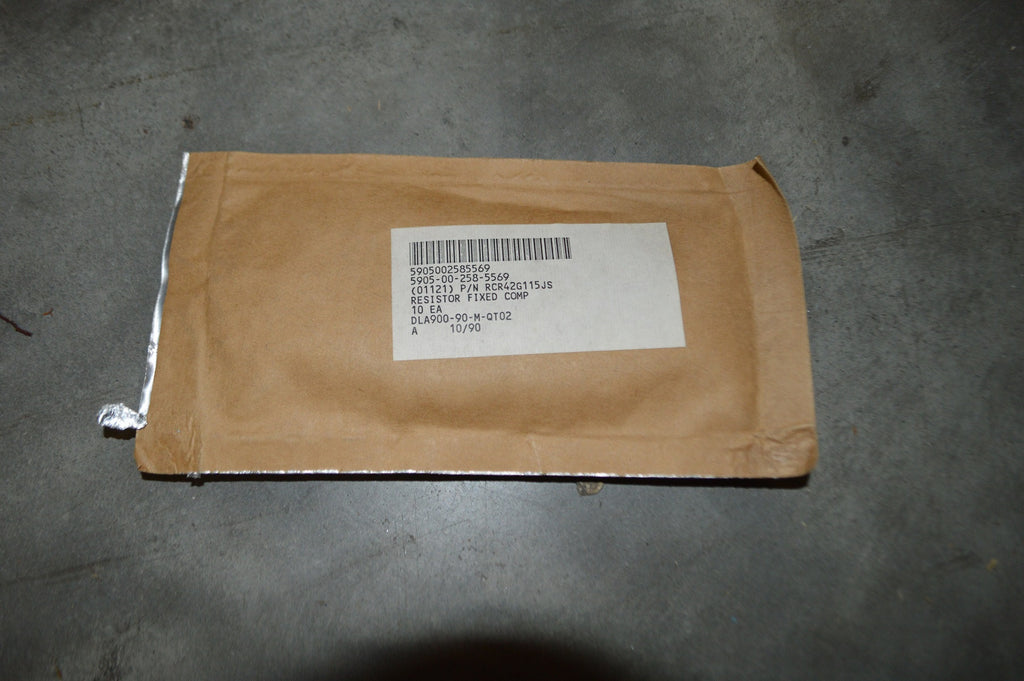

Fixed Composition Resistor NSN:5905-00-258-5569 P/N:35-266391-3
Please fill out the form below for a price quote and availability on this item.
Fixed Composition Resistor- A resistor whose ohmic value cannot be adjusted or varied. the resistance element consists of a mixture of carbon, an insulating material, and suitable binders, either molded together or applied as a thin layer of conducting material on an insulated form. the opposition to the flow of current is an inherent property of the materials used and is manifest by the heat dissipation in the item itself. see also attenuator, fixed; resistor, fixed, film; and resistor, thermal. excludes suppressor, ignition interference.
| Electrical Resistance: | 1.100 megohms |
| Ambient Temp In Deg Celsius At Full Rated Power: | 70.0 |
| Ambient Temp In Deg Celsius At Zero Percent Rated Power: | 130.0 |
| Body Diameter: | 0.318 inches nominal |
| Body Length: | 0.688 inches nominal |
| Inclosure Method: | Encapsulated |
| Reliability Indicator: | Not established |
| Resistance Tolerance In Percent: | -5.000/+5.000 |
| Power Dissipation Rating In Watts: | 2.000 free air |
| Specification/standard Data: | 81349-mil-r-39008/5 government specification |
| Style Designator: | Axial terminal each end |
| Terminal Length: | 1.500 inches nominal |
| Terminal Type: | Wire lead |
| Test Data Document: | 81349-mil-r-39008 specification (includes engineering type bulletins, brochures,etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "nominal", etc.). |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
