General Dynamics Land Systems
General Dynamics Land Systems Wiring Harness NSN: 6150-01-461-4674 Model: LSCP260340
Regular price
$189.99

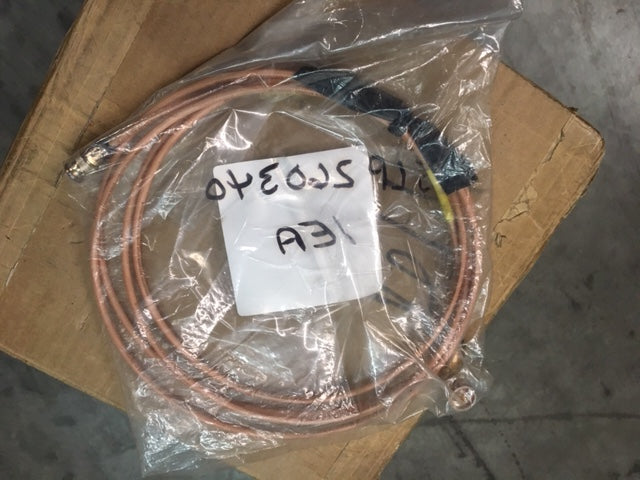

Wiring Harness
NSN: 6150-01-461-4674 | Model: LSCP260340![ITAR Registered company ITAR Registered seal](https://nationalstocknumber.info/public/images/xitar.png.pagespeed.ic.fKDy9An-gD.webp)
NSN Properties and Flags
NATO Stock Number

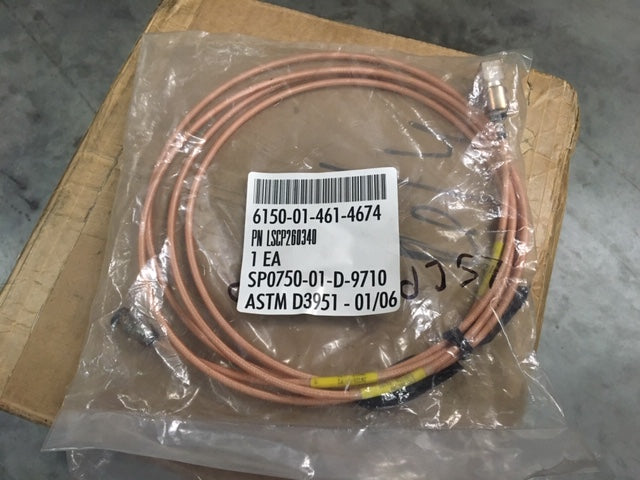

6150-01-461-4674
DEMIL
Yes - ITAR Controlled
End Application
5420-01-430-5403
Termination Type

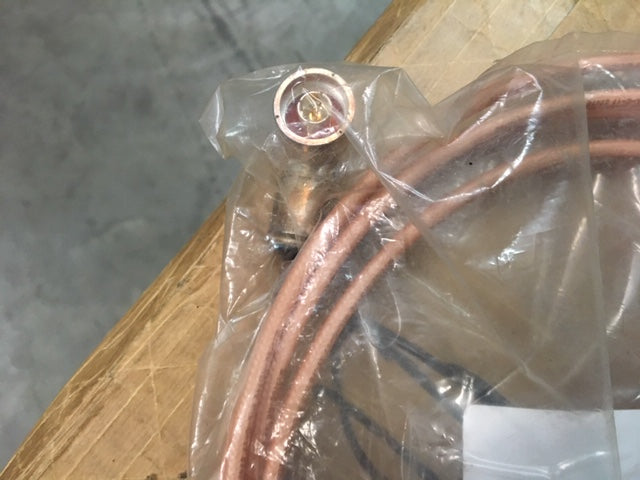

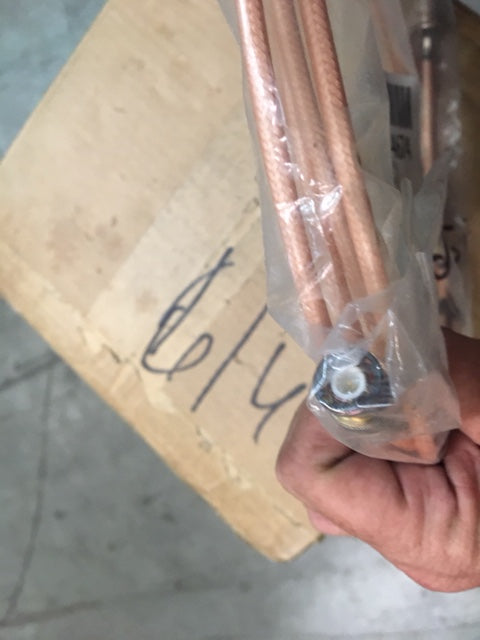

Connector plug all ends single conductor
Binding Method
Sleeve
Conductor Quantity
1
Strand Quantity Per Conductor
7 single conductor
Criticality Code Justification
Matt
Conductor Form
Stranded single conductor
Part Name Assigned By Controlling Agency

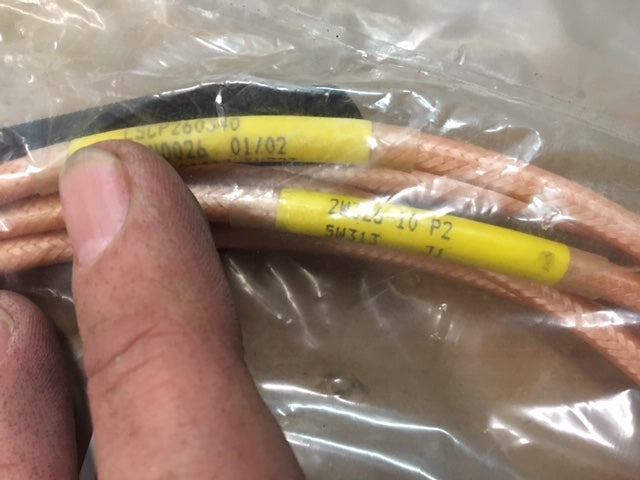

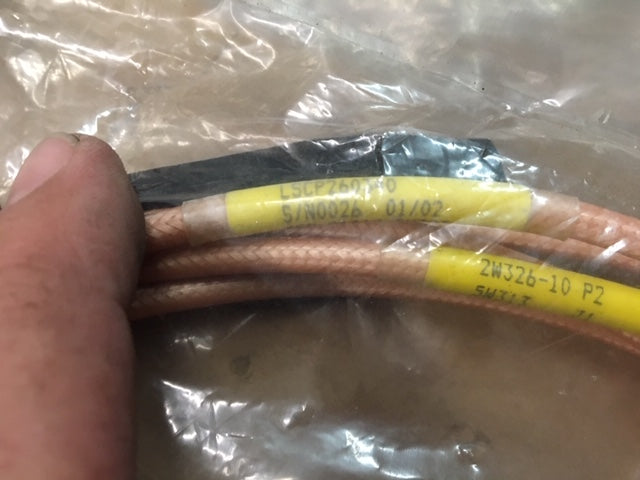

Wiring harness assembly 2W326-10
Strand Awg Size Per Conductor
20 all conductors
Conductor Arrangement And Quantity
1 coaxial
Special Features
Drawing depicts an electromagnetic radiation (emi/emc and nuclear emp) critical configuration emr design changes to the wiring harness installation; locations, shielding or method of bonding and grounding must be evaluated by the activity responsible for emr protection prior to implementation
Material
Copper core conductor single conductor
FOR US WITH
