GLENAIR

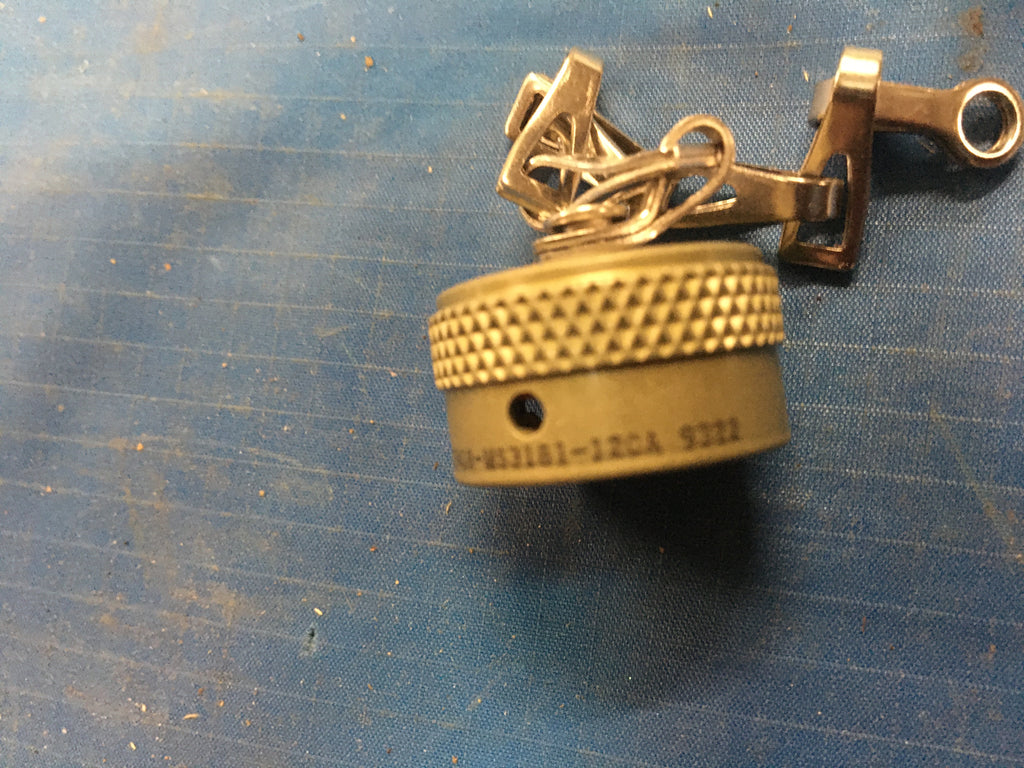

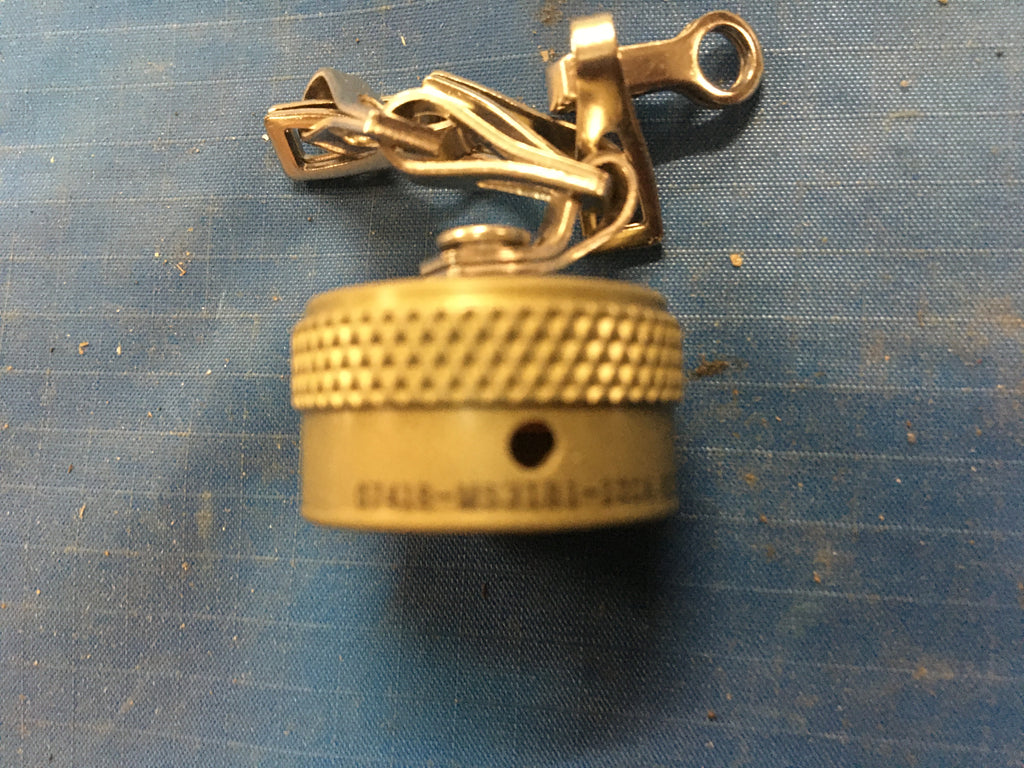

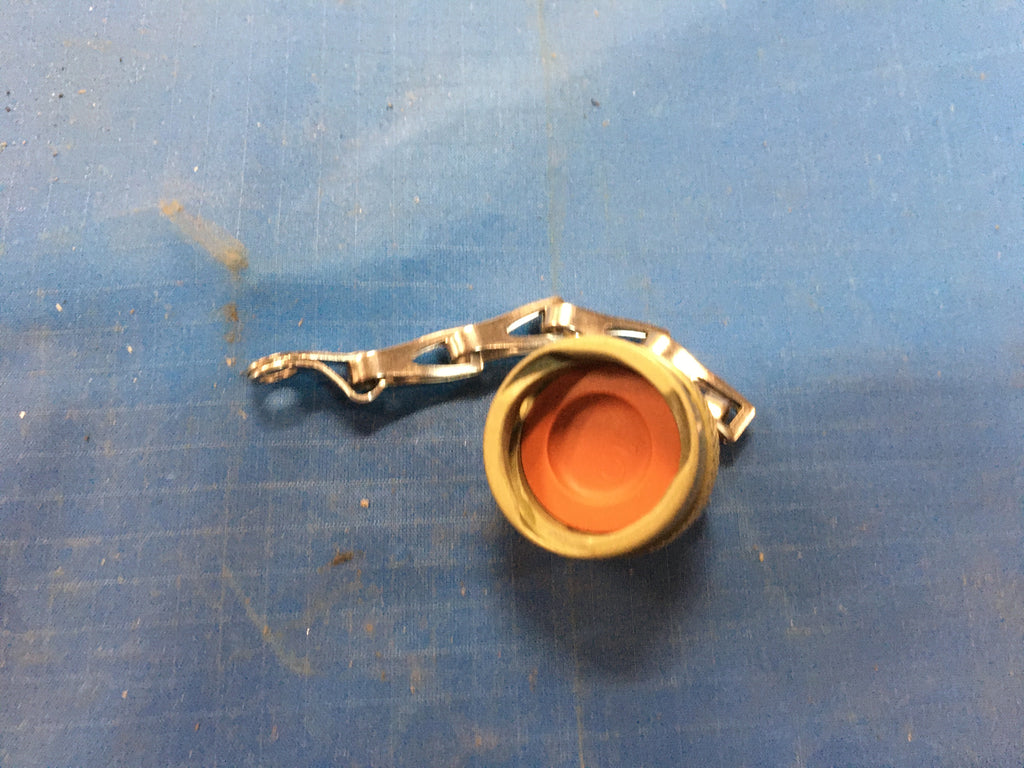

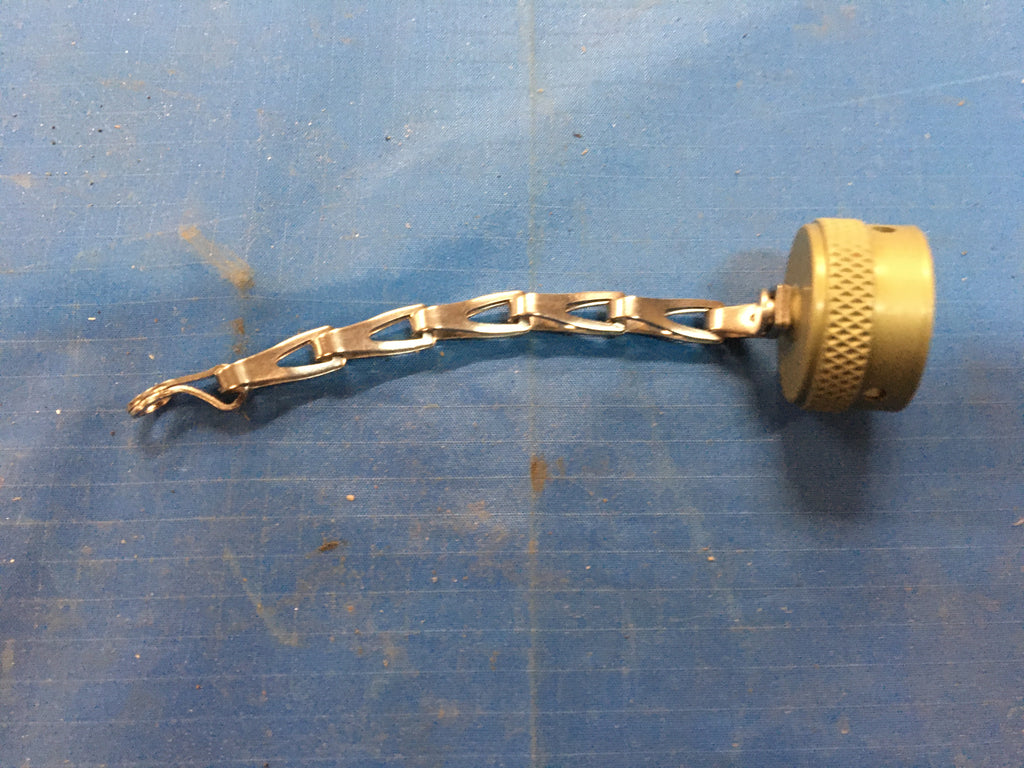

Glenair MS3181-12CA Electrical Connector Cover NSN:5935-01-117-6376
Regular price
$6.99
Electrical Connector Cover
NSN: 5935-01-117-6376 | Model: MS3181-12CAA device specifically designed to fully or partially in close an electrical connector to protect its mating end from mechanical damage. Excludes cap, electrical; cap, protective, dust and moisture seal; and guard, electrical connector. See also cover and guard, electrical connector; shell, electrical connector; and shield, electrical connector.
NSN Properties and Flags
NATO Stock Number
5935-01-117-6376
DEMIL
Yes - ITAR Controlled
Eye Inside Diameter
Between 0.162 inches and 0.177 inches
Seal Material
Rubber, silicone base
Furnished Items
Chain
Body Height
0.562 inches
Overall Diameter
1.000 inches
Attachment Feature Length
Between 3.250 inches and 4.000 inches
Seal Type
Gasket
Mounting Facility Type And Quantity
1 bayonet lock
Material
Aluminum alloy
Material
Aluminum alloy
Surface Treatment
Anodize
Style Designator
Internal bayonet w/chain or rope
Surface Treatment
Anodized
Test Data Document
81349-MIL-C-26482 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
96906-MS3181 government standard
