Am General 12339392 HMMWV Alternator Pulley NSN:3020-01-232-9629
Please fill out the form below for a price quote and availability on this item.

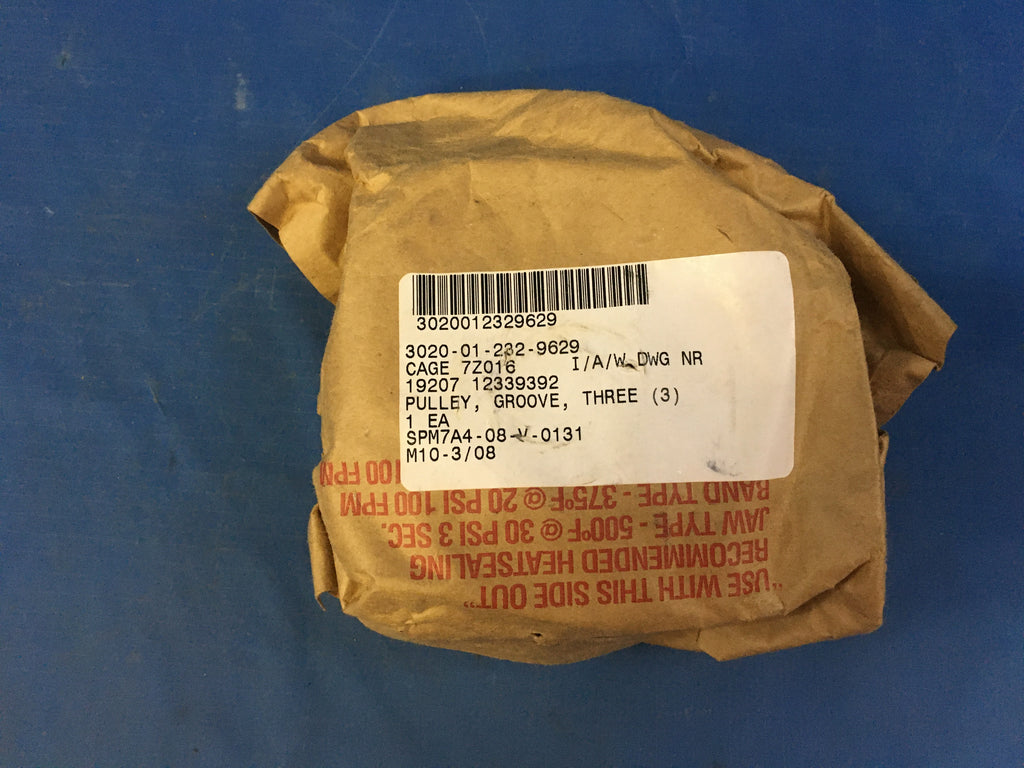

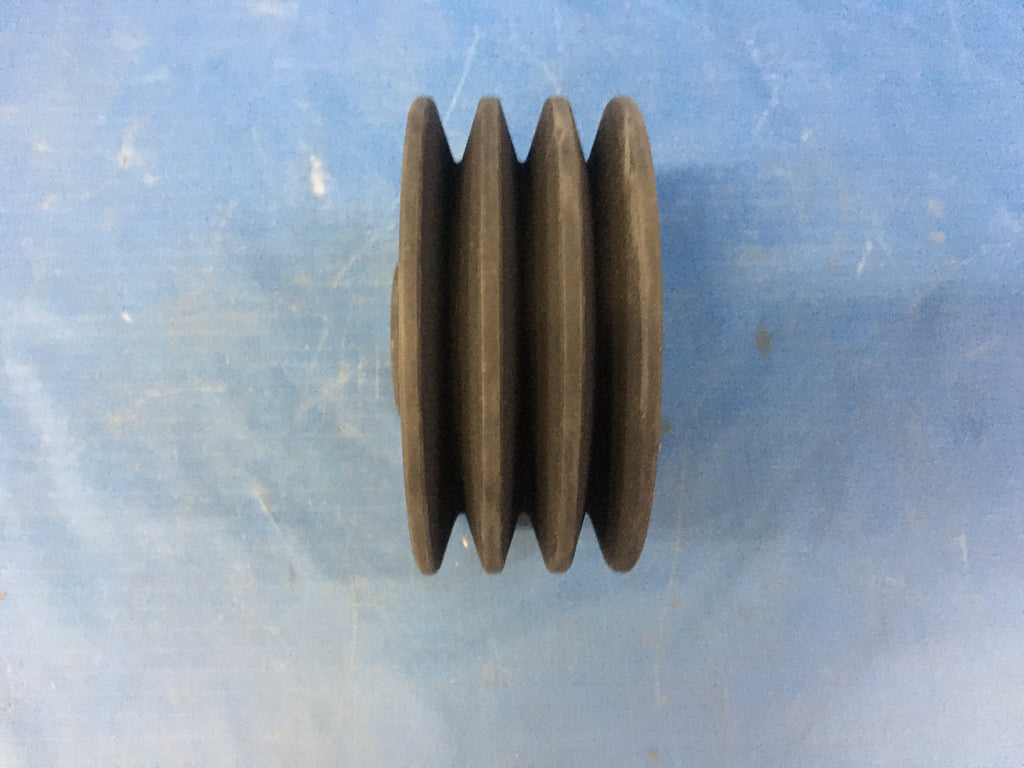

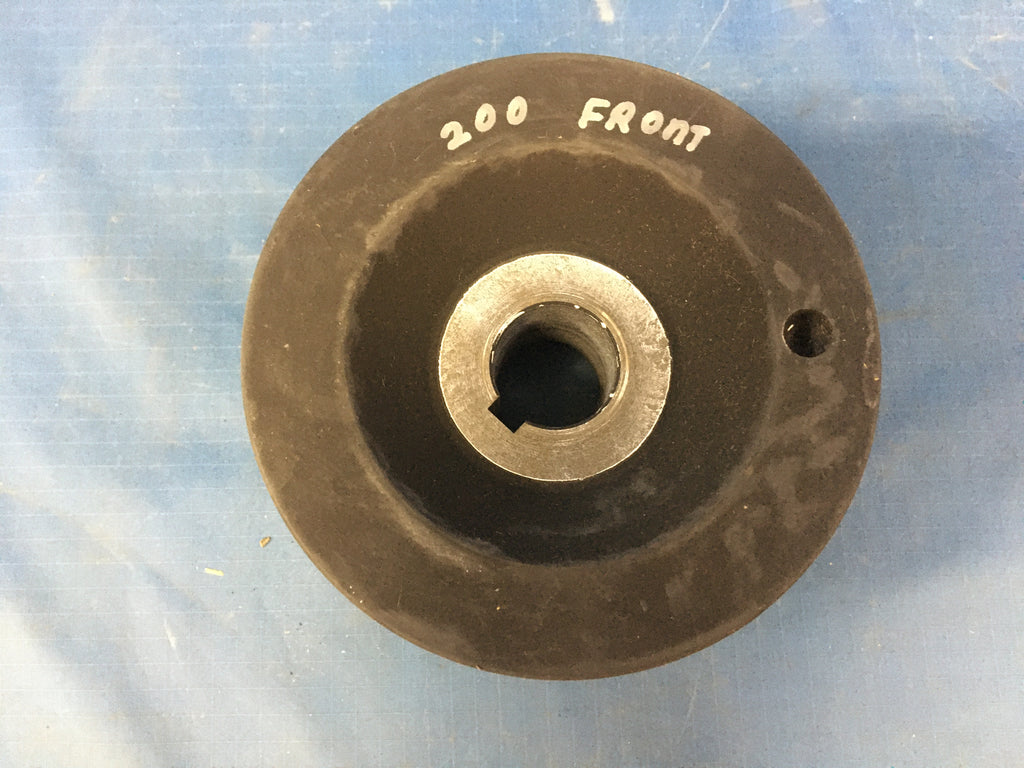

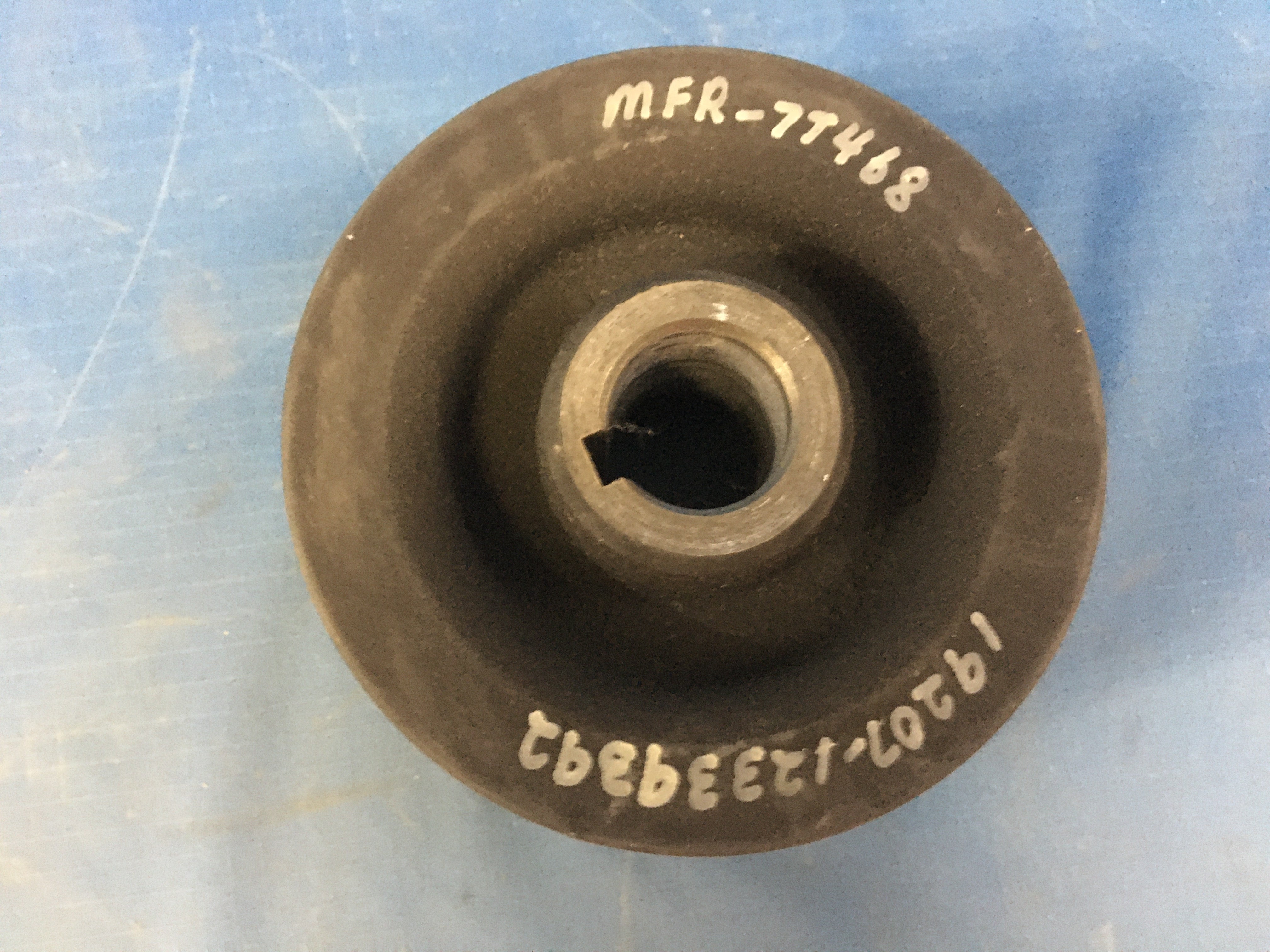

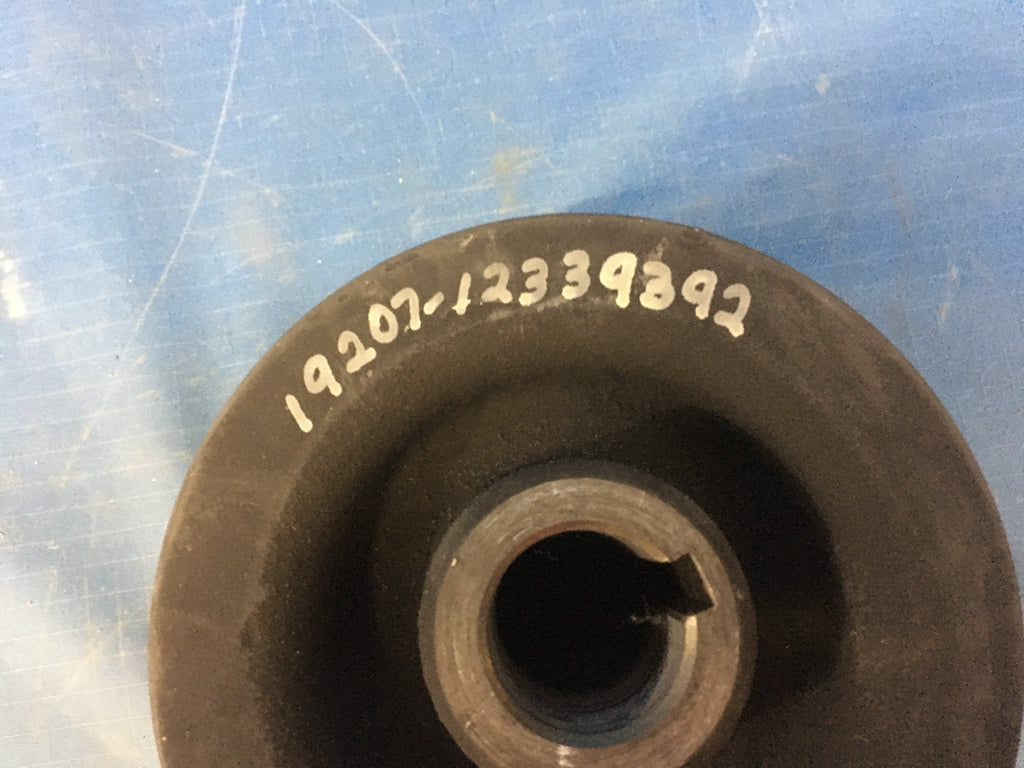

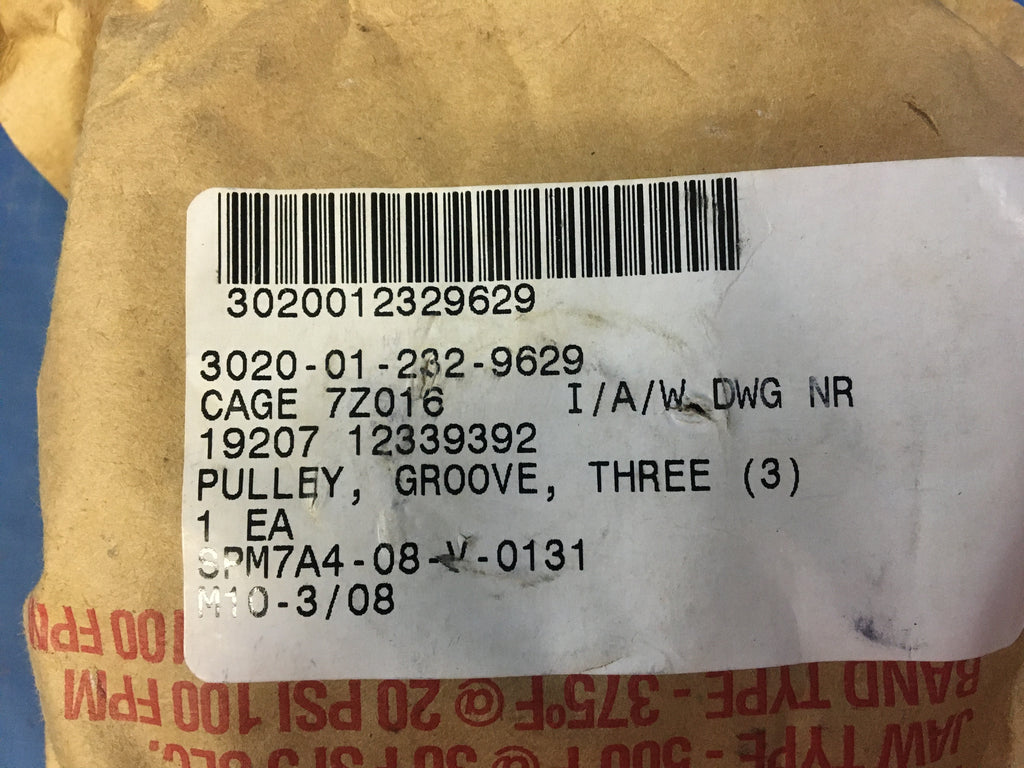

Groove Pulley
NSN: 3020-01-232-9629 Model: 12339392 P/N: 5594662 / 5583672
Replacements:
- 3020-01-232-9629 replaces 3020-01-199-2153
Schedule B & Trade:
- Schedule B: 8487900080 (NAICS 333999)
Machinery parts not containing electrical features, and not specified or included elsewhere in chapter 84, except ships' propellers
- SITC: 74999
Machinery parts, not containing electrical connectors, insulators, coils, contacts or other electrical features, n.E.S.
- End Use: 21180
Industrial machines, other
NSN Properties and Flags
NATO Stock Number
3020-01-232-9629
DEMIL
Yes - ITAR Controlled
Groove Depth
0.438 inches
Groove Width
0.380 inches
Outside Diameter
4.045 inches
Overall Length
1.950 inches
Keyway Width
Between 0.251 inches and 0.253 inches
Bore Diameter
0.875 inches
Bore Length
1.338 inches
Distance From Center Of Bore To Bottom Of Keyway
0.555 inches
V Groove Angle In Deg
36.0
Material And Location
Iron, ductile
Face Width
1.740 inches
Design Form
Webbed
Bore Type
Straight
Bearings
Not included
Groove Quantity
3
Counterbore Feature
Not included
Keying Facility
Not included
Keying Facility Type
Keyway
Securing Method
Key
Split Hub Feature
Not included
Lightening Hole
Included
Groove Shape
V
Bore Feature
Included
Protruding Hub Characteristic
Plain
Hub End Outside Diameter And Location
1.460 inches aa end
Distance From Outside Flange/rim To Hub End And Location
0.210 inches aa end
Quantity
1
Style Designator
Webbed or spoked
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
