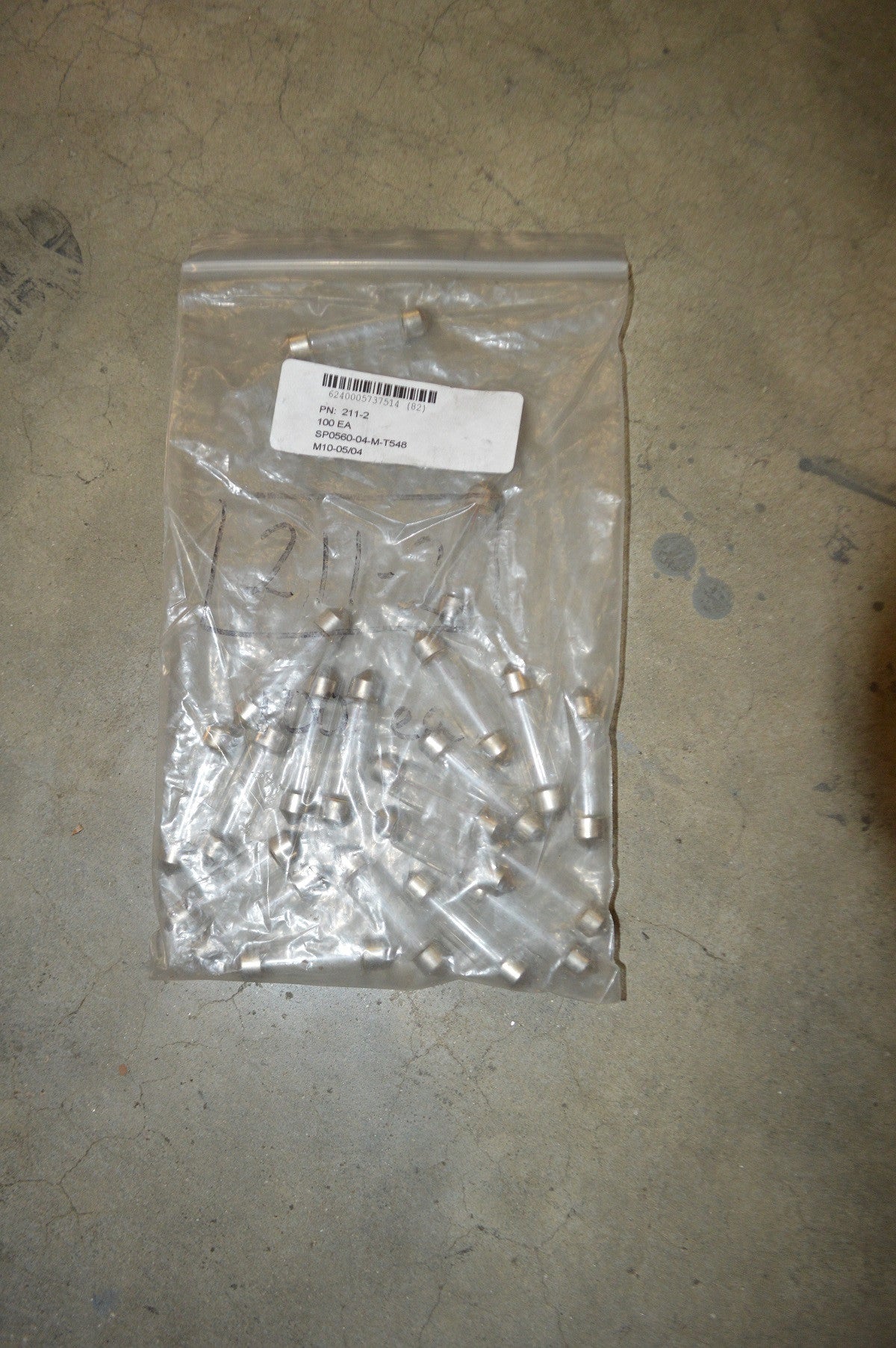

Incandescent Lamp NSN: 6240-00-573-7514 P/N: 211-2
Please fill out the form below for a price quote and availability on this item.
An item whose principal purpose is to produce light from a glowing filament(s). it includes metal backed and reflecting types, seal beam and flood types. it may include an integral filament shield to control and/or modify its illumination pattern.
| Emitted Light Characteristic: | Colorless |
| Average Life Rating In Hours: | 600.0 |
| Base Style: | Miniature cap cylindrical end |
| Bulb Designator: | T-3 |
| Bulb Light Transmission Characteristic: | Transparent |
| Bulb Style: | T (tubular) |
| Burning Position: | Any acceptable |
| Current Rating For Which Designed: | 0.970 amperes nominal |
| Filament Designation: | C-8 |
| Filament Heavy Duty Service Rating: | Not rated |
| Overall Length: | 1.670 inches minimum and 1.720 inches maximum |
| Light Output Rating: | 12.000 lumens nominal single rating |
| Rated Average Life: | Hours |
| Voltage Rating: | 12.800 volts nominal |
| Wattage Rating: | 13.196 watts |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
