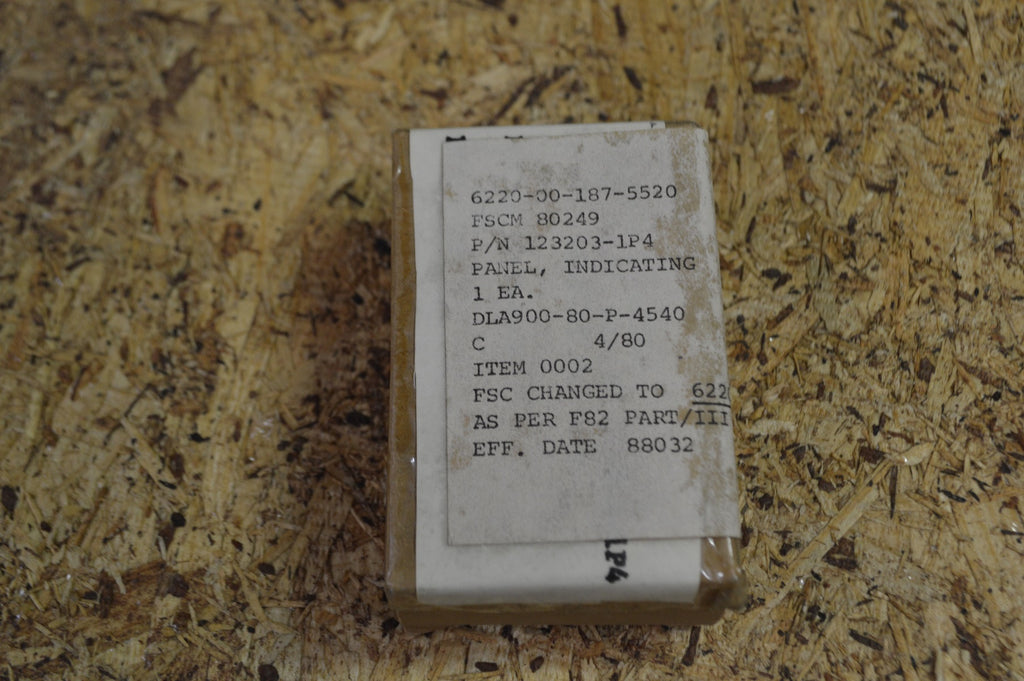

Indicating Panel NSN:6220-00-187-5520 P/N:123203-1P4
Please fill out the form below for a price quote and availability on this item.
Indicating Panel- An item composed of a coated transparent or partly transparent/partly opaque materiels, engraved with letters, words and/or symbols, designed to allow light to be transmitted through the engraving(s) for indicating purposes. it may have an electrical lighting circuit either on a removable printed circuit board or embedded within the panel. the circuit may have removable or nonremovable electroluminescent and/or incandescent lamps for lighting. dials and/or switches may be included. excludes display, optelectronic. see also indicator (as modified), and light (1), indicator
| For Use With/On: | Control,display,control-indicator group,radar and identification friend or foe |
| Overall Length: | 18.100 inches nominal |
| Overall Thickness: | 0.197 inches minimum and 0.243 inches maximum |
| Overall Width: | 6.700 inches nominal |
| Panel Material: | Plastic, mil-p-5425 |
| Special Features: | Finish colors iaw fed std 595,translucent white,color 37875 and lusterless opaque gray,color 36231 |
| Special Markings: | Umd |
| Surface Treatment: | Paint |
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
