MACOM
NSN 6625-01-031-6084

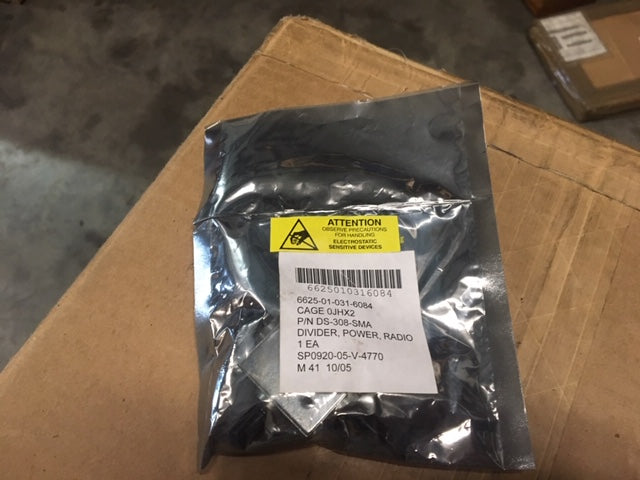

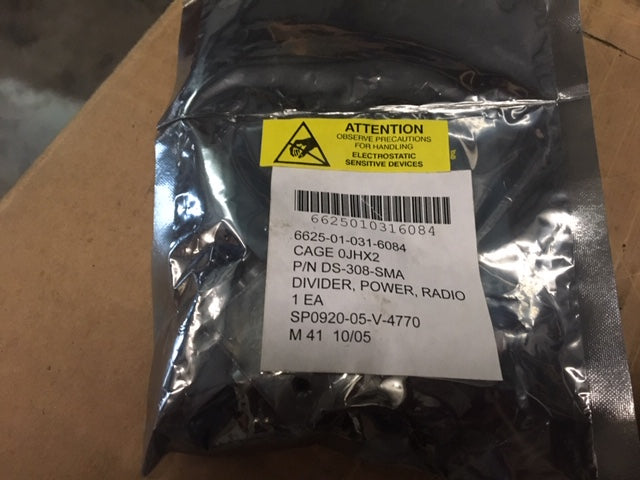

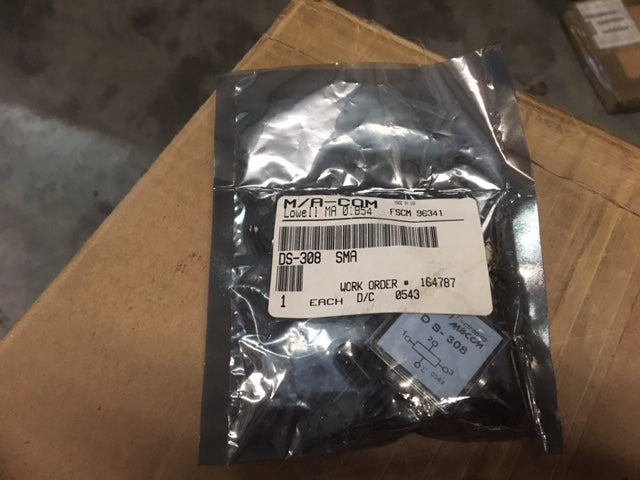

Macom DS-308-SMA Radio Frequency Power Divider 1-300mhz NSN:6625-01-031-6084
Regular price
$24.99
Radio Frequency Power Divider
SKU: 6625010316084 | Model: DS-308(8234)NSN 6625-01-031-6084
Specifications from the Manufacturer
Special Features:
Afrequency range 1.0 to 300.0 mhz,minimum isolation 30 db from 2.0 to 200.0 mhz and 20 db from 1.0 to 300.0 mhz,maximum insertion loss above 4.8 db power split 0.75 db from 2.0 to 200.0 mhz and 1.0 db from 1.0 to 300.0 mhz,maximum vswr 1.3 to 1 from 2.0 to 200.0 mhz and 1.5 to 1 from 1.0 to 300.0 mhz,50.0 ohms impedance,2.0 watts maximum input power,operating temperature range minus 55.0 to plus 85.0 degrees c,1.344 in. lg,1.344 in. w,0.750 in. h
