MATCO-NORCA

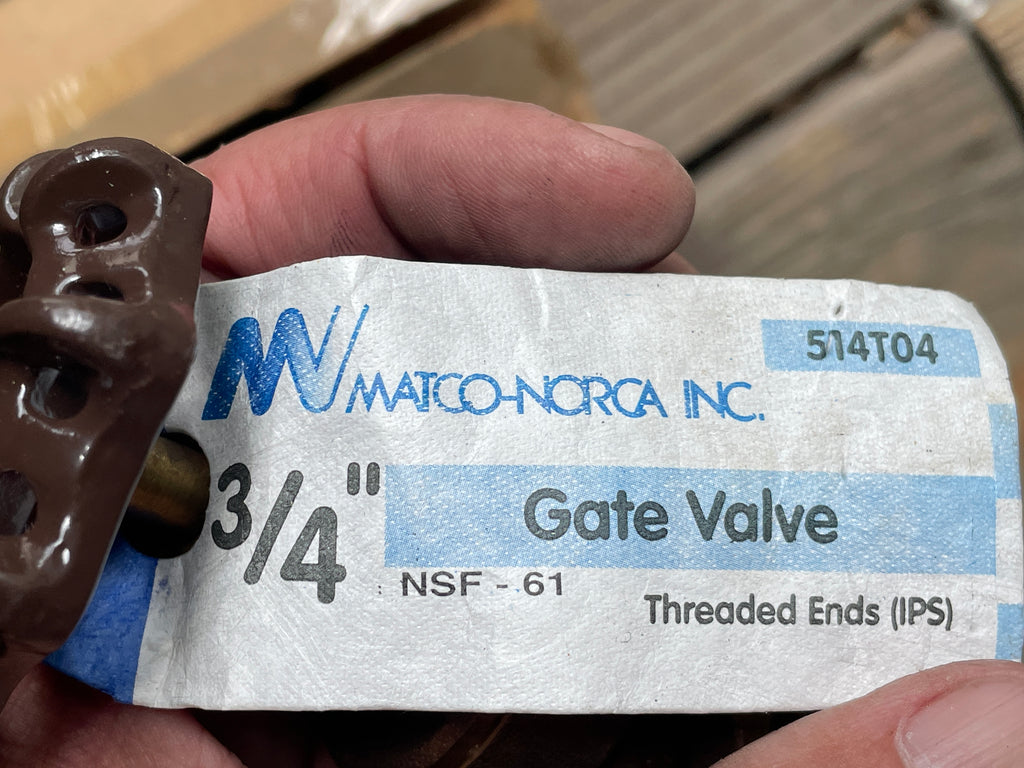

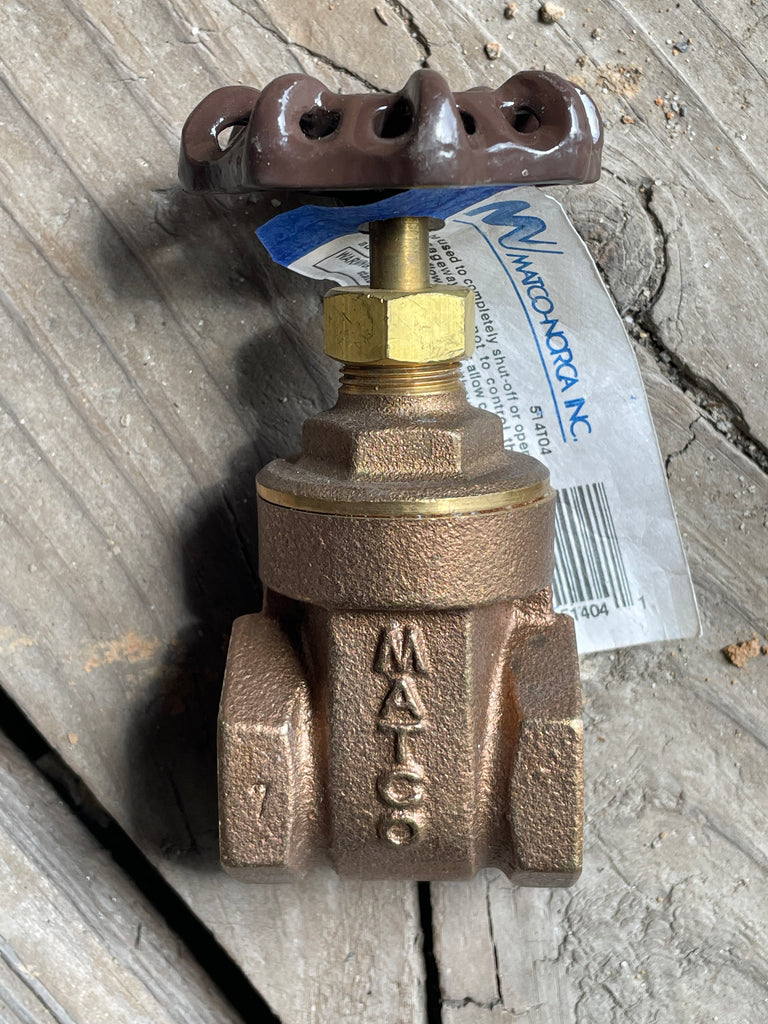

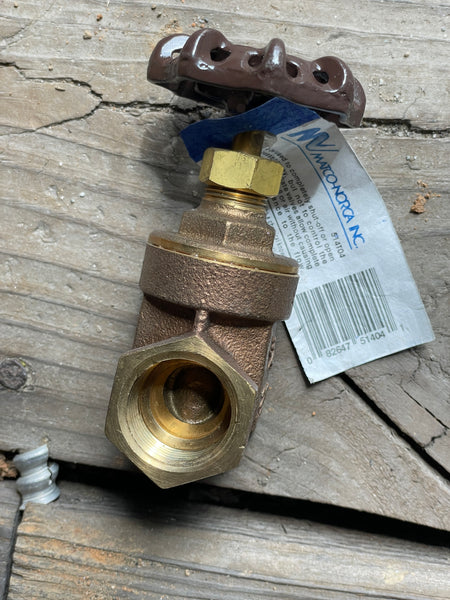

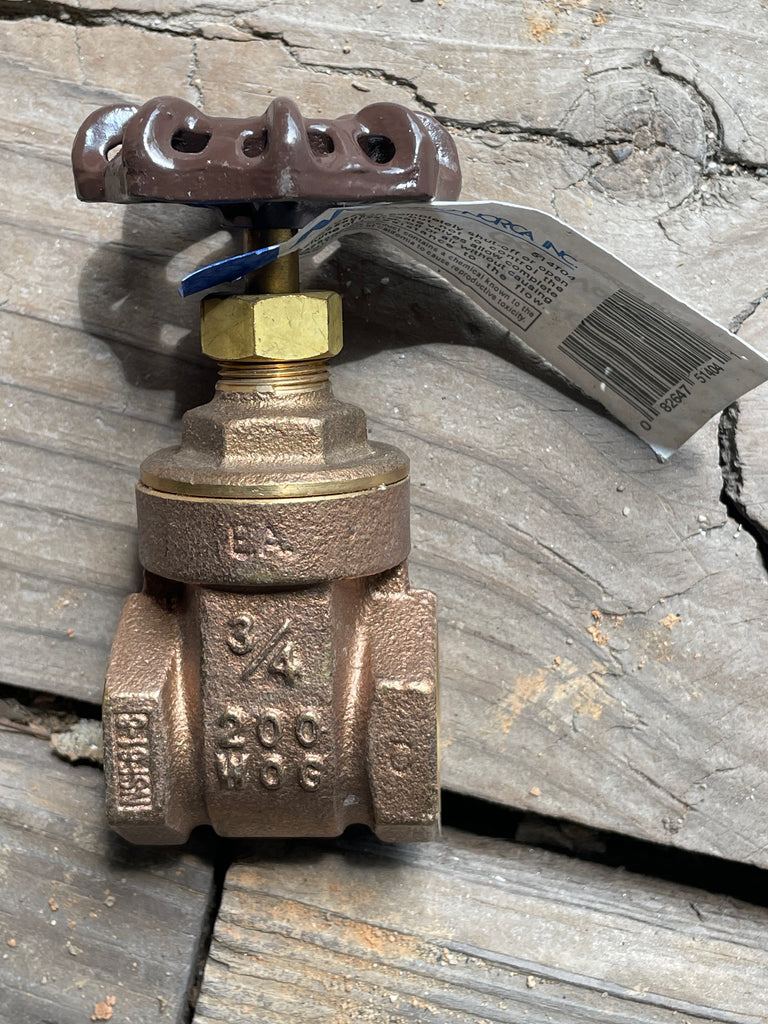

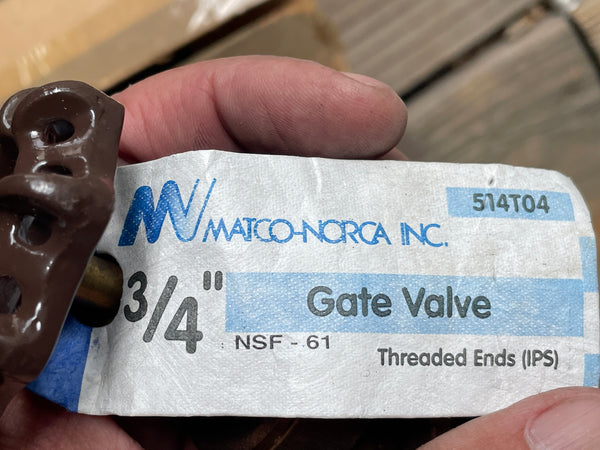

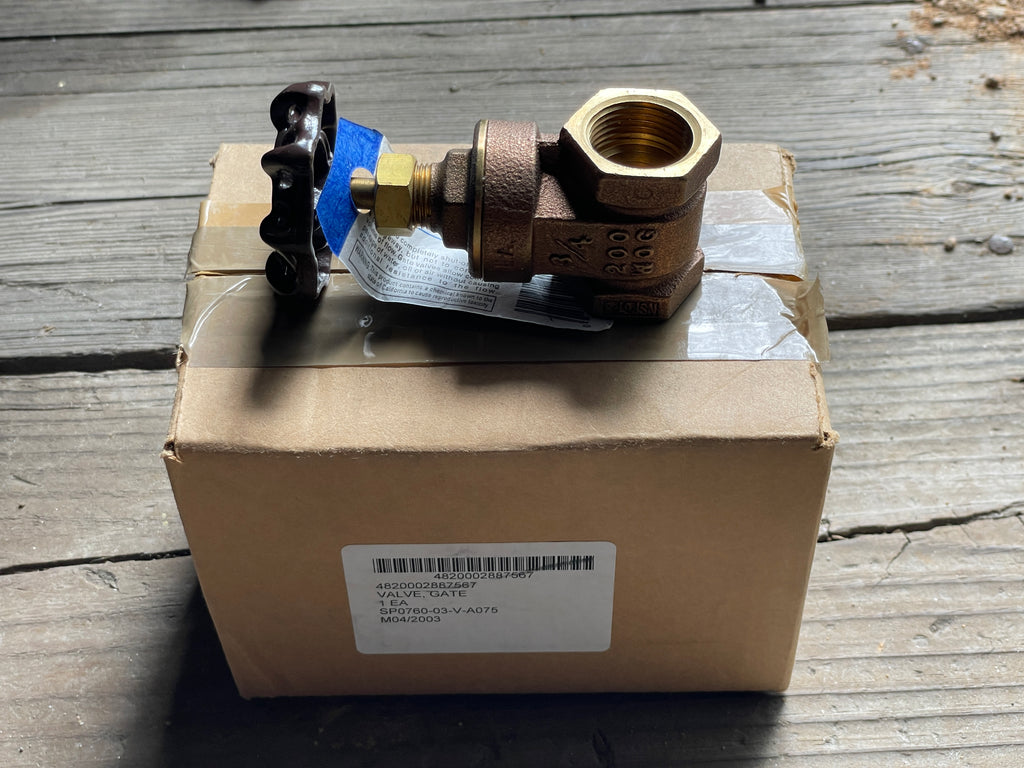

MATCO-NORCA 514T04 3/4" GATE VALVE, THREADED ENDS (IPS) LEAD FREE
Regular price
$14.99
Gate Valve
A valve having a flat or tapered disk (gate) which moves transversely to the axis of flow by rotating or sliding movements of the stem to open or close the orifice. It may also contain an oval or rectangular shaped slide which may be manually, motor, or pressure operated through the means of an arm or arm assembly. The body flange may be designed to accommodate tube type connectors. It may or may not contain thermal relief features. Includes valve (gate) specifically designed for the control of fluid systems in aircraft or missiles.
NSN Properties and Flags
NATO Stock Number
4820-00-288-7567
DEMIL
NO
Bonnet Type
Inside screw
Bonnet Attachment Method
Union
Valve Operation Method
Manual
Connection Type
Threaded internal pipe
Features Provided
Bonnet packing
Valve Size
0.750 inches
Maximum Operating Pressure And Media For Which Designed
125.0 pounds per square inch steam and 200.0 pounds per square inch water-oil-gas
Thread Size
0.750 inches
Stem Type
Rising
Maximum Operating Tempurature And Media For Which Designed
406.0 degrees fahrenheit steam and 150.0 degrees fahrenheit water-oil-gas
Inlet Relationship With Outlet
Identical
Material
Graphite seat
Material Specification
Astm b-62 assn standard single material response disk
Supplementary Features
This item has been reviewed for asbestos material. The current approved sources 82666 have indicated their part number contained asbestos prior to 1984. They continue to manufacture the same part number without asbestos material after 1984
Thread Series Designator
Npt
Furnished Items And Quantity
1 handwheel
Nondefinitive Specification/std Data
2; jst1; jcla type
