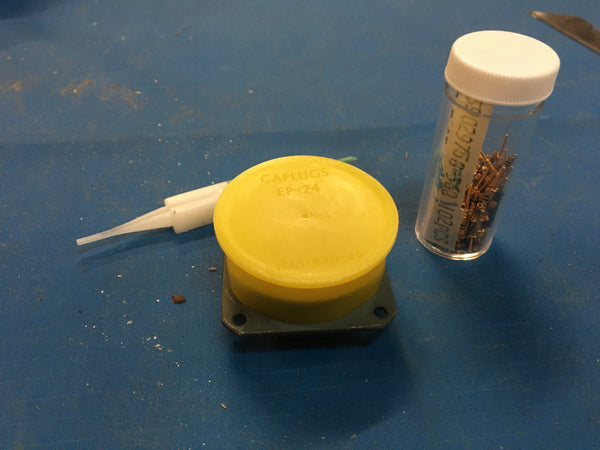

Military Spec Electrical Receptacle Connector Model:MS27499E22B35P NSN:5935-00-090-8256
Military Specifications

Military Spec Electrical Receptacle Connector Model:MS27499E22B35P NSN:5935-00-090-8256

$39.99

Electrical Receptacle Connector

NSN: 5935-00-090-8256 | Model: MS27499E22B35P
ITAR Registered seal

An electrical fitting with electrical contacts constructed to be affixed to the end of a cable, conduit, coaxial line, cord, wire (includes printed/etched), printed wiring board, or the like for convenience in joining with another electrical connector (s) or printed wiring board. It is designed to be mounted on a bulkhead, chassis, panel, wall, printed wiring board, or the like. Excludes lamp holder jack, telephone; jack, tip; insert electrical connector; insert module, electrical connector; connector body (as modified) and socket, plug-in electronic components. See also wiring harness (as modified) and cable assembly (as modified) . For items with termination wires of more than four inches in length, see lead assembly, electrical. For items without inserts, see shell, electrical connector.

NSN Properties and Flags
NATO Stock Number
5935-00-090-8256
DEMIL
Yes - ITAR Controlled
Body Style
Straight shape, external coupling
Overall Length
0.692 inches
Overall Height
1.578 inches
Overall Width
1.578 inches
Environmental Protection
Moisture resistant and salt water resistant and vibration resistant
Unthreaded Mounting Hole Diameter
Between 0.115 inches and 0.130 inches
Center To Center Distance Between Mounting Facilities Parallel To Height
1.250 inches
Distance Between Centerlines Of Mounting Facilities Parallel To Body Width
1.250 inches
Distance From Mounting Shoulder To Front Face
Between 0.317 inches and 0.322 inches
Mating End Quantity
1
Contact Position Arrangement Style
22-35 single mating end
Contact Removability
Removable single mating end single contact grouping
Polarization Method
Key, multiple key groove
Insert Position In Deg
0.0
Shell Type
Solid
Connector Locking Method
Bayonet pin
Terminal Location
Back single mating end single contact grouping
Contact Material
Copper alloy single mating end single contact grouping
Contact Surface Treatment
Gold single mating end single contact grouping and silver single mating end single contact grouping
Terminal Type
Crimp single mating end single contact grouping
Shell Material
Aluminum alloy
Shell Surface Treatment
Cadmium and chromate
Included Contact Quantity
100 single mating end single contact grouping
Included Contact Type
Round pin single mating end single contact grouping
Precious Material And Location
Contact surface gold and contact surface silver
Precious Material And Weight
0.100 gold grains, troy and 0.100 silver grains, troy
Precious Material
Gold and silver
Test Data Document
81349-MILC38999 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Specification Data
81349-MIL-C-38999 government specification
