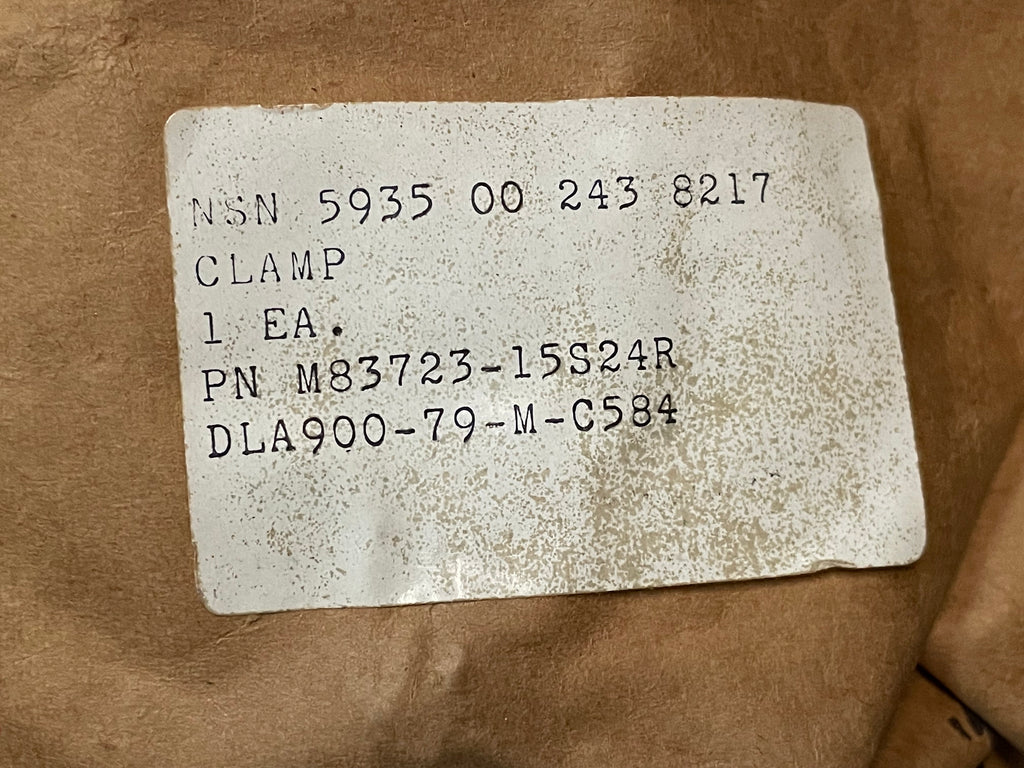

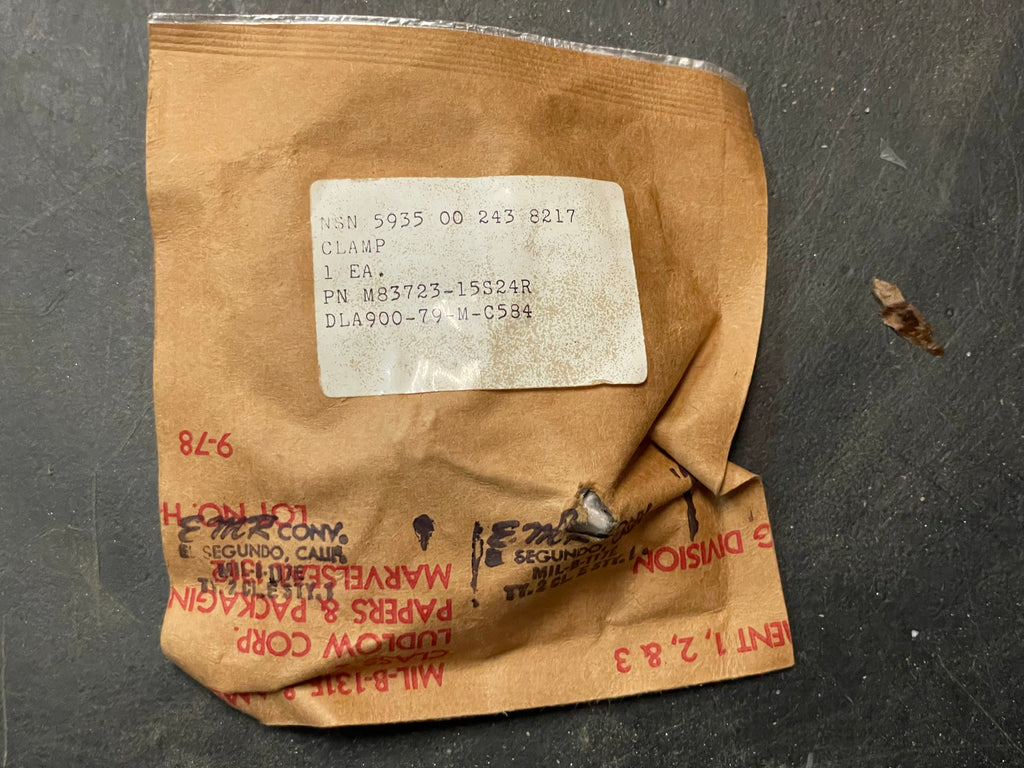

Military Specifications M83723/15S24R Electrical Connector Cable Clamp NSN:5935-00-243-8217
Regular price
$15.99

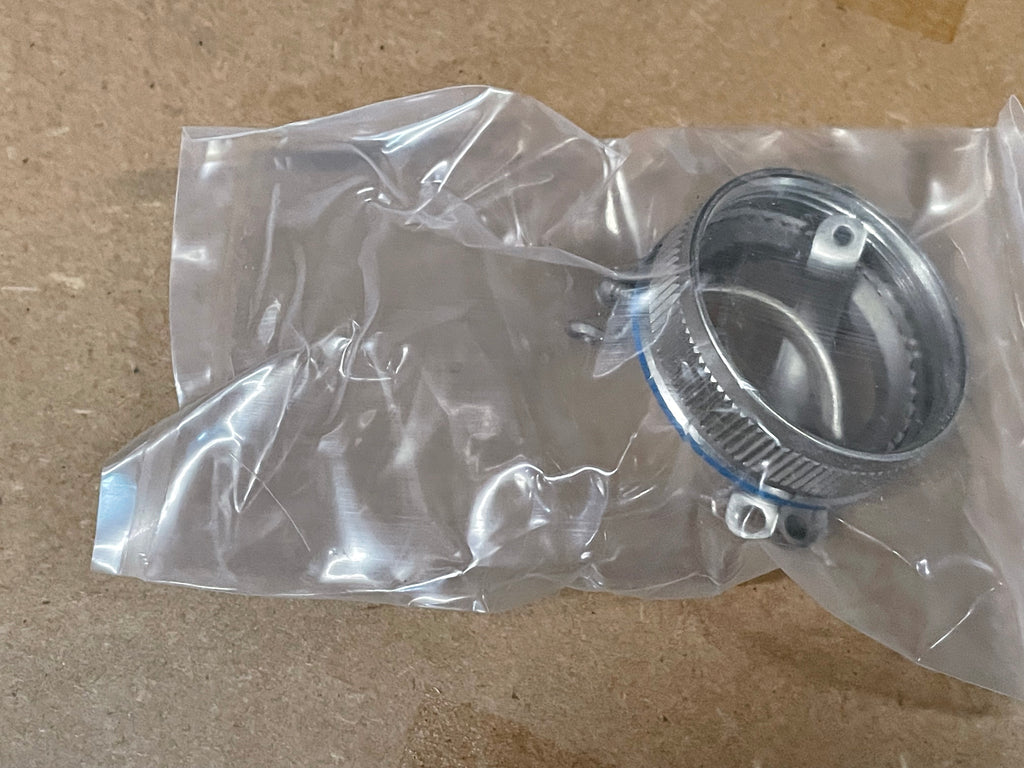

Electrical Connector Cable Clamp
NSN:5935-00-243-8217 Model:M83723/15S24RReplacements:
- 5935-00-243-8217 replaces 5935-01-048-4464
NSN Properties and Flags
NATO Stock Number
5935-00-243-8217
DEMIL
NO
Thread Class
2b
Thread Direction
Right-hand
Overall Length
Between 1.062 inches and 1.125 inches
Overall Diameter
1.700 inches
Cable Opening Diameter
Between 1.049 inches and 1.081 inches
Thread Length
0.283 inches and 0.305 inches
Cable Opening Quantity
1
Size Designation
24
Mounting Facility Type And Quantity
1 threaded coupling
Thread Size
1.438 inches
Material
Aluminum alloy
Material
Aluminum alloy
Style Designator
Double clamping action open frame type
Surface Treatment
Any acceptable
Test Data Document
81349-mil-c-83723 specification (includes engineering type bulletins, brochures, etc., that reflect specification type data in specification format; excludes commercial catalogs, industry directories, and similar trade publications, reflecting general type data on certain environmental and performance requirements and test conditions that are shown as "typical", "average", "", etc.).
Thread Series Designator
Unef
Specification Data
81349-mil-c-83723 government specification
