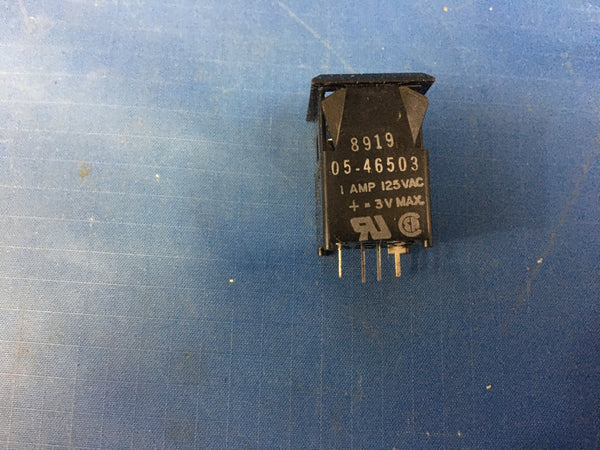

National Security Agency 05-46503 Push Switch 1A 125VAC NSN:5930-01-176-1701

Regular price $29.99

Push Switch

NSN: 5930-01-176-1701 | Model: 05-46503
ITAR Registered seal

A switch that is externally actuated by a device such as a push rod or button, which requires pushing for each actuation. The action may be momentary, with mechanical return. The actuating device may or may not be an integral part of the switch. The item may include provisions for mounting indicating lam (s) or light emitting diode(s) in the actuator. Includes items consisting of individually separable switches that are physically interlocked, that have a common actuator, or are electrically connected. Excludes light-switch; light-switch assembly; switch, beam selecting, headlight; switch, foot; switch, interlock; switch, pressure; switch, push-pull; switch, sensitive and switch assembly. For devices which start, stop, reverse, select and/or regulate the speed of a motor, see starter, motor and controller, motor.

NSN Properties and Flags
NATO Stock Number
5930-01-176-1701
DEMIL
Yes - ITAR Controlled
Body Style
Panel mount
Overall Length
0.688 inches
Overall Height
1.125 inches
Overall Width
0.688 inches
Body Height
0.930 inches
Case Material
Plastic
Maximum Voltage Rating In Volts
125.0 ac
End Application
5811-01-133-6556 status control
Inclosure Type
Fully enclosed
Mounting Method
Panel
Nonpile-up Contact Arrangement
1 pole, single throw, normally open, double make, momentary action single switch unit
Contact Load Current Rating At Maximum Rated Voltage
250.000 milliamperes resistive ac
Special Features
Yellow light emitting diode terminals provided
Precious Material And Location
Contact surfaces silver
Terminal Type And Quantity
4 printed circuit
