Electro-Craft

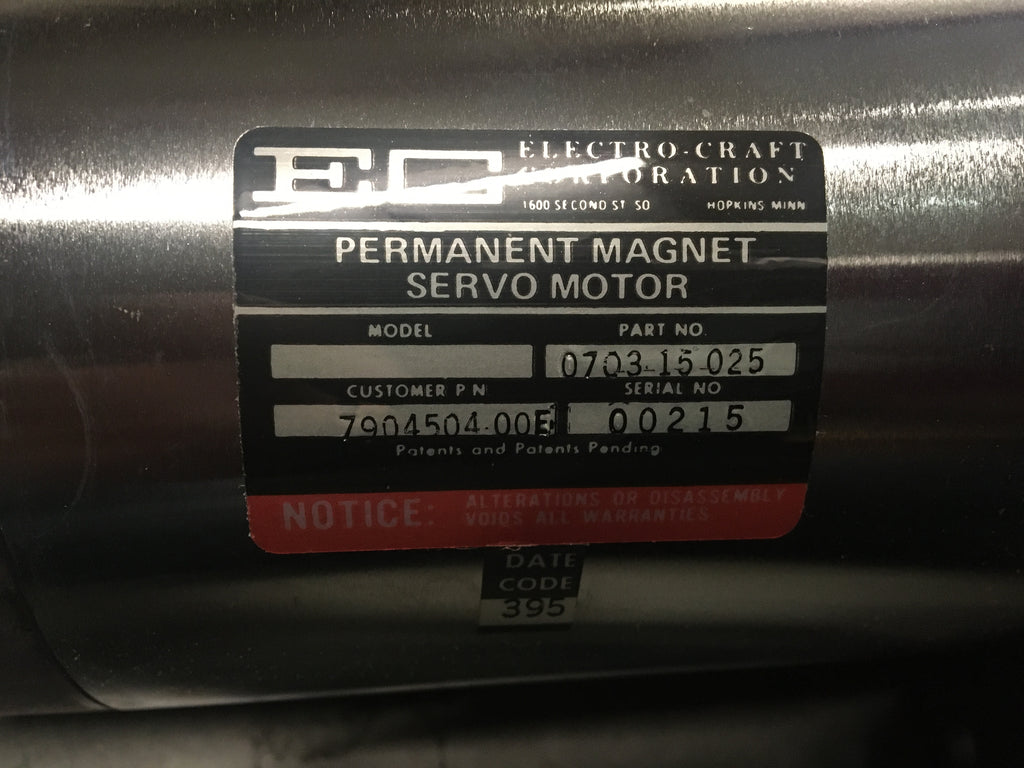

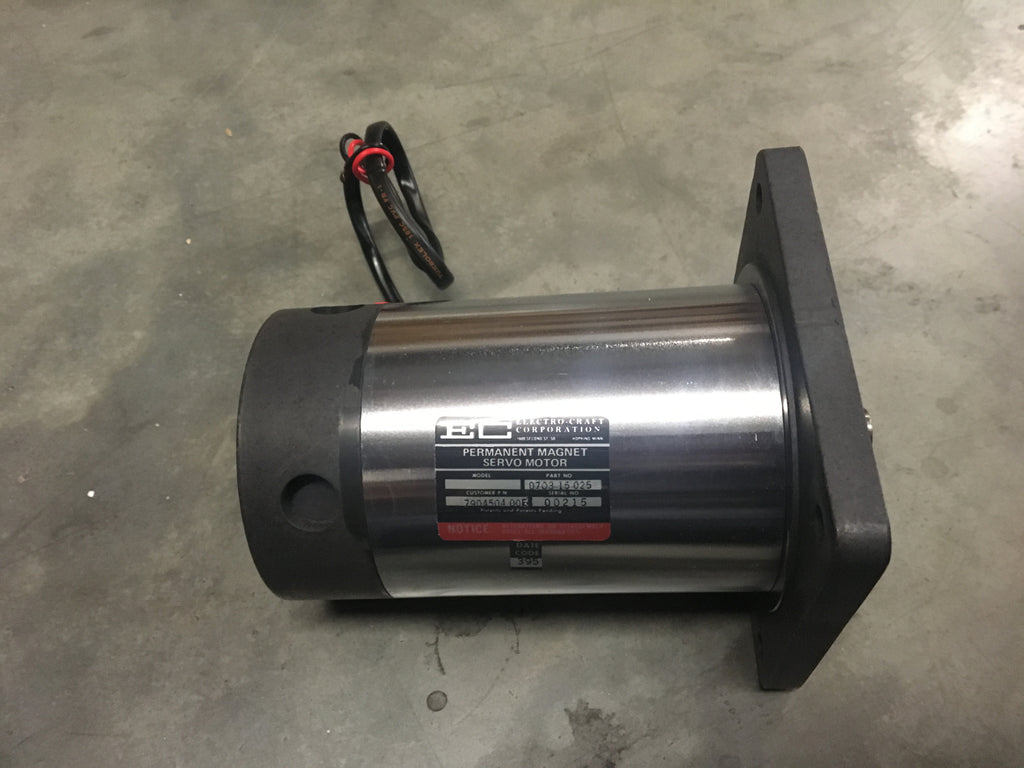

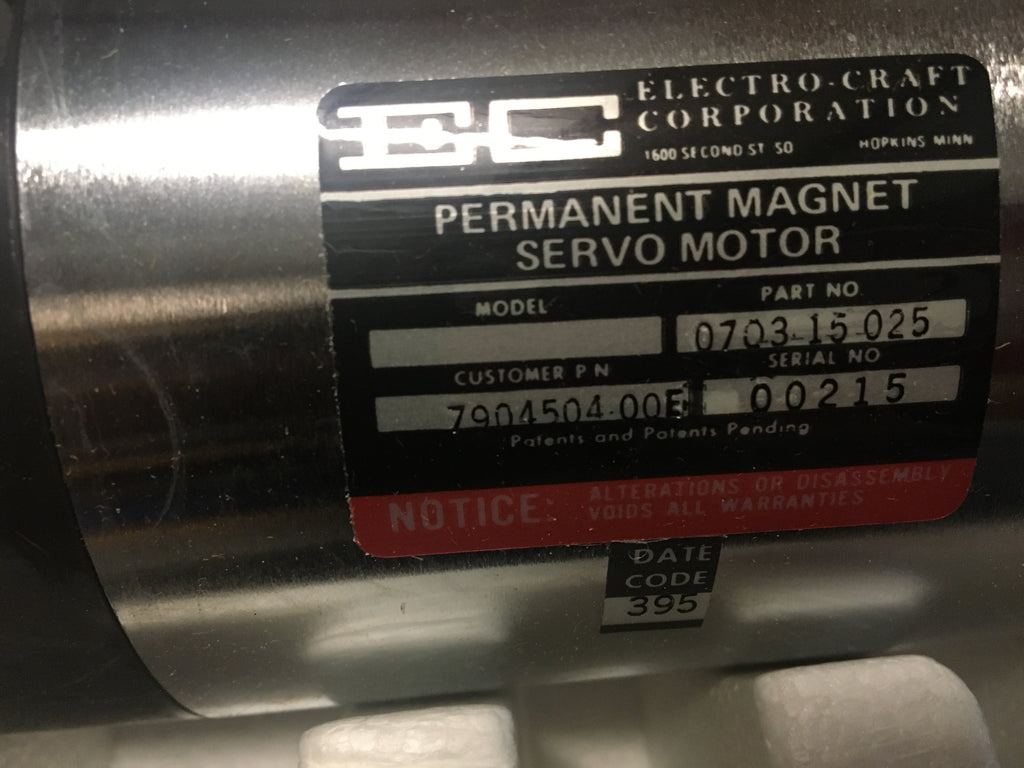

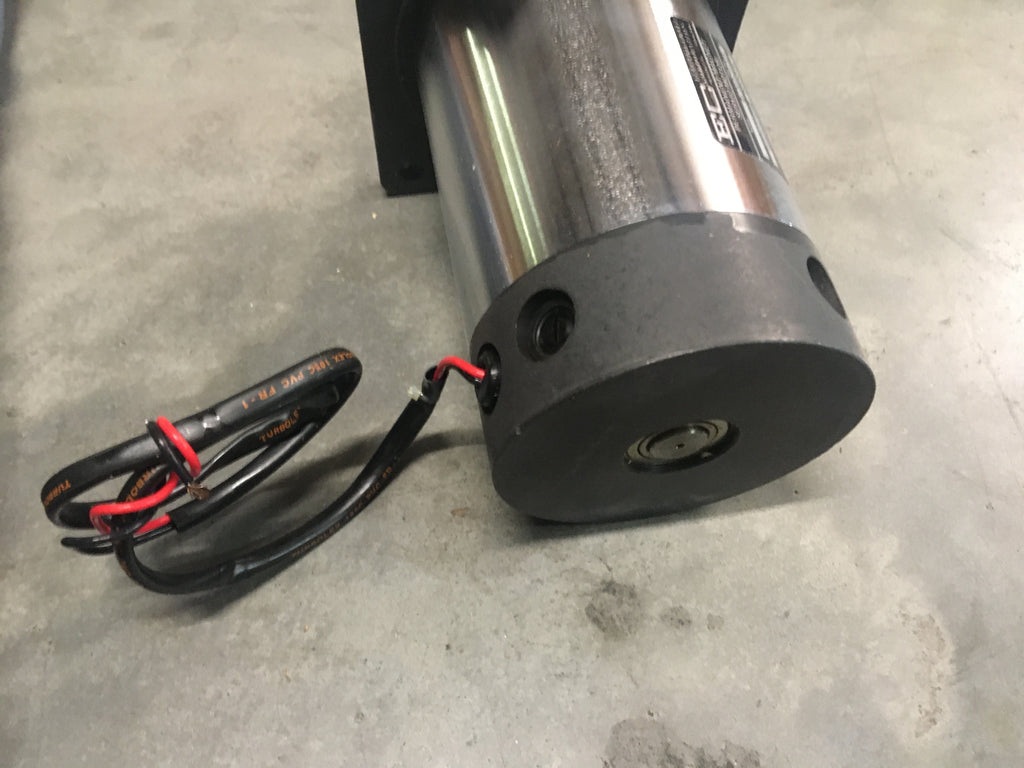

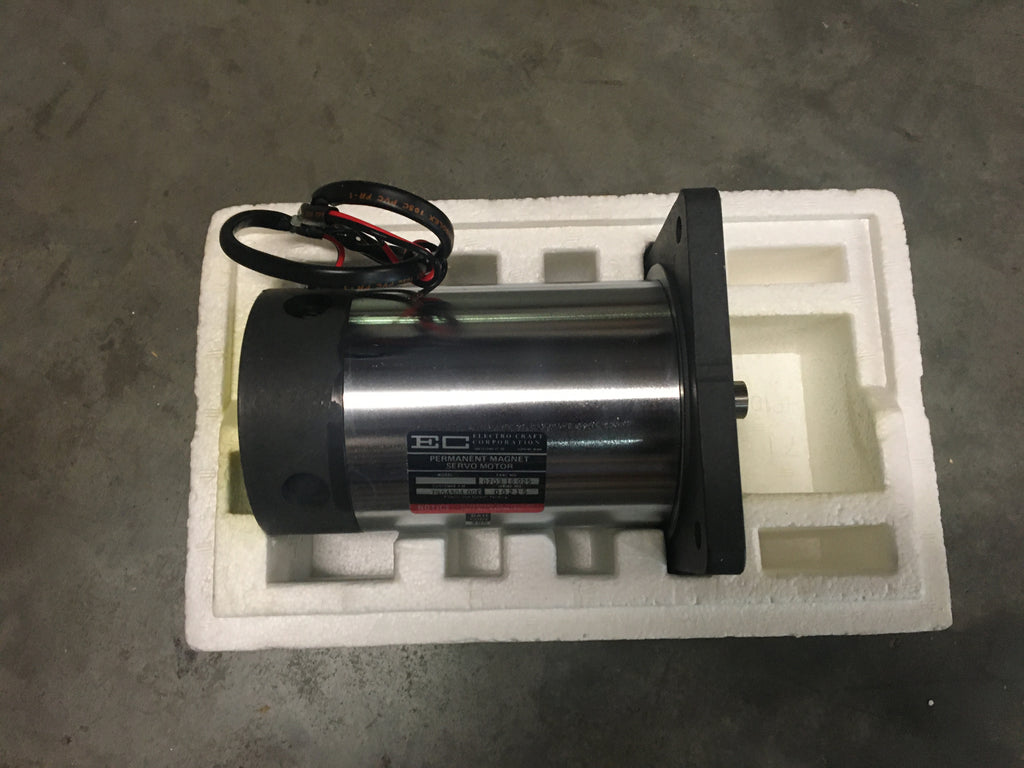

NEW Electro-Craft DC Permanent Magnet Servo Motor P/N:0703 15 025 NSN:6105-01-047-8566
Regular price
$374.99
Direct Current Motor
NSN: 6105-01-047-8566 | Model: 7904504-02A motor which is designed for operation from a direct current source. Excludes motor, engine starter, electrical. See also motor, control.
NSN Properties and Flags
NATO Stock Number

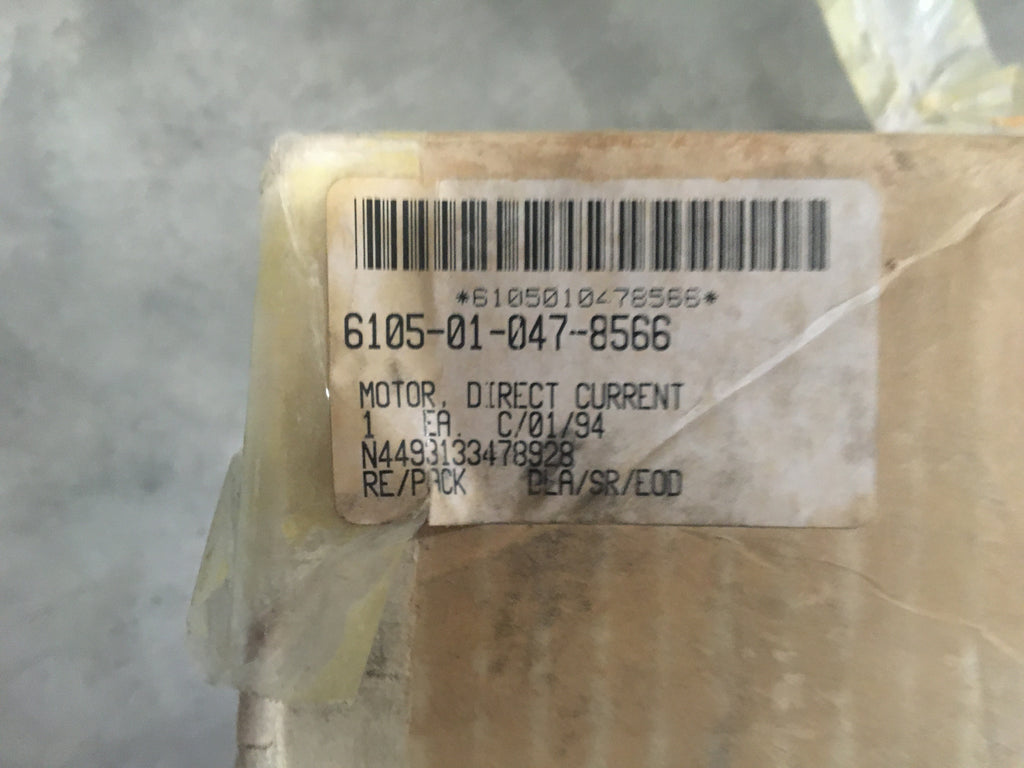

6105-01-047-8566
DEMIL
Yes - ITAR Controlled
Overall Height
5.375 inches
Overall Length
7.844 inches
Overall Width
5.375 inches
Shaft Diameter
0.6245 inches single end and 0.6250 inches single end
Flatted Portion Length
0.600 inches single end
Shaft Rotation Direction
Clockwise single end or counterclockwise single end
Duty Cycle
Continuous
Inclosure Feature
Totally enclosed
Winding Type
Permanent magnet

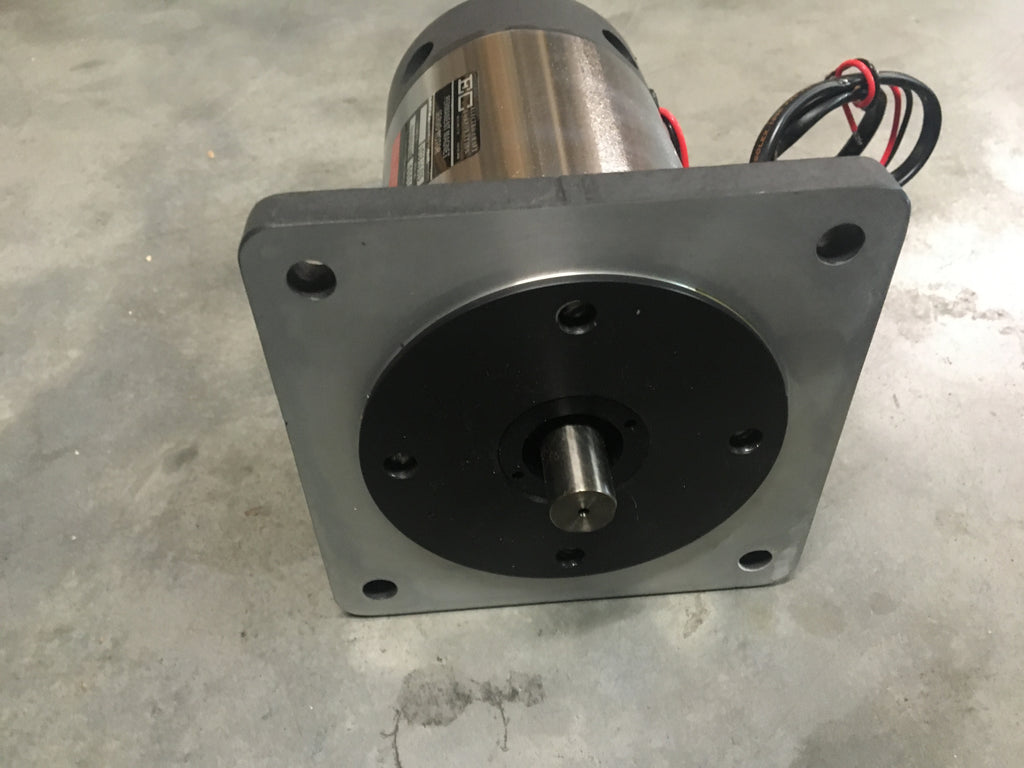

Mounting Method
Flange
Mounting Facility Type And Quantity
4 unthreaded hole
Cooling Method
Nonventilated
Torque Rating And Type
360.0 inch-ounces running and 570.0 inch-ounces stalled
Inclosure Specificationification
Commercial
Features Provided
Frame electrically grounded and horizontal mounting position and vertical mounting position
Length Of Shaft From Housing
0.600 inches single end
Tempurature Rating
-55.0 operating degrees celsius and 71.0 operating degrees celsius
Mounting Facility Circle Diameter
6.097 inches
Rotor Speed Rating In Rpm
290.0 single full load
Connection Type And Voltage Rating In Volts
24.0 line to neutral single input
Shaft End Characteristic
A5 single style single end

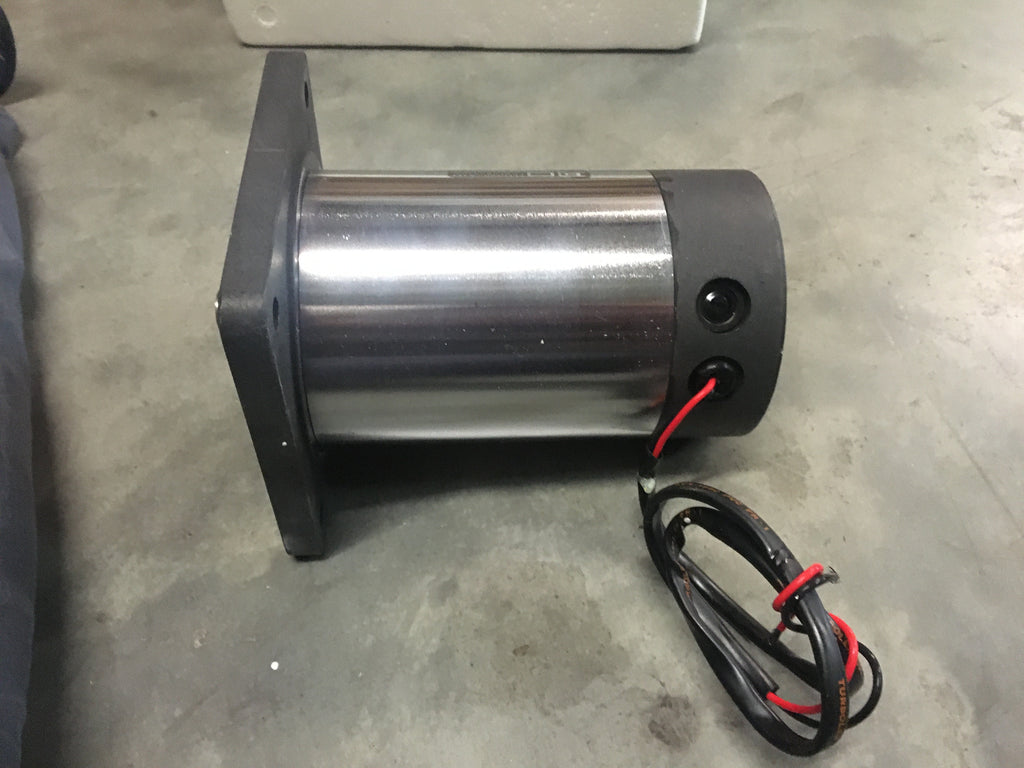

Terminal Type And Quantity
3 wire lead
