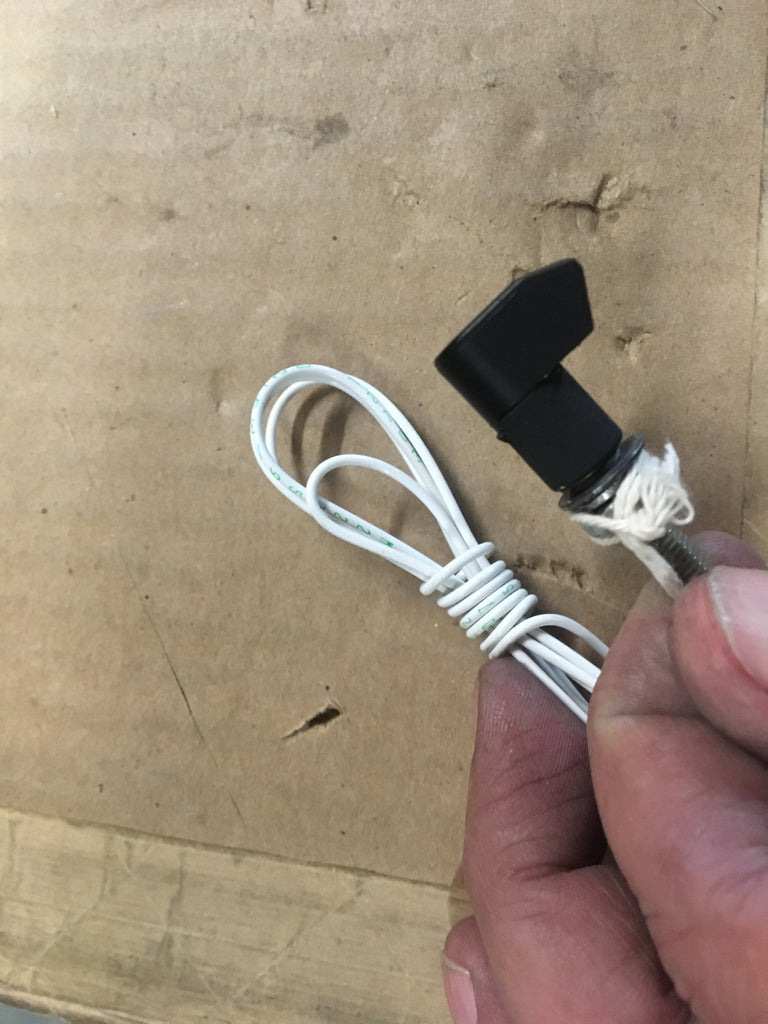

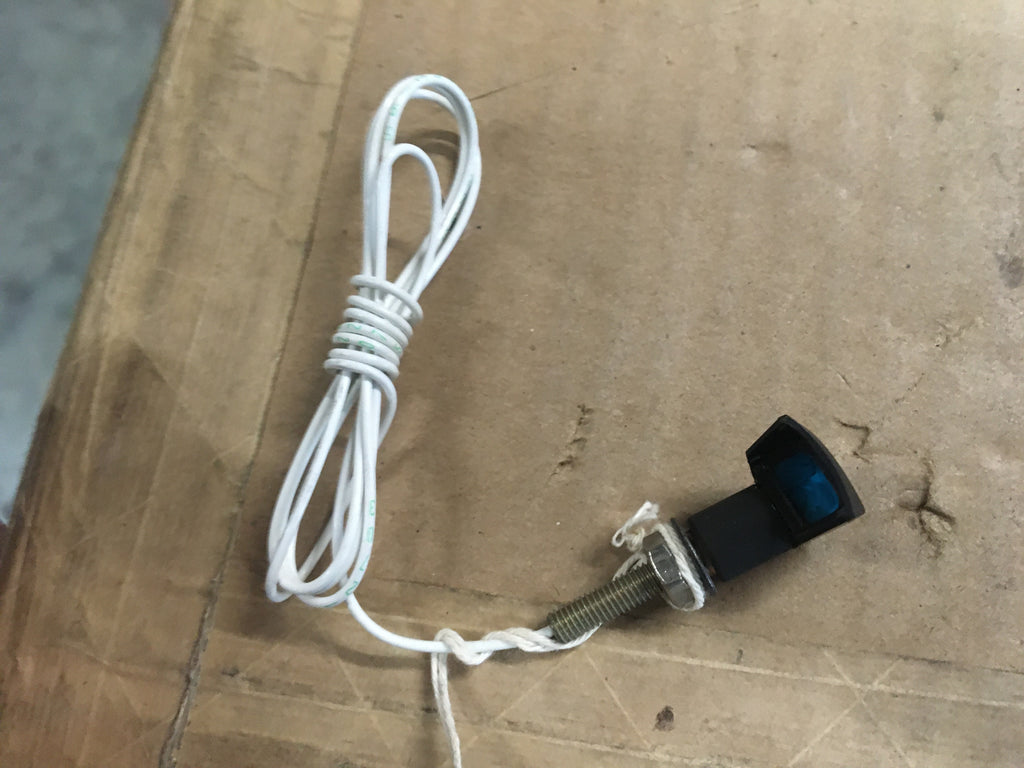

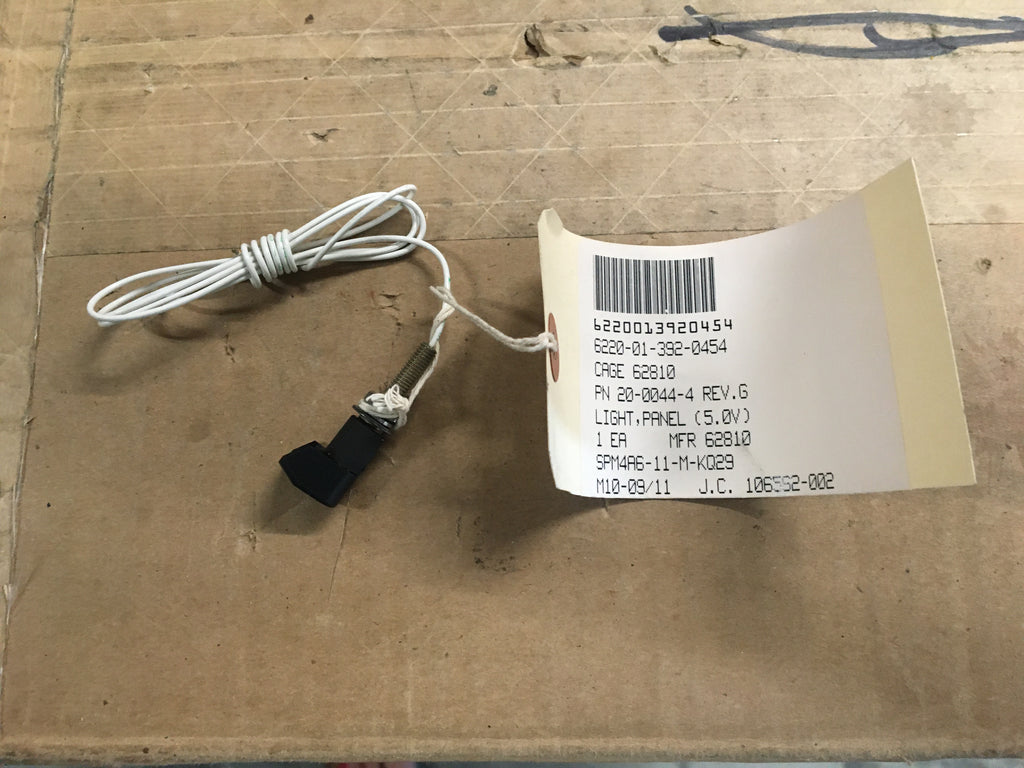

Panel Light

NSN: 6220-01-392-0454 | Model: 20-0044-4
ITAR Registered seal

A light specifically designed to be mounted on, near, or through a panel, switchboard, bulletin board, cowl, dashboard, and the like, and specifically designed to provide direct or indirect illumination thereon. It must include a shade, reflector, or other special device to direct illumination or to provide for the direction of illumination through the inherent design of the item, as in lights for edge lighted panels. It may include filters, dimming features, switches, and/or flexible gooseneck. For aircraft installed items providing illumination for map reading or general utility illumination, in addition to panel illumination, see light (1), cockpit, aircraft. For items conforming to this basic definition with the additional feature of providing illuminated indication of a specific nature concerning the circuit in which it is inserted, see light (1), indicator.

NSN Properties and Flags
NATO Stock Number
6220-01-392-0454
DEMIL
Yes - ITAR Controlled
MRC: Requirement Name: Requirement:
NAME ITEM NAME LIGHT,PANEL
ABHP OVERALL LENGTH 1.640 INCHES NOMINAL
ABKW OVERALL HEIGHT 0.620 INCHES NOMINAL
ABMK OVERALL WIDTH 0.620 INCHES NOMINAL
AEYB WIRING PROVISION METHOD INDIVIDUAL WIRE
AEYJ ILLUMINATION DIRECTING DEVICE TYPE CAP
AGAV END ITEM IDENTIFICATION ACFT, HERCULES C-130
AHHZ WIRING PROVISION LENGTH 34.000 INCHES MINIMUM AND 38.000 INCHES MAXIMUM
PRPY PROPRIETARY CHARACTERISTICS PACS
STYL STYLE DESIGNATOR A5 INSTRUMENT POST TYPE
TMQY FURNISHED ITEMS AND QUANTITY 1 FLAT WASHER AND 1 HEXAGON NUT AND 1 LOCK WASHER

This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
