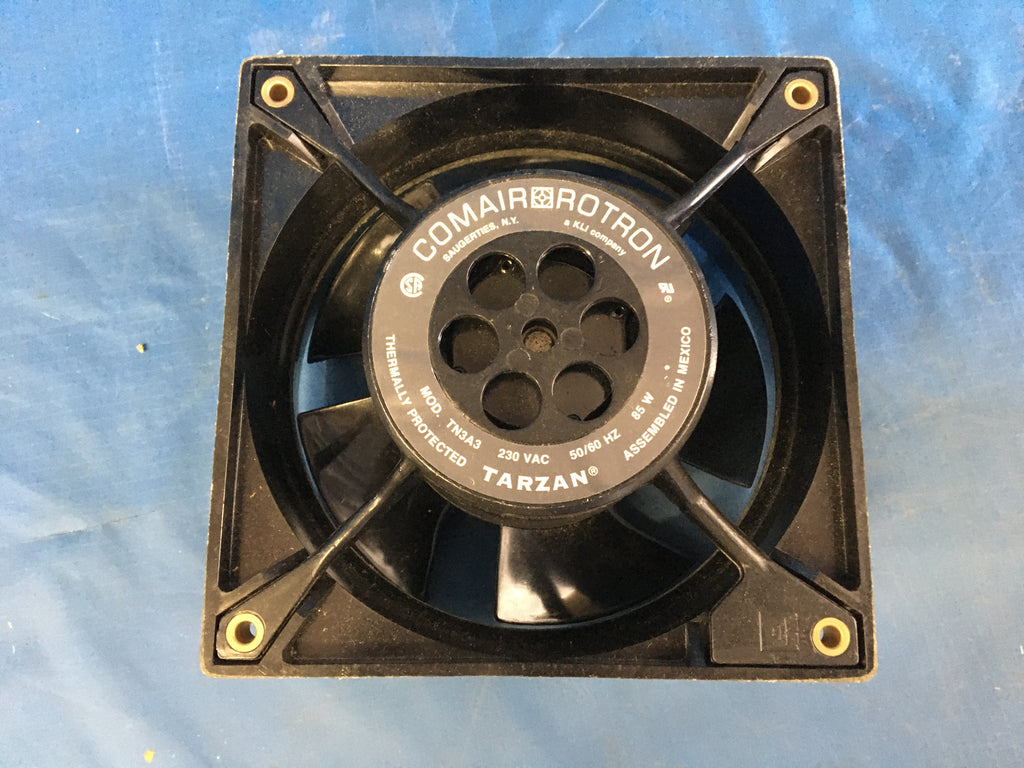

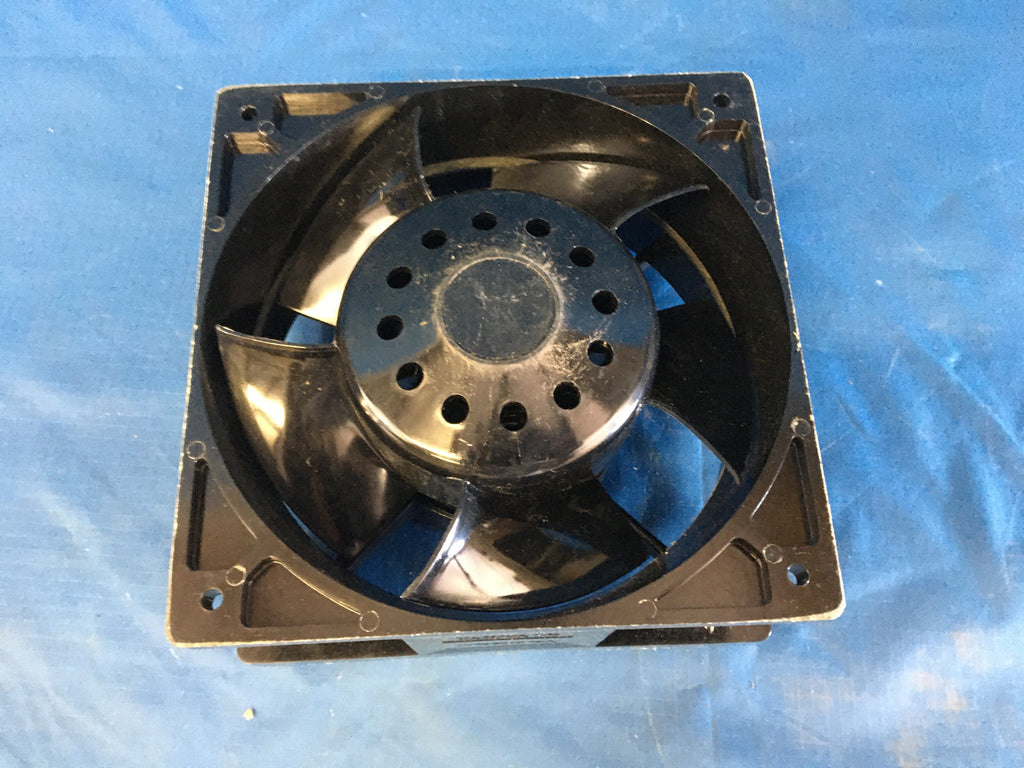

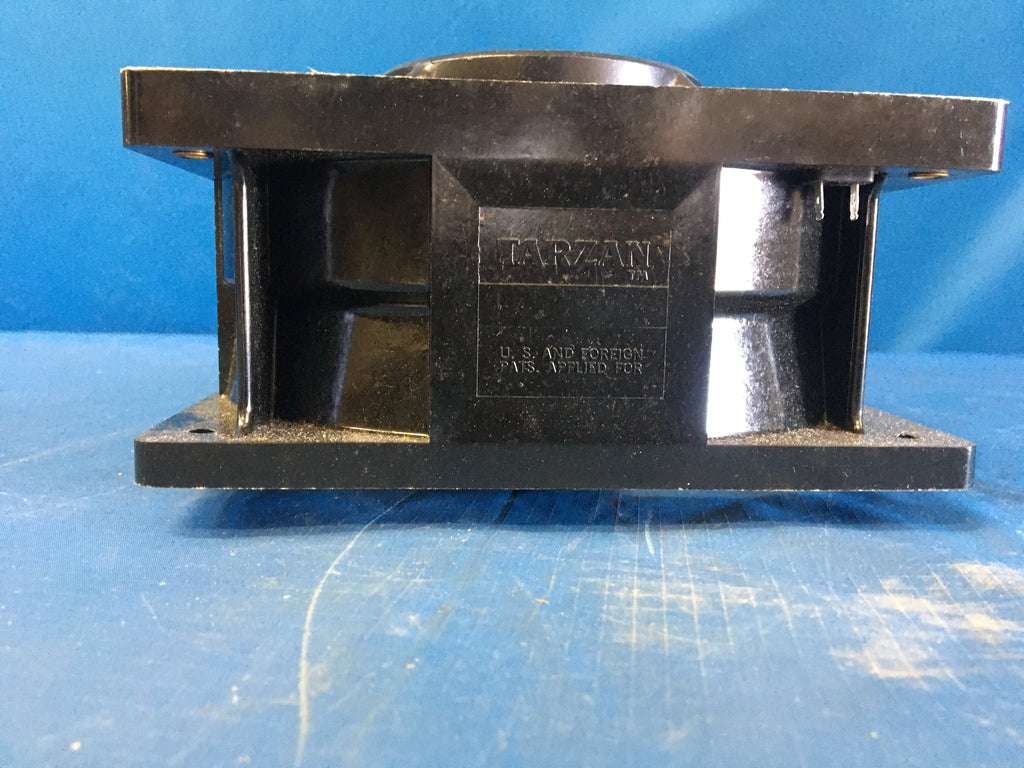

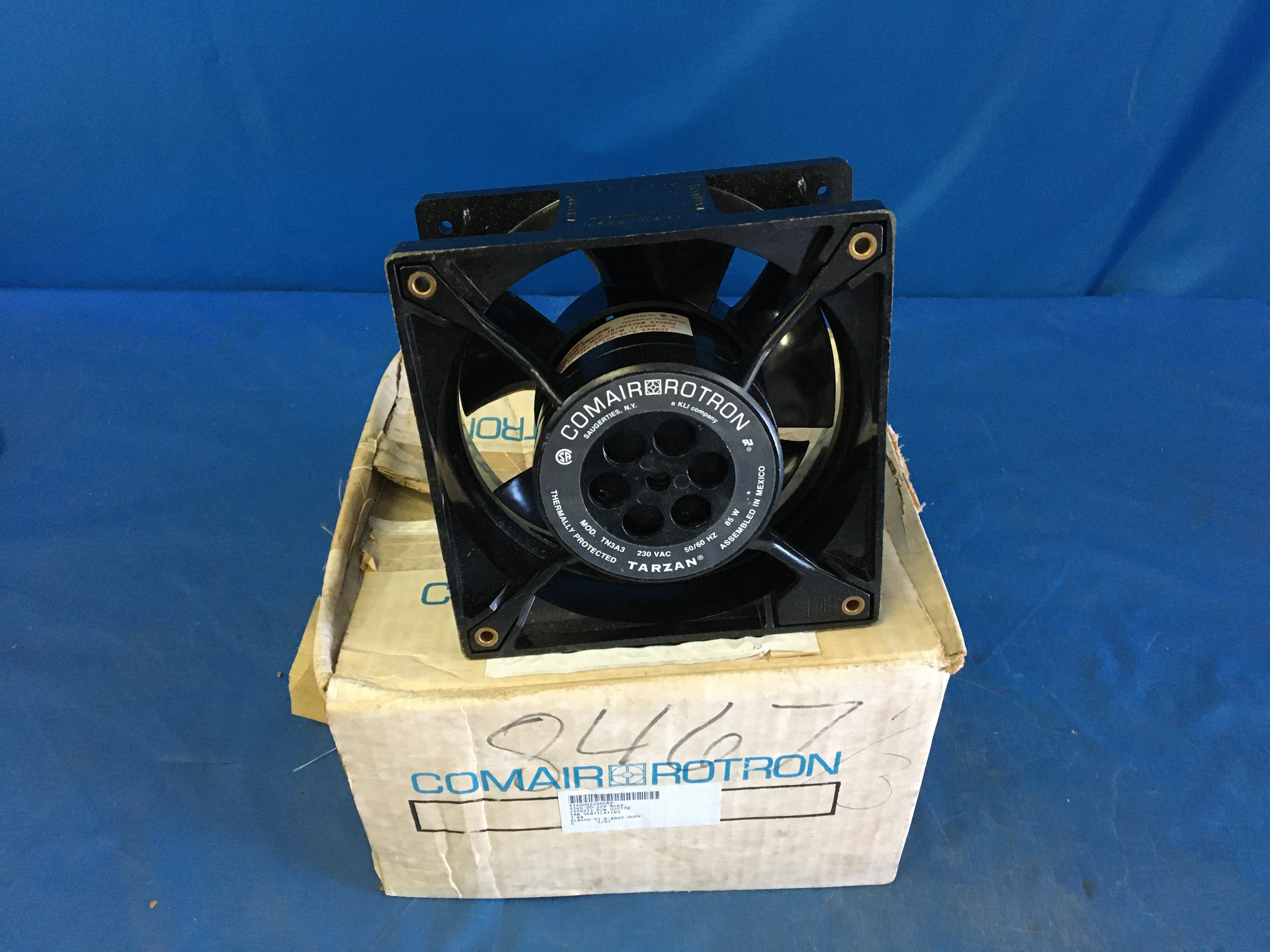

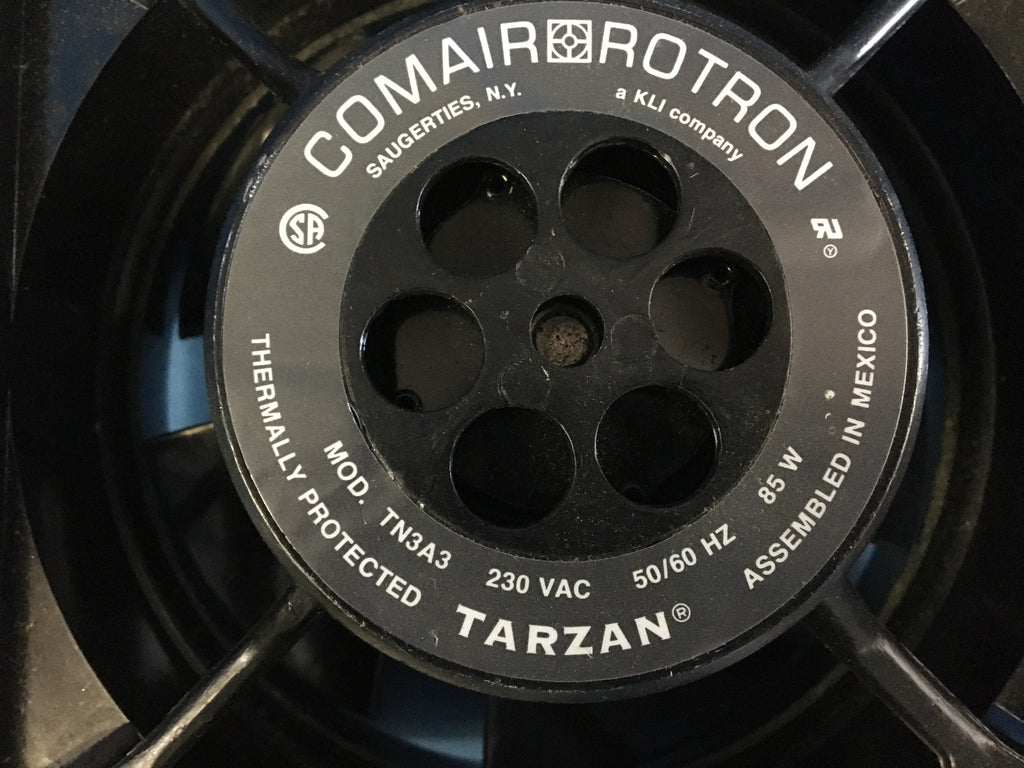

COMAIR TN3A3 Tubeaxial Fan 230VAC 85W NSN:4140-00-229-8467
Please fill out the form below for a price quote and availability on this item.
Tubeaxial Fan
NSN:4140-00-229-8467 P/N:020172 Model:44722D
A nonpositive displacement mechanical device without guide vanes and having an axial fan impeller enclosed within a tubular housing. It is designed primarily for duct installation to move air or gas axially over a wide range of volumes at medium pressures.
NSN Properties and Flags
NATO Stock Number
4140-00-229-8467
DEMIL
NO
Speed Adjustments
Single speed
Width
6.910 inches
Length
4.400 inches
Flow Direction
Inward
Ambient Tempurature At Full Rated Power
0.0 degrees celsius and 55.0 degrees celsius
Operating Speed At Rated Capacity In Rpm
2820.0 and 3350.0
Electrical Connection Type
Terminal
Static Pressure At Specificationified Air Flow Rate
0.0 inches of water
Drive Type
Direct
Prime Mover Type
Electric motor
Inclosure Type
Fully enclosed
Mounting Facility Type And Quantity
2 flange
Rotation Direction For Which Designed
Clockwise
Features Provided
Thermal protective device
Air Flow Rate
350.0 cubic feet per minute
Voltage In Volts And Current Type
230.0 ac
Prime Mover Power Rating
0.113 horsepower
Housing Inside Diameter
6.000 inches
Prime Mover Drive Shaft Bearing Type
Ball
Phase
Single
Frequency In Hertz
50.0 and 60.0
Height
6.910 inches
Material
Plastic polycarbonate blade
Style Designator
Fixed
This product is only available upon request. Contact us by e-mail or by filling out the form below for a quote.
